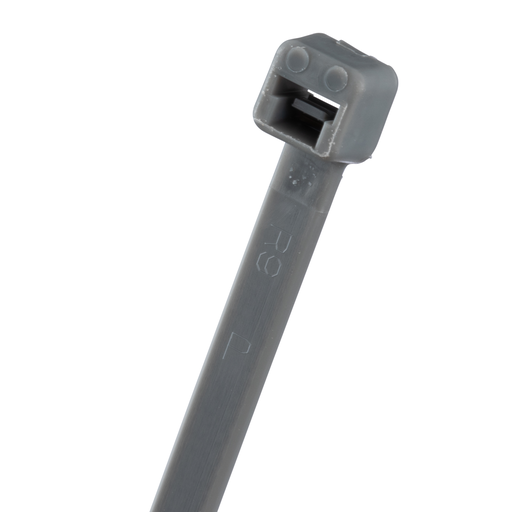

Pan-Ty® PLT2S-C8 Cable Tie, Gray, PA6.6, 7.4"L, 50lb, PK100
MFG #PLT2S-C8
$0.31 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:
Panduit PLT2S-C8 Locking Cable Ties are designed to satisfy the needs of mil spec applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 7.4" (188mm) length. Made of Nylon 6.6, are gray in color and come in packages of 100.
HESCO Part Number
PANPLT2SC8
UPC
074983547647
Manufacturer Part Number
PLT2S-C8
Manufacturer
Panduit
Pan-Ty® PLT2S-C8 Cable Tie, Gray, PA6.6, 7.4"L, 50lb, PK100
MFG #PLT2S-C8
Product Description:
Panduit PLT2S-C8 Locking Cable Ties are designed to satisfy the needs of mil spec applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 7.4" (188mm) length. Made of Nylon 6.6, are gray in color and come in packages of 100.
HESCO Part Number
PANPLT2SC8
UPC
074983547647
Manufacturer Part Number
PLT2S-C8
Manufacturer
Panduit
$0.31 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Compliant
Packaging Details
| UPC | : | 07498354764 |
| GTIN Package | : | 00074983547647 |
| Standard Package Volume Ft3 | : | 0.0321 |
| Standard Package Weight Pounds | : | 0.3400 |
| Std Package Height In | : | 1.8 |
| Std Package Height MM | : | 45.72 |
| Std Package Length In | : | 9.1 |
| Std Package Length MM | : | 231.14 |
| Std Package Width In | : | 4.8 |
| Std Package Width MM | : | 121.92 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983547642 |
| Standard Carton Volume Ft3 | : | 0.3207 |
| Standard Carton Weight Pounds | : | 3.4000 |
| Std Carton Height In | : | 5.85 |
| Std Carton Height MM | : | 148.59 |
| Std Carton Length In | : | 10.4 |
| Std Carton Length MM | : | 264.16 |
| Std Carton Width In | : | 8.1 |
| Std Carton Width MM | : | 205.74 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983547647 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 168,000 |
| Pallet Volume | : | 53.880653 |
| Pallet Weight | : | 571.2000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Costa Rica, Malaysia, United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Loop Tensile Strength (N) | : | 222 |
| Environment | : | Indoor |
| Minimum Installation Temperature (°F) | : | -4 |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| Minimum Loop Tensile Strength (lb) | : | 50 |
| Product Type | : | Premium Cable Tie |
| Body Thickness (mm) | : | 1.3 |
| Minimum Operating Temperature (°C) | : | -60 |
| Maximum Operating Temperature (°F) | : | 185 |
| Body Thickness (In.) | : | 0.052 |
| Maximum Operating Temperature (°C) | : | 85 |
| Overall Length (In.) | : | 7.4 |
| Maximum Bundle Diameter (mm) | : | 47.8 |
| Overall Length (mm) | : | 188 |
| Military Cross Reference Number | : | MS3367-1-8 |
| Color | : | Gray |
| Body Width (In.) | : | 0.19 |
| Material | : | Nylon 6.6 |
| Minimum Installation Temperature (°C) | : | -20 |
| Minimum Operating Temperature (°F) | : | -76 |
| For Use With | : | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2 |
| Maximum Bundle Diameter (In.) | : | 1.88 |
| Minimum Bundle Diameter (mm) | : | 1.5 |
| Body Width (mm) | : | 4.8 |
| Material Description | : | Nylon 6.6 |
