PLT3I-M4Y Premium Cable Tie
MFG #PLT3I-M4Y
$0.27 / E
(Must order in increments of 5000/E)
(Must order in increments of 5000/E)
Product Description:

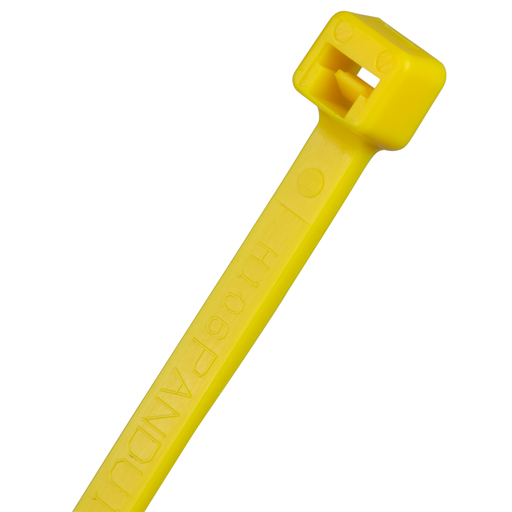

Pan-Ty® locking tie, intermediate cross section, 11.4 (290mm) length, nylon 6.6, yellow.
HESCO Part Number
PANPLT3IM4Y
UPC
074983447442
Manufacturer Part Number
PLT3I-M4Y
Manufacturer
Panduit
PLT3I-M4Y Premium Cable Tie
MFG #PLT3I-M4Y
Product Description:
Pan-Ty® locking tie, intermediate cross section, 11.4 (290mm) length, nylon 6.6, yellow.
HESCO Part Number
PANPLT3IM4Y
UPC
074983447442
Manufacturer Part Number
PLT3I-M4Y
Manufacturer
Panduit
$0.27 / E
(Must order in increments of 5000/E)
(Must order in increments of 5000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant
- No
Specifications
| Country of Origin | : | Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Environment | : | Plenum |
| Maximum Bundle Diameter (mm) | : | 76.2 |
| For Use With | : | GTS-E, GS2B-E, PTS |
| Minimum Installation Temperature (°F) | : | -4 |
| Minimum Operating Temperature (°F) | : | -76 |
| Maximum Bundle Diameter (In.) | : | 3 |
| Overall Length (mm) | : | 290 |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| Body Thickness (In.) | : | 0.052 |
| Minimum Installation Temperature (°C) | : | -20 |
| Color | : | Yellow |
| Maximum Operating Temperature (°F) | : | 185 |
| Minimum Operating Temperature (°C) | : | -60 |
| Body Width (In.) | : | 0.145 |
| Minimum Loop Tensile Strength (N) | : | 178 |
| Body Thickness (mm) | : | 1.3 |
| Application | : | General |
| Overall Length (In.) | : | 11.4 |
| Product Type | : | Premium Cable Tie |
| Minimum Bundle Diameter (mm) | : | 1.5 |
| Material | : | Nylon 6.6 |
| Minimum Loop Tensile Strength (lb) | : | 40 |
| Maximum Operating Temperature (°C) | : | 85 |
| Body Width (mm) | : | 3.7 |
| Material Description | : | Nylon 6.6 |
Packaging Details | ||
| UPC | : | 07498344744 |
| GTIN Package | : | 00074983447442 |
| Standard Package Volume Ft3 | : | 0.2572 |
| Standard Package Weight Pounds | : | 3.6000 |
| Std Package Height In | : | 2.5 |
| Std Package Height MM | : | 63.5 |
| Std Package Length In | : | 13.2 |
| Std Package Length MM | : | 335.28 |
| Std Package Width In | : | 11.9 |
| Std Package Width MM | : | 302.26 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983447447 |
| Standard Carton Volume Ft3 | : | 2.5715 |
| Standard Carton Weight Pounds | : | 36.0000 |
| Std Carton Height In | : | 18.41 |
| Std Carton Height MM | : | 467.614 |
| Std Carton Length In | : | 22.96 |
| Std Carton Length MM | : | 583.184 |
| Std Carton Width In | : | 10.46 |
| Std Carton Width MM | : | 265.684 |
| Std Ctn Qty | : | 10000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983447442 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 5,000.0000 |
| Pallet Quantity | : | 160,000 |
| Pallet Volume | : | 41.144444 |
| Pallet Weight | : | 576.0000 |
| RoHS Compliant | : | Compliant |
Videos 1
- Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant
- No
Specifications
Country of Origin : Malaysia Any Reason Not to Sell : N Product Segment : IEI Environment : Plenum Maximum Bundle Diameter (mm) : 76.2 For Use With : GTS-E, GS2B-E, PTS Minimum Installation Temperature (°F) : -4 Minimum Operating Temperature (°F) : -76 Maximum Bundle Diameter (In.) : 3 Overall Length (mm) : 290 Minimum Bundle Diameter (In.) : 0.06 Body Thickness (In.) : 0.052 Minimum Installation Temperature (°C) : -20 Color : Yellow Maximum Operating Temperature (°F) : 185 Minimum Operating Temperature (°C) : -60 Body Width (In.) : 0.145 Minimum Loop Tensile Strength (N) : 178 Body Thickness (mm) : 1.3 Application : General Overall Length (In.) : 11.4 Product Type : Premium Cable Tie Minimum Bundle Diameter (mm) : 1.5 Material : Nylon 6.6 Minimum Loop Tensile Strength (lb) : 40 Maximum Operating Temperature (°C) : 85 Body Width (mm) : 3.7 Material Description : Nylon 6.6 Packaging Details
UPC : 07498344744 GTIN Package : 00074983447442 Standard Package Volume Ft3 : 0.2572 Standard Package Weight Pounds : 3.6000 Std Package Height In : 2.5 Std Package Height MM : 63.5 Std Package Length In : 13.2 Std Package Length MM : 335.28 Std Package Width In : 11.9 Std Package Width MM : 302.26 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 1000 GTIN Carton : 50074983447447 Standard Carton Volume Ft3 : 2.5715 Standard Carton Weight Pounds : 36.0000 Std Carton Height In : 18.41 Std Carton Height MM : 467.614 Std Carton Length In : 22.96 Std Carton Length MM : 583.184 Std Carton Width In : 10.46 Std Carton Width MM : 265.684 Std Ctn Qty : 10000 Min. Order UOM : Piece EAN : 00074983447442 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 5,000.0000 Pallet Quantity : 160,000 Pallet Volume : 41.144444 Pallet Weight : 576.0000 RoHS Compliant : Compliant - Part Drawings
Part Drawings 1
Selection GuidesSelection Guides 1 - Videos 1
