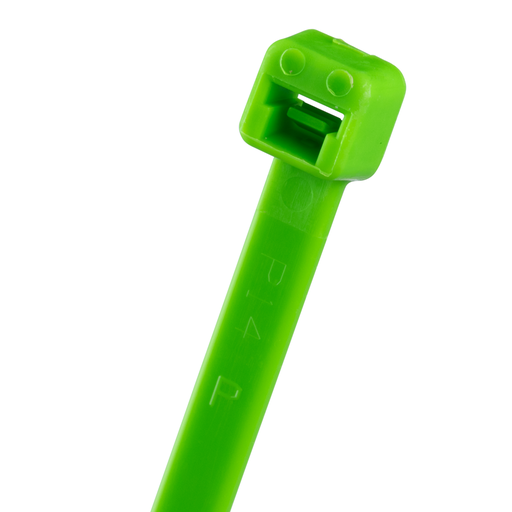

Pan-Ty® PLT3S-M55 Cable Tie, Fluor Green, PA6.6, 11.5"L, 50lb, PK1000
MFG #PLT3S-M55
$0.39 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
Product Description:
Pan-Ty® locking tie, standard cross section, 11.5 (292mm) length, nylon 6.6, fluorescent green.
HESCO Part Number
PANPLT3SM55
UPC
074983280933
Manufacturer Part Number
PLT3S-M55
Manufacturer
Panduit
Pan-Ty® PLT3S-M55 Cable Tie, Fluor Green, PA6.6, 11.5"L, 50lb, PK1000
MFG #PLT3S-M55
Product Description:
Pan-Ty® locking tie, standard cross section, 11.5 (292mm) length, nylon 6.6, fluorescent green.
HESCO Part Number
PANPLT3SM55
UPC
074983280933
Manufacturer Part Number
PLT3S-M55
Manufacturer
Panduit
$0.39 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Compliant
- No
Specifications
| Country of Origin | : | Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Operating Temperature (°F) | : | 185 |
| Minimum Loop Tensile Strength (N) | : | 222 |
| Minimum Operating Temperature (°F) | : | -76 |
| Color | : | Fluorescent Green |
| Body Thickness (In.) | : | 0.052 |
| Maximum Bundle Diameter (mm) | : | 76.2 |
| Overall Length (mm) | : | 292 |
| Body Width (In.) | : | 0.19 |
| Material | : | Nylon 6.6 |
| Minimum Installation Temperature (°F) | : | -4 |
| For Use With | : | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH |
| Body Thickness (mm) | : | 1.3 |
| Minimum Operating Temperature (°C) | : | -60 |
| Maximum Operating Temperature (°C) | : | 85 |
| Application | : | General |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| Minimum Bundle Diameter (mm) | : | 1.5 |
| Product Type | : | Premium Cable Tie |
| Environment | : | Indoor |
| Minimum Installation Temperature (°C) | : | -20 |
| Minimum Loop Tensile Strength (lb) | : | 50 |
| Maximum Bundle Diameter (In.) | : | 3 |
| Overall Length (In.) | : | 11.5 |
| Body Width (mm) | : | 4.8 |
| Material Description | : | Nylon 6.6 |
Packaging Details | ||
| UPC | : | 07498328093 |
| GTIN Package | : | 00074983280933 |
| Standard Package Volume Ft3 | : | 0.3411 |
| Standard Package Weight Pounds | : | 5.0000 |
| Std Package Height In | : | 3.8 |
| Std Package Height MM | : | 96.52 |
| Std Package Length In | : | 13.2 |
| Std Package Length MM | : | 335.28 |
| Std Package Width In | : | 12.5 |
| Std Package Width MM | : | 317.5 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983280938 |
| Standard Carton Volume Ft3 | : | 3.4111 |
| Standard Carton Weight Pounds | : | 50.0000 |
| Std Carton Height In | : | 18.41 |
| Std Carton Height MM | : | 467.614 |
| Std Carton Length In | : | 21.96 |
| Std Carton Length MM | : | 557.784 |
| Std Carton Width In | : | 14.58 |
| Std Carton Width MM | : | 370.332 |
| Std Ctn Qty | : | 10000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983280933 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 2,000.0000 |
| Pallet Quantity | : | 120,000 |
| Pallet Volume | : | 40.933715 |
| Pallet Weight | : | 600.0000 |
| RoHS Compliant | : | Compliant |
Videos 1
- Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Compliant
- No
Specifications
Country of Origin : Malaysia Any Reason Not to Sell : N Product Segment : IEI Maximum Operating Temperature (°F) : 185 Minimum Loop Tensile Strength (N) : 222 Minimum Operating Temperature (°F) : -76 Color : Fluorescent Green Body Thickness (In.) : 0.052 Maximum Bundle Diameter (mm) : 76.2 Overall Length (mm) : 292 Body Width (In.) : 0.19 Material : Nylon 6.6 Minimum Installation Temperature (°F) : -4 For Use With : GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH Body Thickness (mm) : 1.3 Minimum Operating Temperature (°C) : -60 Maximum Operating Temperature (°C) : 85 Application : General Minimum Bundle Diameter (In.) : 0.06 Minimum Bundle Diameter (mm) : 1.5 Product Type : Premium Cable Tie Environment : Indoor Minimum Installation Temperature (°C) : -20 Minimum Loop Tensile Strength (lb) : 50 Maximum Bundle Diameter (In.) : 3 Overall Length (In.) : 11.5 Body Width (mm) : 4.8 Material Description : Nylon 6.6 Packaging Details
UPC : 07498328093 GTIN Package : 00074983280933 Standard Package Volume Ft3 : 0.3411 Standard Package Weight Pounds : 5.0000 Std Package Height In : 3.8 Std Package Height MM : 96.52 Std Package Length In : 13.2 Std Package Length MM : 335.28 Std Package Width In : 12.5 Std Package Width MM : 317.5 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 1000 GTIN Carton : 50074983280938 Standard Carton Volume Ft3 : 3.4111 Standard Carton Weight Pounds : 50.0000 Std Carton Height In : 18.41 Std Carton Height MM : 467.614 Std Carton Length In : 21.96 Std Carton Length MM : 557.784 Std Carton Width In : 14.58 Std Carton Width MM : 370.332 Std Ctn Qty : 10000 Min. Order UOM : Piece EAN : 00074983280933 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 2,000.0000 Pallet Quantity : 120,000 Pallet Volume : 40.933715 Pallet Weight : 600.0000 RoHS Compliant : Compliant - Part Drawings
Part Drawings 1Part Drawings 2
