PM2H25-M Cable Tie Mount, Natural, PA 6.6, Push Barb, 0.3x0.38", PK1000
MFG #PM2H25-M
$0.26 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

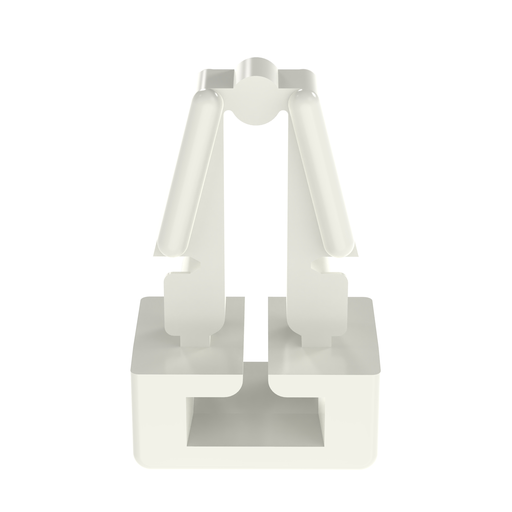

Panduit PM2H25-M Push Cable Mounts can be used where only one side of the panel is accessible and require no adhesive or additional mounting hardware. They have a maximum panel thickness limit of 0.13” (3.2mm) and require a panel hole of 0.25” (6.4mm) for mounting. For use in indoor environments and with miniature, intermediate and standard cable ties. Made of Nylon 6.6, are natural in color and come in packages of 1000.
HESCO Part Number
PANPM2H25M
UPC
074983583614
Manufacturer Part Number
PM2H25-M
Manufacturer
Panduit
PM2H25-M Cable Tie Mount, Natural, PA 6.6, Push Barb, 0.3x0.38", PK1000
MFG #PM2H25-M
Product Description:
Panduit PM2H25-M Push Cable Mounts can be used where only one side of the panel is accessible and require no adhesive or additional mounting hardware. They have a maximum panel thickness limit of 0.13” (3.2mm) and require a panel hole of 0.25” (6.4mm) for mounting. For use in indoor environments and with miniature, intermediate and standard cable ties. Made of Nylon 6.6, are natural in color and come in packages of 1000.
HESCO Part Number
PANPM2H25M
UPC
074983583614
Manufacturer Part Number
PM2H25-M
Manufacturer
Panduit
$0.26 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CE Compliant, UL Recognized: E56854, RoHS Compliant
Packaging Details
| UPC | : | 07498358361 |
| GTIN Package | : | 00074983583614 |
| Standard Package Volume Ft3 | : | 0.0753 |
| Standard Package Weight Pounds | : | 1.0000 |
| Std Package Height In | : | 2.1 |
| Std Package Height MM | : | 53.34 |
| Std Package Length In | : | 9 |
| Std Package Length MM | : | 228.6 |
| Std Package Width In | : | 7.5 |
| Std Package Width MM | : | 190.5 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983583619 |
| Standard Carton Volume Ft3 | : | 0.3765 |
| Standard Carton Weight Pounds | : | 5.0000 |
| Std Carton Height In | : | 7.15 |
| Std Carton Height MM | : | 181.61 |
| Std Carton Length In | : | 10.95 |
| Std Carton Length MM | : | 278.13 |
| Std Carton Width In | : | 9.1 |
| Std Carton Width MM | : | 231.14 |
| Std Ctn Qty | : | 5000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983583614 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 440,000 |
| Pallet Volume | : | 33.128111 |
| Pallet Weight | : | 440.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Compatible Panel Thickness (mm) | : | 3.3 |
| Environment | : | Indoor |
| Overall Width (mm) | : | 50.3 |
| Minimum Operating Temperature (°C) | : | -60 |
| Application | : | Push Mounts for use where Only One Side of the Panel is Accessible |
| Mount Method | : | Push Barb |
| Product Type | : | Cable Tie Mount |
| Maximum Compatible Panel Thickness (In.) | : | 0.13 |
| Overall Length (mm) | : | 7.6 |
| Material | : | Nylon 6.6 |
| Maximum Operating Temperature (°F) | : | 185 |
| Color | : | Natural |
| Maximum Operating Temperature (°C) | : | 85 |
| Overall Height (In.) | : | 0.62 |
| Minimum Operating Temperature (°F) | : | -76 |
| For Use With | : | Miniature, Intermediate, Standard Cross-Section Ties |
| Overall Width (In.) | : | 0.38 |
| Overall Length (In.) | : | 0.3 |
| Overall Height (mm) | : | 15.7 |
| Material Description | : | Nylon 6.6 |
Videos 1
- No
- Standards Met: CE Compliant, UL Recognized: E56854, RoHS Compliant
Packaging Details
UPC : 07498358361 GTIN Package : 00074983583614 Standard Package Volume Ft3 : 0.0753 Standard Package Weight Pounds : 1.0000 Std Package Height In : 2.1 Std Package Height MM : 53.34 Std Package Length In : 9 Std Package Length MM : 228.6 Std Package Width In : 7.5 Std Package Width MM : 190.5 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 1000 GTIN Carton : 50074983583619 Standard Carton Volume Ft3 : 0.3765 Standard Carton Weight Pounds : 5.0000 Std Carton Height In : 7.15 Std Carton Height MM : 181.61 Std Carton Length In : 10.95 Std Carton Length MM : 278.13 Std Carton Width In : 9.1 Std Carton Width MM : 231.14 Std Ctn Qty : 5000 Min. Order UOM : Piece EAN : 00074983583614 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1,000.0000 Pallet Quantity : 440,000 Pallet Volume : 33.128111 Pallet Weight : 440.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Maximum Compatible Panel Thickness (mm) : 3.3 Environment : Indoor Overall Width (mm) : 50.3 Minimum Operating Temperature (°C) : -60 Application : Push Mounts for use where Only One Side of the Panel is Accessible Mount Method : Push Barb Product Type : Cable Tie Mount Maximum Compatible Panel Thickness (In.) : 0.13 Overall Length (mm) : 7.6 Material : Nylon 6.6 Maximum Operating Temperature (°F) : 185 Color : Natural Maximum Operating Temperature (°C) : 85 Overall Height (In.) : 0.62 Minimum Operating Temperature (°F) : -76 For Use With : Miniature, Intermediate, Standard Cross-Section Ties Overall Width (In.) : 0.38 Overall Length (In.) : 0.3 Overall Height (mm) : 15.7 Material Description : Nylon 6.6 - Part Drawings
Part Drawings 1
Selection GuidesSelection Guides 1 - Videos 1
