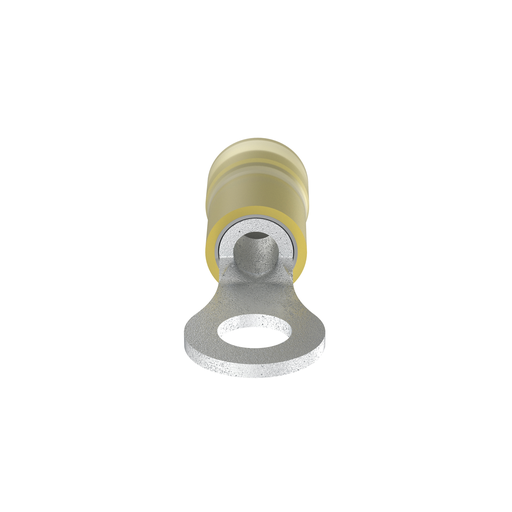

Pan-Term® PN10-10R-D Ring Terminal, Yellow, Nylon, 10-12 AWG, #10 Stud, PK500
MFG #PN10-10R-D
$0.57 / e
(Must order in increments of 500/e)
(Must order in increments of 500/e)
Product Description:
The PN10-10R-D Pan-Term® Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
HESCO Part Number
PANPN1010RD
UPC
074983800339
Manufacturer Part Number
PN10-10R-D
Manufacturer
Panduit
Pan-Term® PN10-10R-D Ring Terminal, Yellow, Nylon, 10-12 AWG, #10 Stud, PK500
MFG #PN10-10R-D
Product Description:
The PN10-10R-D Pan-Term® Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
HESCO Part Number
PANPN1010RD
UPC
074983800339
Manufacturer Part Number
PN10-10R-D
Manufacturer
Panduit
$0.57 / e
(Must order in increments of 500/e)
(Must order in increments of 500/e)
- Features
- Specifications
- Resources
- Product
- Standards Met: cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-112)
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Product Type | : | Ring Terminal |
| Flammability Rating | : | UL94-HB |
| Base Material | : | Copper |
| Stud Hole Size (mm) | : | 5 |
| Maximum Wire Insulation Diameter (mm) | : | 5.7 |
| Overall Width (mm) | : | 9.7 |
| Stud Hole Size (In.) | : | #10 |
| Minimum Metric Conductor Size (mm²) | : | 4 |
| Insulation Material | : | Nylon |
| Barrel Type | : | Grip Sleeve |
| Overall Length (mm) | : | 26.9 |
| Tongue Thickness (In.) | : | 0.04 |
| Sub Brand | : | Pan-Term® |
| Tongue Thickness (mm) | : | 1 |
| Maximum Operating Temperature (°C) | : | 105 |
| Wire Strip Length (mm) | : | 7.1 |
| Finish/Coating | : | Tin-Plated |
| Maximum Voltage (kV) | : | 0.6 |
| Maximum Metric Conductor Size (mm²) | : | 6 |
| Maximum Voltage (V) | : | 600 |
| Overall Length (In.) | : | 1.06 |
| Stud Size | : | #10 |
| Maximum Operating Temperature (°F) | : | 221 |
| Wire Strip Length (In.) | : | 9/32 |
| For Use With | : | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Tongue Width (In.) | : | 0.38 |
| Maximum Wire Insulation Diameter (In.) | : | 0.225 |
| Color Code | : | Yellow |
| Overall Width (In.) | : | 0.38 |
| Packaging Type | : | Box |
| Tongue Width (mm) | : | 9.7 |
| Copper Conductor Size | : | 12-10 AWG |
| Wire Size | : | 12-10 AWG |
Packaging Details | ||
| UPC | : | 07498380033 |
| GTIN Package | : | 00074983800339 |
| Standard Package Volume Ft3 | : | 0.0641 |
| Standard Package Weight Pounds | : | 2.6000 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 8.4 |
| Std Package Length MM | : | 213.36 |
| Std Package Width In | : | 4.45 |
| Std Package Width MM | : | 113.03 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 500 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983800339 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 200,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 1,040.0000 |
| RoHS Compliant | : | Compliant |
