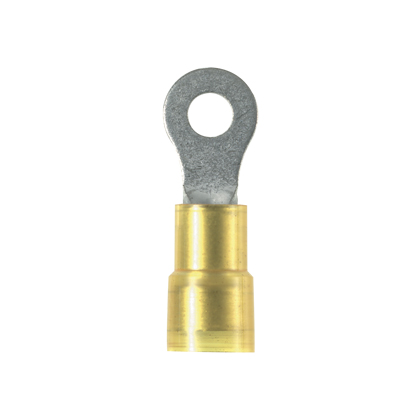

Pan-Term® PN10-10RX-L Ring Terminal, Yellow, Nylon, 12 AWG, #10 Stud, PK50
MFG #PN10-10RX-L
$2.06 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
Ring Terminal, 12 – 10 AWG, #10 stud size, nylon insulated, expanded insulation for large wire O.D.
HESCO Part Number
PANPN1010RXL
UPC
074983800728
Manufacturer Part Number
PN10-10RX-L
Manufacturer
Panduit
Pan-Term® PN10-10RX-L Ring Terminal, Yellow, Nylon, 12 AWG, #10 Stud, PK50
MFG #PN10-10RX-L
Product Description:
Ring Terminal, 12 – 10 AWG, #10 stud size, nylon insulated, expanded insulation for large wire O.D.
HESCO Part Number
PANPN1010RXL
UPC
074983800728
Manufacturer Part Number
PN10-10RX-L
Manufacturer
Panduit
$2.06 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164, CSA Certified LR31212
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Barrel Type | : | Grip Sleeve |
| Overall Width (In.) | : | 0.37 |
| Product Type | : | Ring Terminal |
| Minimum Wire Insulation Diameter (In.) | : | 0.27 |
| Insulation Diameter (In.) | : | 0.27 |
| Insulation Diameter (mm) | : | 6.9 |
| Minimum Wire Insulation Diameter (mm) | : | 6.9 |
| Overall Length (In.) | : | 1.13 |
| Finish/Coating | : | Tin-Plated |
| Maximum Metric Conductor Size (mm²) | : | 6 |
| Maximum Wire Insulation Diameter (In.) | : | 0.27 |
| Sub Brand | : | Pan-Term® |
| Minimum Metric Conductor Size (mm²) | : | 4 |
| Maximum Voltage (V) | : | 600 |
| Stud Hole Size (mm) | : | 5 |
| Insulation Material | : | Nylon |
| Packaging Type | : | Bottle |
| Flammability Rating | : | UL94V-2/UL94-HB |
| Tongue Width (In.) | : | 0.37 |
| Stud Size | : | #10 |
| Tongue Length (In.) | : | 0.57 |
| Color Code | : | Yellow |
| Wire Strip Length (In.) | : | 9/32 |
| Wire Strip Length (mm) | : | 7.1 |
| Maximum Operating Temperature (°C) | : | 105 |
| Overall Length (mm) | : | 28.7 |
| For Use With | : | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Tongue Length (mm) | : | 14.5 |
| Tongue Thickness (mm) | : | 1 |
| Maximum Wire Insulation Diameter (mm) | : | 6.9 |
| Barrel Length (In.) | : | 0.57 |
| Overall Width (mm) | : | 9.4 |
| Maximum Operating Temperature (°F) | : | 221 |
| Base Material | : | Copper |
| Tongue Width (mm) | : | 9.4 |
| Stud Hole Size (In.) | : | #10 |
| Maximum Voltage (kV) | : | 0.6 |
| Barrel Length (mm) | : | 14.5 |
| Tongue Thickness (In.) | : | 0.04 |
| CSA Temperature Rating (°C) | : | 105 |
| Copper Conductor Size | : | 12 AWG |
| Wire Size | : | 12 AWG |
Packaging Details | ||
| UPC | : | 07498380072 |
| GTIN Package | : | 00074983800728 |
| Standard Package Volume Ft3 | : | 0.0062 |
| Standard Package Weight Pounds | : | 0.3000 |
| Std Package Height In | : | 1.9 |
| Std Package Height MM | : | 48.26 |
| Std Package Length In | : | 4.35 |
| Std Package Length MM | : | 110.49 |
| Std Package Width In | : | 1.9 |
| Std Package Width MM | : | 48.26 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983800723 |
| Standard Carton Volume Ft3 | : | 0.0617 |
| Standard Carton Weight Pounds | : | 3.0000 |
| Std Carton Height In | : | 4.35 |
| Std Carton Height MM | : | 110.49 |
| Std Carton Length In | : | 10.1 |
| Std Carton Length MM | : | 256.54 |
| Std Carton Width In | : | 4.05 |
| Std Carton Width MM | : | 102.87 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983800728 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL Listed 587H E52164, CSA Certified LR31212
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Barrel Type : Grip Sleeve Overall Width (In.) : 0.37 Product Type : Ring Terminal Minimum Wire Insulation Diameter (In.) : 0.27 Insulation Diameter (In.) : 0.27 Insulation Diameter (mm) : 6.9 Minimum Wire Insulation Diameter (mm) : 6.9 Overall Length (In.) : 1.13 Finish/Coating : Tin-Plated Maximum Metric Conductor Size (mm²) : 6 Maximum Wire Insulation Diameter (In.) : 0.27 Sub Brand : Pan-Term® Minimum Metric Conductor Size (mm²) : 4 Maximum Voltage (V) : 600 Stud Hole Size (mm) : 5 Insulation Material : Nylon Packaging Type : Bottle Flammability Rating : UL94V-2/UL94-HB Tongue Width (In.) : 0.37 Stud Size : #10 Tongue Length (In.) : 0.57 Color Code : Yellow Wire Strip Length (In.) : 9/32 Wire Strip Length (mm) : 7.1 Maximum Operating Temperature (°C) : 105 Overall Length (mm) : 28.7 For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) Tongue Length (mm) : 14.5 Tongue Thickness (mm) : 1 Maximum Wire Insulation Diameter (mm) : 6.9 Barrel Length (In.) : 0.57 Overall Width (mm) : 9.4 Maximum Operating Temperature (°F) : 221 Base Material : Copper Tongue Width (mm) : 9.4 Stud Hole Size (In.) : #10 Maximum Voltage (kV) : 0.6 Barrel Length (mm) : 14.5 Tongue Thickness (In.) : 0.04 CSA Temperature Rating (°C) : 105 Copper Conductor Size : 12 AWG Wire Size : 12 AWG Packaging Details
UPC : 07498380072 GTIN Package : 00074983800728 Standard Package Volume Ft3 : 0.0062 Standard Package Weight Pounds : 0.3000 Std Package Height In : 1.9 Std Package Height MM : 48.26 Std Package Length In : 4.35 Std Package Length MM : 110.49 Std Package Width In : 1.9 Std Package Width MM : 48.26 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 50 GTIN Carton : 50074983800723 Standard Carton Volume Ft3 : 0.0617 Standard Carton Weight Pounds : 3.0000 Std Carton Height In : 4.35 Std Carton Height MM : 110.49 Std Carton Length In : 10.1 Std Carton Length MM : 256.54 Std Carton Width In : 4.05 Std Carton Width MM : 102.87 Std Ctn Qty : 500 Min. Order UOM : Piece EAN : 00074983800728 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 50.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Part Drawings
