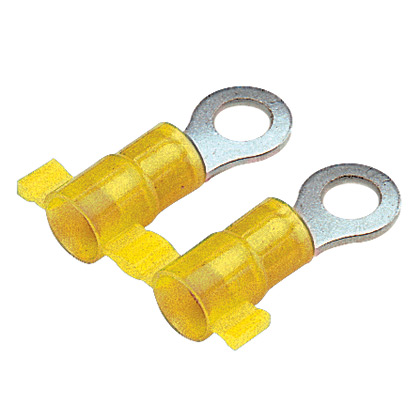

Reel Smart™ PN10-8R-2K Ring Terminal
MFG #PN10-8R-2K
$0.62 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
Product Description:
Ring Terminal, nylon insulated, metal sleeve, 12 – 10 AWG, #8 stud size.
HESCO Part Number
PANPN108R2K
UPC
074983806300
Manufacturer Part Number
PN10-8R-2K
Manufacturer
Panduit
Reel Smart™ PN10-8R-2K Ring Terminal
MFG #PN10-8R-2K
Product Description:
Ring Terminal, nylon insulated, metal sleeve, 12 – 10 AWG, #8 stud size.
HESCO Part Number
PANPN108R2K
UPC
074983806300
Manufacturer Part Number
PN10-8R-2K
Manufacturer
Panduit
$0.62 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164, CSA Certified LR31212
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Tongue Width (mm) | : | 9.7 |
| Tongue Thickness (mm) | : | 1 |
| Overall Width (mm) | : | 9.7 |
| Tongue Width (In.) | : | 0.38 |
| Base Material | : | Copper |
| Stud Hole Size (mm) | : | 4 |
| Minimum Wire Insulation Diameter (mm) | : | 5.8 |
| Wire Strip Length (mm) | : | 7.1 |
| Minimum Wire Insulation Diameter (In.) | : | 0.23 |
| Overall Width (In.) | : | 0.38 |
| Tongue Length (mm) | : | 15.5 |
| Minimum Metric Conductor Size (mm²) | : | 4 |
| Tongue Thickness (In.) | : | 0.04 |
| Insulation Diameter (In.) | : | 0.23 |
| Stud Hole Size (In.) | : | #8 |
| Packaging Type | : | Reel |
| Overall Length (In.) | : | 1.21 |
| For Use With | : | Crimp press with CA9 (CD9-3B) or CA-800EZ (CD-800-3) applicator |
| Maximum Metric Conductor Size (mm²) | : | 6 |
| Barrel Length (mm) | : | 15.5 |
| Stud Size | : | #8 |
| Sub Brand | : | Reel Smart™ |
| Finish/Coating | : | Tin-Plated |
| Overall Length (mm) | : | 30.7 |
| Maximum Voltage (V) | : | 600 |
| Barrel Length (In.) | : | 0.61 |
| Insulation Diameter (mm) | : | 5.8 |
| Product Type | : | Ring Terminal |
| Maximum Wire Insulation Diameter (mm) | : | 5.8 |
| Insulation Material | : | Nylon |
| Maximum Operating Temperature (°F) | : | 221 |
| Wire Strip Length (In.) | : | 9/32 |
| Maximum Voltage (kV) | : | 0.6 |
| Flammability Rating | : | UL94V-2/UL94-HB |
| Barrel Type | : | Grip Sleeve |
| Tongue Length (In.) | : | 0.61 |
| Maximum Wire Insulation Diameter (In.) | : | 0.23 |
| Color Code | : | Yellow |
| Maximum Operating Temperature (°C) | : | 105 |
| Copper Conductor Size | : | 14-10 AWG |
| Wire Size | : | 14-10 AWG |
Packaging Details | ||
| UPC | : | 07498380630 |
| GTIN Package | : | 00074983806300 |
| Standard Package Volume Ft3 | : | 0.9593 |
| Standard Package Weight Pounds | : | 13.3500 |
| Std Package Height In | : | 2.374 |
| Std Package Height MM | : | 60.2996 |
| Std Package Length In | : | 26.122 |
| Std Package Length MM | : | 663.4988 |
| Std Package Width In | : | 25.374 |
| Std Package Width MM | : | 644.4996 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 2000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983806300 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 2,000.0000 |
| Pallet Quantity | : | 32,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 213.6000 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL Listed 587H E52164, CSA Certified LR31212
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Tongue Width (mm) : 9.7 Tongue Thickness (mm) : 1 Overall Width (mm) : 9.7 Tongue Width (In.) : 0.38 Base Material : Copper Stud Hole Size (mm) : 4 Minimum Wire Insulation Diameter (mm) : 5.8 Wire Strip Length (mm) : 7.1 Minimum Wire Insulation Diameter (In.) : 0.23 Overall Width (In.) : 0.38 Tongue Length (mm) : 15.5 Minimum Metric Conductor Size (mm²) : 4 Tongue Thickness (In.) : 0.04 Insulation Diameter (In.) : 0.23 Stud Hole Size (In.) : #8 Packaging Type : Reel Overall Length (In.) : 1.21 For Use With : Crimp press with CA9 (CD9-3B) or CA-800EZ (CD-800-3) applicator Maximum Metric Conductor Size (mm²) : 6 Barrel Length (mm) : 15.5 Stud Size : #8 Sub Brand : Reel Smart™ Finish/Coating : Tin-Plated Overall Length (mm) : 30.7 Maximum Voltage (V) : 600 Barrel Length (In.) : 0.61 Insulation Diameter (mm) : 5.8 Product Type : Ring Terminal Maximum Wire Insulation Diameter (mm) : 5.8 Insulation Material : Nylon Maximum Operating Temperature (°F) : 221 Wire Strip Length (In.) : 9/32 Maximum Voltage (kV) : 0.6 Flammability Rating : UL94V-2/UL94-HB Barrel Type : Grip Sleeve Tongue Length (In.) : 0.61 Maximum Wire Insulation Diameter (In.) : 0.23 Color Code : Yellow Maximum Operating Temperature (°C) : 105 Copper Conductor Size : 14-10 AWG Wire Size : 14-10 AWG Packaging Details
UPC : 07498380630 GTIN Package : 00074983806300 Standard Package Volume Ft3 : 0.9593 Standard Package Weight Pounds : 13.3500 Std Package Height In : 2.374 Std Package Height MM : 60.2996 Std Package Length In : 26.122 Std Package Length MM : 663.4988 Std Package Width In : 25.374 Std Package Width MM : 644.4996 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 2000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983806300 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 2,000.0000 Pallet Quantity : 32,000 Pallet Volume : 0.000000 Pallet Weight : 213.6000 RoHS Compliant : Compliant - Part Drawings
