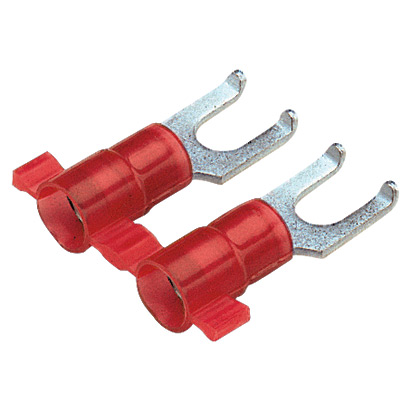

Reel Smart™ PN18-6FF-3K Flange Fork Terminal, Red, Nylon, 18-22 AWG, #6 Stud
MFG #PN18-6FF-3K
$0.49 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
Product Description:
Flanged Fork Terminal, nylon insulated, metal insulation grip sleeve, 22 - 18 AWG wire range, #6 stud size.
HESCO Part Number
PANPN186FF3K
UPC
074983806737
Manufacturer Part Number
PN18-6FF-3K
Manufacturer
Panduit
Reel Smart™ PN18-6FF-3K Flange Fork Terminal, Red, Nylon, 18-22 AWG, #6 Stud
MFG #PN18-6FF-3K
Product Description:
Flanged Fork Terminal, nylon insulated, metal insulation grip sleeve, 22 - 18 AWG wire range, #6 stud size.
HESCO Part Number
PANPN186FF3K
UPC
074983806737
Manufacturer Part Number
PN18-6FF-3K
Manufacturer
Panduit
$0.49 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Packaging Details
| UPC | : | 07498380673 |
| GTIN Package | : | 00074983806737 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 9.0000 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 3000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983806737 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 3,000.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 144.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Stud Hole Size (In.) | : | #6 |
| Minimum Metric Conductor Size (mm²) | : | 0.3 |
| Flammability Rating | : | UL94-HB |
| Packaging Type | : | Reel |
| Tongue Length (mm) | : | 10.2 |
| Tongue Length (In.) | : | 0.4 |
| Fork Type | : | Flanged Fork |
| Tongue Width (In.) | : | 0.28 |
| Base Material | : | Copper |
| Stud Hole Size (mm) | : | 3.5 |
| Color Code | : | Red |
| Maximum Metric Conductor Size (mm²) | : | 0.9 |
| Product Type | : | Fork Terminal |
| Maximum Wire Insulation Diameter (In.) | : | 0.14 |
| Tongue Thickness (In.) | : | 0.03 |
| Tongue Width (mm) | : | 7.1 |
| Overall Width (mm) | : | 7.1 |
| Overall Width (In.) | : | 0.28 |
| For Use With | : | Crimp press with CA9 (CD9-1A) or CA-800EZ (CD-800-1) applicator |
| Maximum Wire Insulation Diameter (mm) | : | 3.5 |
| Insulation Type | : | Nylon |
| Maximum Operating Temperature (°F) | : | 221 |
| Overall Length (mm) | : | 20.3 |
| Tongue Thickness (mm) | : | 0.8 |
| Maximum Voltage (kV) | : | 0.6 |
| Finish/Coating | : | Tin-Plated |
| Wire Strip Length (mm) | : | 5.6 |
| Wire Strip Length (In.) | : | 7/32 |
| Stud Size | : | #6 |
| Maximum Operating Temperature (°C) | : | 105 |
| Barrel Type | : | Grip Sleeve |
| Insulation Material | : | Nylon |
| Seam Type | : | Butted |
| Overall Length (In.) | : | 0.8 |
| Sub Brand | : | Reel Smart™ |
| Maximum Voltage (V) | : | 600 |
| Copper Conductor Size | : | 22-18 AWG |
| Wire Size | : | 22-18 AWG |
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Packaging Details
UPC : 07498380673 GTIN Package : 00074983806737 Standard Package Volume Ft3 : 0.9208 Standard Package Weight Pounds : 9.0000 Std Package Height In : 2.4 Std Package Height MM : 60.96 Std Package Length In : 26.1 Std Package Length MM : 662.94 Std Package Width In : 25.4 Std Package Width MM : 645.16 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 3000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983806737 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 3,000.0000 Pallet Quantity : 48,000 Pallet Volume : 0.000000 Pallet Weight : 144.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Stud Hole Size (In.) : #6 Minimum Metric Conductor Size (mm²) : 0.3 Flammability Rating : UL94-HB Packaging Type : Reel Tongue Length (mm) : 10.2 Tongue Length (In.) : 0.4 Fork Type : Flanged Fork Tongue Width (In.) : 0.28 Base Material : Copper Stud Hole Size (mm) : 3.5 Color Code : Red Maximum Metric Conductor Size (mm²) : 0.9 Product Type : Fork Terminal Maximum Wire Insulation Diameter (In.) : 0.14 Tongue Thickness (In.) : 0.03 Tongue Width (mm) : 7.1 Overall Width (mm) : 7.1 Overall Width (In.) : 0.28 For Use With : Crimp press with CA9 (CD9-1A) or CA-800EZ (CD-800-1) applicator Maximum Wire Insulation Diameter (mm) : 3.5 Insulation Type : Nylon Maximum Operating Temperature (°F) : 221 Overall Length (mm) : 20.3 Tongue Thickness (mm) : 0.8 Maximum Voltage (kV) : 0.6 Finish/Coating : Tin-Plated Wire Strip Length (mm) : 5.6 Wire Strip Length (In.) : 7/32 Stud Size : #6 Maximum Operating Temperature (°C) : 105 Barrel Type : Grip Sleeve Insulation Material : Nylon Seam Type : Butted Overall Length (In.) : 0.8 Sub Brand : Reel Smart™ Maximum Voltage (V) : 600 Copper Conductor Size : 22-18 AWG Wire Size : 22-18 AWG - Selection Guides
