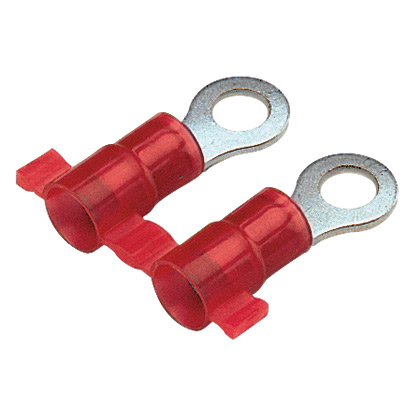

Reel Smart™ PN18-6R-3K Ring Terminal on Reel
MFG #PN18-6R-3K
$0.43 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
Product Description:
Ring Terminal, nylon insulated, metal sleeve, 22 – 18 AWG, #6 stud size.
HESCO Part Number
PANPN186R3K
UPC
074983806188
Manufacturer Part Number
PN18-6R-3K
Manufacturer
Panduit
Reel Smart™ PN18-6R-3K Ring Terminal on Reel
MFG #PN18-6R-3K
Product Description:
Ring Terminal, nylon insulated, metal sleeve, 22 – 18 AWG, #6 stud size.
HESCO Part Number
PANPN186R3K
UPC
074983806188
Manufacturer Part Number
PN18-6R-3K
Manufacturer
Panduit
$0.43 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164, CSA Certified LR31212
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Product Type | : | Ring Terminal |
| Tongue Width (mm) | : | 6.4 |
| Flammability Rating | : | UL94V-2/UL94-HB |
| Maximum Wire Insulation Diameter (mm) | : | 3.7 |
| Maximum Wire Insulation Diameter (In.) | : | 0.15 |
| Minimum Wire Insulation Diameter (mm) | : | 3.8 |
| CSA Temperature Rating (°C) | : | 221 |
| Stud Size | : | #6 |
| Wire Strip Length (In.) | : | 7/32 |
| Overall Width (In.) | : | 0.25 |
| Sub Brand | : | Reel Smart™ |
| Packaging Type | : | Reel |
| Wire Strip Length (mm) | : | 5.6 |
| Insulation Diameter (mm) | : | 3.8 |
| Insulation Diameter (In.) | : | 0.15 |
| Minimum Wire Insulation Diameter (In.) | : | 0.15 |
| Overall Length (mm) | : | 19.8 |
| Tongue Width (In.) | : | 0.25 |
| Base Material | : | Copper |
| Overall Width (mm) | : | 6.4 |
| Maximum Voltage (V) | : | 600 |
| Insulation Material | : | Nylon |
| Stud Hole Size (mm) | : | 3.5 |
| Stud Hole Size (In.) | : | #6 |
| Overall Length (In.) | : | 0.78 |
| Color Code | : | Red |
| Finish/Coating | : | Tin-Plated |
| Barrel Type | : | Grip Sleeve |
| For Use With | : | Crimp press with CA9 (CD9-1A) or CA-800EZ (CD-800-1) applicator |
| Copper Conductor Size | : | 22-18 AWG |
| Wire Size | : | 22-18 AWG |
Packaging Details | ||
| UPC | : | 07498380618 |
| GTIN Package | : | 00074983806188 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 8.4000 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 3000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983806188 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 3,000.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 134.4000 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL Listed 587H E52164, CSA Certified LR31212
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Product Type : Ring Terminal Tongue Width (mm) : 6.4 Flammability Rating : UL94V-2/UL94-HB Maximum Wire Insulation Diameter (mm) : 3.7 Maximum Wire Insulation Diameter (In.) : 0.15 Minimum Wire Insulation Diameter (mm) : 3.8 CSA Temperature Rating (°C) : 221 Stud Size : #6 Wire Strip Length (In.) : 7/32 Overall Width (In.) : 0.25 Sub Brand : Reel Smart™ Packaging Type : Reel Wire Strip Length (mm) : 5.6 Insulation Diameter (mm) : 3.8 Insulation Diameter (In.) : 0.15 Minimum Wire Insulation Diameter (In.) : 0.15 Overall Length (mm) : 19.8 Tongue Width (In.) : 0.25 Base Material : Copper Overall Width (mm) : 6.4 Maximum Voltage (V) : 600 Insulation Material : Nylon Stud Hole Size (mm) : 3.5 Stud Hole Size (In.) : #6 Overall Length (In.) : 0.78 Color Code : Red Finish/Coating : Tin-Plated Barrel Type : Grip Sleeve For Use With : Crimp press with CA9 (CD9-1A) or CA-800EZ (CD-800-1) applicator Copper Conductor Size : 22-18 AWG Wire Size : 22-18 AWG Packaging Details
UPC : 07498380618 GTIN Package : 00074983806188 Standard Package Volume Ft3 : 0.9208 Standard Package Weight Pounds : 8.4000 Std Package Height In : 2.4 Std Package Height MM : 60.96 Std Package Length In : 26.1 Std Package Length MM : 662.94 Std Package Width In : 25.4 Std Package Width MM : 645.16 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 3000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983806188 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 3,000.0000 Pallet Quantity : 48,000 Pallet Volume : 0.000000 Pallet Weight : 134.4000 RoHS Compliant : Compliant - Selection Guides
