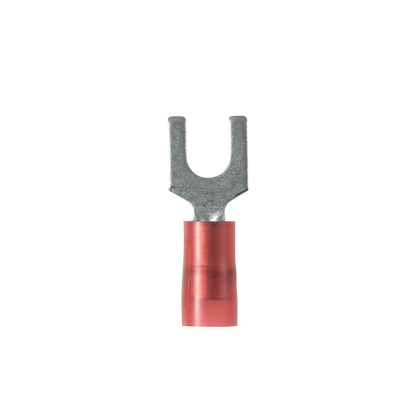

Pan-Term® PN18-8F-C Fork Terminal, Red, Nylon, 16-22 AWG, #8 Stud, PK100
MFG #PN18-8F-C
$1.14 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
The PN18-8F-C Pan-Term® Terminal is a nylon insulated, fork terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
HESCO Part Number
PANPN188FC
UPC
074983803026
Manufacturer Part Number
PN18-8F-C
Manufacturer
Panduit
Pan-Term® PN18-8F-C Fork Terminal, Red, Nylon, 16-22 AWG, #8 Stud, PK100
MFG #PN18-8F-C
Product Description:
The PN18-8F-C Pan-Term® Terminal is a nylon insulated, fork terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
HESCO Part Number
PANPN188FC
UPC
074983803026
Manufacturer Part Number
PN18-8F-C
Manufacturer
Panduit
$1.14 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Seam Type | : | Butted |
| Stud Hole Size (In.) | : | #8 |
| Overall Width (In.) | : | 0.32 |
| Tongue Width (mm) | : | 8.1 |
| Tongue Thickness (mm) | : | 0.8 |
| Sub Brand | : | Pan-Term® |
| Wire Strip Length (In.) | : | 7/32 |
| Color Code | : | Red |
| Tongue Length (mm) | : | 10.8 |
| Barrel Type | : | Grip Sleeve |
| Product Type | : | Fork Terminal |
| Insulation Type | : | Nylon |
| Minimum Metric Conductor Size (mm²) | : | 0.5 |
| Flammability Rating | : | UL94-HB |
| Overall Length (mm) | : | 21.6 |
| Maximum Wire Insulation Diameter (mm) | : | 3.7 |
| Maximum Metric Conductor Size (mm²) | : | 1.5 |
| Fork Type | : | Standard |
| Tongue Width (In.) | : | 0.32 |
| Barrel Length (mm) | : | 10.8 |
| Maximum Wire Insulation Diameter (In.) | : | 0.145 |
| Finish/Coating | : | Tin-Plated |
| Tongue Thickness (In.) | : | 0.03 |
| Maximum Operating Temperature (°C) | : | 105 |
| Stud Hole Size (mm) | : | 4 |
| Insulation Material | : | Nylon |
| For Use With | : | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Stud Size | : | #8 |
| Maximum Voltage (V) | : | 600 |
| Maximum Operating Temperature (°F) | : | 221 |
| Overall Length (In.) | : | 0.85 |
| Packaging Type | : | Bottle |
| Maximum Voltage (kV) | : | 0.6 |
| Wire Strip Length (mm) | : | 5.6 |
| Barrel Length (In.) | : | 0.43 |
| Overall Width (mm) | : | 8.1 |
| Base Material | : | Copper |
| Tongue Length (In.) | : | 0.43 |
| Wire Size | : | 22-16 AWG |
| Copper Conductor Size | : | 22-16 AWG |
Packaging Details | ||
| UPC | : | 07498380302 |
| GTIN Package | : | 00074983803026 |
| Standard Package Volume Ft3 | : | 0.0074 |
| Standard Package Weight Pounds | : | 0.2700 |
| Std Package Height In | : | 1.75 |
| Std Package Height MM | : | 44.45 |
| Std Package Length In | : | 3.6 |
| Std Package Length MM | : | 91.44 |
| Std Package Width In | : | 1.8 |
| Std Package Width MM | : | 45.72 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983803021 |
| Standard Carton Volume Ft3 | : | 0.0368 |
| Standard Carton Weight Pounds | : | 1.3500 |
| Std Carton Height In | : | 3.65 |
| Std Carton Height MM | : | 92.71 |
| Std Carton Length In | : | 9.25 |
| Std Carton Length MM | : | 234.95 |
| Std Carton Width In | : | 2.25 |
| Std Carton Width MM | : | 57.15 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983803026 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Videos 1
Videos 2
Videos 2
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Seam Type : Butted Stud Hole Size (In.) : #8 Overall Width (In.) : 0.32 Tongue Width (mm) : 8.1 Tongue Thickness (mm) : 0.8 Sub Brand : Pan-Term® Wire Strip Length (In.) : 7/32 Color Code : Red Tongue Length (mm) : 10.8 Barrel Type : Grip Sleeve Product Type : Fork Terminal Insulation Type : Nylon Minimum Metric Conductor Size (mm²) : 0.5 Flammability Rating : UL94-HB Overall Length (mm) : 21.6 Maximum Wire Insulation Diameter (mm) : 3.7 Maximum Metric Conductor Size (mm²) : 1.5 Fork Type : Standard Tongue Width (In.) : 0.32 Barrel Length (mm) : 10.8 Maximum Wire Insulation Diameter (In.) : 0.145 Finish/Coating : Tin-Plated Tongue Thickness (In.) : 0.03 Maximum Operating Temperature (°C) : 105 Stud Hole Size (mm) : 4 Insulation Material : Nylon For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) Stud Size : #8 Maximum Voltage (V) : 600 Maximum Operating Temperature (°F) : 221 Overall Length (In.) : 0.85 Packaging Type : Bottle Maximum Voltage (kV) : 0.6 Wire Strip Length (mm) : 5.6 Barrel Length (In.) : 0.43 Overall Width (mm) : 8.1 Base Material : Copper Tongue Length (In.) : 0.43 Wire Size : 22-16 AWG Copper Conductor Size : 22-16 AWG Packaging Details
UPC : 07498380302 GTIN Package : 00074983803026 Standard Package Volume Ft3 : 0.0074 Standard Package Weight Pounds : 0.2700 Std Package Height In : 1.75 Std Package Height MM : 44.45 Std Package Length In : 3.6 Std Package Length MM : 91.44 Std Package Width In : 1.8 Std Package Width MM : 45.72 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983803021 Standard Carton Volume Ft3 : 0.0368 Standard Carton Weight Pounds : 1.3500 Std Carton Height In : 3.65 Std Carton Height MM : 92.71 Std Carton Length In : 9.25 Std Carton Length MM : 234.95 Std Carton Width In : 2.25 Std Carton Width MM : 57.15 Std Ctn Qty : 500 Min. Order UOM : Piece EAN : 00074983803026 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 100.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Part Drawings
