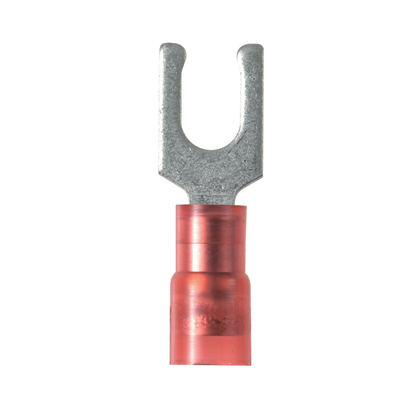

Pan-Term® PN18-8LF-C Loose Piece Forks
MFG #PN18-8LF-C
$1.21 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
Locking Fork Terminal, nylon insulated, 22 - 18 AWG, #8 stud size, standard package.
HESCO Part Number
PANPN188LFC
UPC
074983803323
Manufacturer Part Number
PN18-8LF-C
Manufacturer
Panduit
Pan-Term® PN18-8LF-C Loose Piece Forks
MFG #PN18-8LF-C
Product Description:
Locking Fork Terminal, nylon insulated, 22 - 18 AWG, #8 stud size, standard package.
HESCO Part Number
PANPN188LFC
UPC
074983803323
Manufacturer Part Number
PN18-8LF-C
Manufacturer
Panduit
$1.21 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Operating Temperature (°C) | : | 105 |
| Wire Strip Length (mm) | : | 5.6 |
| Minimum Metric Conductor Size (mm²) | : | 0.5 |
| Stud Size | : | #8 |
| Overall Width (In.) | : | 0.29 |
| Maximum Voltage (kV) | : | 0.6 |
| For Use With | : | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Tongue Thickness (mm) | : | 0.8 |
| Insulation Material | : | Nylon |
| Stud Hole Size (In.) | : | #8 |
| Seam Type | : | Butted |
| Overall Width (mm) | : | 7.4 |
| Base Material | : | Copper |
| Flammability Rating | : | UL94-HB |
| Barrel Length (mm) | : | 11.3 |
| Sub Brand | : | Pan-Term® |
| Wire Strip Length (In.) | : | 7/32 |
| Maximum Voltage (V) | : | 600 |
| Tongue Width (In.) | : | 0.29 |
| Insulation Type | : | Nylon |
| Maximum Wire Insulation Diameter (mm) | : | 3.7 |
| Tongue Thickness (In.) | : | 0.03 |
| Tongue Length (mm) | : | 11.3 |
| Barrel Length (In.) | : | 0.45 |
| Product Type | : | Locking Fork Terminal |
| Maximum Operating Temperature (°F) | : | 221 |
| Barrel Type | : | Grip Sleeve |
| Packaging Type | : | Bottle |
| Overall Length (mm) | : | 22.6 |
| Finish/Coating | : | Tin-Plated |
| Tongue Width (mm) | : | 7.4 |
| Fork Type | : | Locking Fork |
| Tongue Length (In.) | : | 0.45 |
| Overall Length (In.) | : | 0.89 |
| Maximum Metric Conductor Size (mm²) | : | 1 |
| Stud Hole Size (mm) | : | 4 |
| Maximum Wire Insulation Diameter (In.) | : | 0.145 |
| Color Code | : | Red |
| Copper Conductor Size | : | 22-18 AWG |
| Wire Size | : | 22-18 AWG |
Packaging Details | ||
| UPC | : | 07498380332 |
| GTIN Package | : | 00074983803323 |
| Standard Package Volume Ft3 | : | 0.0099 |
| Standard Package Weight Pounds | : | 0.3000 |
| Std Package Height In | : | 1.9 |
| Std Package Height MM | : | 48.26 |
| Std Package Length In | : | 4.35 |
| Std Package Length MM | : | 110.49 |
| Std Package Width In | : | 1.9 |
| Std Package Width MM | : | 48.26 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983803328 |
| Standard Carton Volume Ft3 | : | 0.0493 |
| Standard Carton Weight Pounds | : | 1.5000 |
| Std Carton Height In | : | 4.4 |
| Std Carton Height MM | : | 111.76 |
| Std Carton Length In | : | 9.9 |
| Std Carton Length MM | : | 251.46 |
| Std Carton Width In | : | 2.45 |
| Std Carton Width MM | : | 62.23 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983803323 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Maximum Operating Temperature (°C) : 105 Wire Strip Length (mm) : 5.6 Minimum Metric Conductor Size (mm²) : 0.5 Stud Size : #8 Overall Width (In.) : 0.29 Maximum Voltage (kV) : 0.6 For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) Tongue Thickness (mm) : 0.8 Insulation Material : Nylon Stud Hole Size (In.) : #8 Seam Type : Butted Overall Width (mm) : 7.4 Base Material : Copper Flammability Rating : UL94-HB Barrel Length (mm) : 11.3 Sub Brand : Pan-Term® Wire Strip Length (In.) : 7/32 Maximum Voltage (V) : 600 Tongue Width (In.) : 0.29 Insulation Type : Nylon Maximum Wire Insulation Diameter (mm) : 3.7 Tongue Thickness (In.) : 0.03 Tongue Length (mm) : 11.3 Barrel Length (In.) : 0.45 Product Type : Locking Fork Terminal Maximum Operating Temperature (°F) : 221 Barrel Type : Grip Sleeve Packaging Type : Bottle Overall Length (mm) : 22.6 Finish/Coating : Tin-Plated Tongue Width (mm) : 7.4 Fork Type : Locking Fork Tongue Length (In.) : 0.45 Overall Length (In.) : 0.89 Maximum Metric Conductor Size (mm²) : 1 Stud Hole Size (mm) : 4 Maximum Wire Insulation Diameter (In.) : 0.145 Color Code : Red Copper Conductor Size : 22-18 AWG Wire Size : 22-18 AWG Packaging Details
UPC : 07498380332 GTIN Package : 00074983803323 Standard Package Volume Ft3 : 0.0099 Standard Package Weight Pounds : 0.3000 Std Package Height In : 1.9 Std Package Height MM : 48.26 Std Package Length In : 4.35 Std Package Length MM : 110.49 Std Package Width In : 1.9 Std Package Width MM : 48.26 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983803328 Standard Carton Volume Ft3 : 0.0493 Standard Carton Weight Pounds : 1.5000 Std Carton Height In : 4.4 Std Carton Height MM : 111.76 Std Carton Length In : 9.9 Std Carton Length MM : 251.46 Std Carton Width In : 2.45 Std Carton Width MM : 62.23 Std Ctn Qty : 500 Min. Order UOM : Piece EAN : 00074983803323 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 100.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Selection Guides
