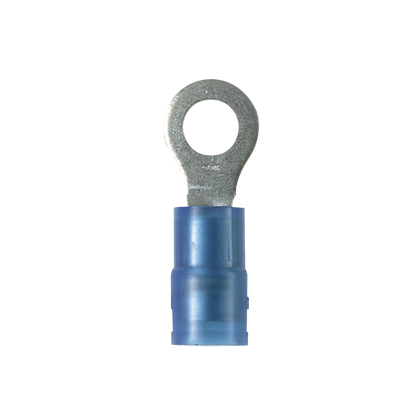

Pan-Term® PNF14-14R-C Ring Terminal
MFG #PNF14-14R-C
$1.45 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
Ring Terminal, 16 – 14 AWG, 1/4" stud size, funnel entry, nylon insulated, standard package.
HESCO Part Number
PANPNF1414RC
UPC
074983513284
Manufacturer Part Number
PNF14-14R-C
Manufacturer
Panduit
Pan-Term® PNF14-14R-C Ring Terminal
MFG #PNF14-14R-C
Product Description:
Ring Terminal, 16 – 14 AWG, 1/4" stud size, funnel entry, nylon insulated, standard package.
HESCO Part Number
PANPNF1414RC
UPC
074983513284
Manufacturer Part Number
PNF14-14R-C
Manufacturer
Panduit
$1.45 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164, CSA Certified LR31212
- No
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Flammability Rating | : | UL94V-2/UL94-HB |
| Maximum Operating Temperature (°C) | : | 105 |
| Maximum Operating Temperature (°F) | : | 221 |
| Wire Strip Length (mm) | : | 5.6 |
| Overall Length (In.) | : | 1.06 |
| Insulation Diameter (In.) | : | 0.16 |
| For Use With | : | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Stud Hole Size (In.) | : | 1/4 |
| Tongue Width (In.) | : | 0.46 |
| Maximum Voltage (kV) | : | 0.6 |
| Overall Length (mm) | : | 26.9 |
| Minimum Wire Insulation Diameter (In.) | : | 0.16 |
| Minimum Wire Insulation Diameter (mm) | : | 4.1 |
| Barrel Type | : | Grip Sleeve |
| Stud Hole Size (mm) | : | 6 |
| CSA Temperature Rating (°C) | : | 221 |
| Insulation Diameter (mm) | : | 4.1 |
| Overall Width (In.) | : | 0.46 |
| Barrel Length (In.) | : | 0.53 |
| Barrel Length (mm) | : | 13.5 |
| Minimum Operating Temperature (°C) | : | 105 |
| Product Type | : | Ring Terminal |
| Finish/Coating | : | Tin-Plated |
| Sub Brand | : | Pan-Term® |
| Maximum Wire Insulation Diameter (mm) | : | 4.1 |
| Tongue Thickness (mm) | : | 8.1 |
| Color Code | : | Blue |
| Tongue Length (In.) | : | 0.53 |
| Base Material | : | Copper |
| Tongue Width (mm) | : | 11.7 |
| Stud Size | : | 1/4" |
| Maximum Voltage (V) | : | 600 |
| Maximum Wire Insulation Diameter (In.) | : | 0.16 |
| Tongue Thickness (In.) | : | 0.32 |
| Overall Width (mm) | : | 11.7 |
| Packaging Type | : | Bottle |
| Wire Strip Length (In.) | : | 7/32 |
| Tongue Length (mm) | : | 13.5 |
| Insulation Material | : | Nylon |
| Copper Conductor Size | : | 16-14 AWG |
| Wire Size | : | 16-14 AWG |
Packaging Details | ||
| UPC | : | 07498351328 |
| GTIN Package | : | 00074983513284 |
| Standard Package Volume Ft3 | : | 0.0099 |
| Standard Package Weight Pounds | : | 0.6700 |
| Std Package Height In | : | 1.9 |
| Std Package Height MM | : | 48.26 |
| Std Package Length In | : | 4.35 |
| Std Package Length MM | : | 110.49 |
| Std Package Width In | : | 1.95 |
| Std Package Width MM | : | 49.53 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983513289 |
| Standard Carton Volume Ft3 | : | 0.0493 |
| Standard Carton Weight Pounds | : | 3.3500 |
| Std Carton Height In | : | 4.45 |
| Std Carton Height MM | : | 113.03 |
| Std Carton Length In | : | 9.9 |
| Std Carton Length MM | : | 251.46 |
| Std Carton Width In | : | 2.2 |
| Std Carton Width MM | : | 55.88 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983513284 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | Y |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL Listed 587H E52164, CSA Certified LR31212
- No
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Flammability Rating : UL94V-2/UL94-HB Maximum Operating Temperature (°C) : 105 Maximum Operating Temperature (°F) : 221 Wire Strip Length (mm) : 5.6 Overall Length (In.) : 1.06 Insulation Diameter (In.) : 0.16 For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) Stud Hole Size (In.) : 1/4 Tongue Width (In.) : 0.46 Maximum Voltage (kV) : 0.6 Overall Length (mm) : 26.9 Minimum Wire Insulation Diameter (In.) : 0.16 Minimum Wire Insulation Diameter (mm) : 4.1 Barrel Type : Grip Sleeve Stud Hole Size (mm) : 6 CSA Temperature Rating (°C) : 221 Insulation Diameter (mm) : 4.1 Overall Width (In.) : 0.46 Barrel Length (In.) : 0.53 Barrel Length (mm) : 13.5 Minimum Operating Temperature (°C) : 105 Product Type : Ring Terminal Finish/Coating : Tin-Plated Sub Brand : Pan-Term® Maximum Wire Insulation Diameter (mm) : 4.1 Tongue Thickness (mm) : 8.1 Color Code : Blue Tongue Length (In.) : 0.53 Base Material : Copper Tongue Width (mm) : 11.7 Stud Size : 1/4" Maximum Voltage (V) : 600 Maximum Wire Insulation Diameter (In.) : 0.16 Tongue Thickness (In.) : 0.32 Overall Width (mm) : 11.7 Packaging Type : Bottle Wire Strip Length (In.) : 7/32 Tongue Length (mm) : 13.5 Insulation Material : Nylon Copper Conductor Size : 16-14 AWG Wire Size : 16-14 AWG Packaging Details
UPC : 07498351328 GTIN Package : 00074983513284 Standard Package Volume Ft3 : 0.0099 Standard Package Weight Pounds : 0.6700 Std Package Height In : 1.9 Std Package Height MM : 48.26 Std Package Length In : 4.35 Std Package Length MM : 110.49 Std Package Width In : 1.95 Std Package Width MM : 49.53 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983513289 Standard Carton Volume Ft3 : 0.0493 Standard Carton Weight Pounds : 3.3500 Std Carton Height In : 4.45 Std Carton Height MM : 113.03 Std Carton Length In : 9.9 Std Carton Length MM : 251.46 Std Carton Width In : 2.2 Std Carton Width MM : 55.88 Std Ctn Qty : 500 Min. Order UOM : Piece EAN : 00074983513284 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : Y Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 100.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Selection Guides
