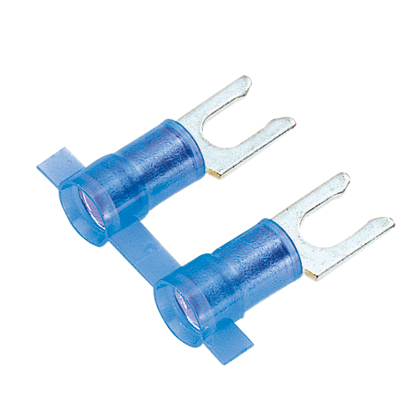

Reel Smart™ PNF14-6LF-3K Terminals on a Reel
MFG #PNF14-6LF-3K
$0.53 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
Product Description:
Locking Fork Terminal, nylon insulated, funnel entry, metal insulation grip sleeve, 16 - 14 AWG wire range, #6 stud size.
HESCO Part Number
PANPNF146LF3K
UPC
074983811601
Manufacturer Part Number
PNF14-6LF-3K
Manufacturer
Panduit
Reel Smart™ PNF14-6LF-3K Terminals on a Reel
MFG #PNF14-6LF-3K
Product Description:
Locking Fork Terminal, nylon insulated, funnel entry, metal insulation grip sleeve, 16 - 14 AWG wire range, #6 stud size.
HESCO Part Number
PANPNF146LF3K
UPC
074983811601
Manufacturer Part Number
PNF14-6LF-3K
Manufacturer
Panduit
$0.53 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
- No
Packaging Details
| UPC | : | 07498381160 |
| GTIN Package | : | 00074983811601 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 9.6000 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 3000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983811601 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 3,000.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 153.6000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Metric Conductor Size (mm²) | : | 1.5 |
| Fork Type | : | Locking Fork |
| Overall Width (In.) | : | 0.25 |
| Base Material | : | Copper |
| Inside Diameter (mm) | : | 2 |
| Seam Type | : | Butted |
| Maximum Metric Conductor Size (mm²) | : | 2.5 |
| Tongue Length (mm) | : | 13.6 |
| Flammability Rating | : | UL94-HB |
| Inside Diameter (In.) | : | 0.08 |
| Outer Diameter (In.) | : | 0.16 |
| Sub Brand | : | Reel Smart™ |
| Product Type | : | Locking Fork Terminal |
| Overall Width (mm) | : | 6.4 |
| Tongue Width (mm) | : | 6.4 |
| Stud Hole Size (In.) | : | #6 |
| Insulation Material | : | Nylon |
| For Use With | : | Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator |
| Maximum Wire Insulation Diameter (In.) | : | 0.162 |
| Overall Length (In.) | : | 0.85 |
| Maximum Operating Temperature (°C) | : | 105 |
| Maximum Voltage (kV) | : | 0.6 |
| Tongue Length (In.) | : | 0.54 |
| Finish/Coating | : | Tin-Plated |
| Maximum Wire Insulation Diameter (mm) | : | 4.1 |
| Outer Diameter (mm) | : | 4.1 |
| Overall Length (mm) | : | 21.6 |
| Color Code | : | Blue |
| Packaging Type | : | Reel |
| Maximum Operating Temperature (°F) | : | 221 |
| Stud Hole Size (mm) | : | 3.5 |
| Wire Strip Length (In.) | : | 1/4 |
| Maximum Voltage (V) | : | 600 |
| Insulation Type | : | Nylon |
| Wire Strip Length (mm) | : | 6.4 |
| Barrel Type | : | Funnel Entry |
| Tongue Thickness (In.) | : | 0.03 |
| Tongue Thickness (mm) | : | 0.8 |
| Tongue Width (In.) | : | 0.25 |
| Stud Size | : | #6 |
| Copper Conductor Size | : | 16-14 AWG |
| Wire Size | : | 16-14 AWG |
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
- No
Packaging Details
UPC : 07498381160 GTIN Package : 00074983811601 Standard Package Volume Ft3 : 0.9208 Standard Package Weight Pounds : 9.6000 Std Package Height In : 2.4 Std Package Height MM : 60.96 Std Package Length In : 26.1 Std Package Length MM : 662.94 Std Package Width In : 25.4 Std Package Width MM : 645.16 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 3000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983811601 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 3,000.0000 Pallet Quantity : 48,000 Pallet Volume : 0.000000 Pallet Weight : 153.6000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Minimum Metric Conductor Size (mm²) : 1.5 Fork Type : Locking Fork Overall Width (In.) : 0.25 Base Material : Copper Inside Diameter (mm) : 2 Seam Type : Butted Maximum Metric Conductor Size (mm²) : 2.5 Tongue Length (mm) : 13.6 Flammability Rating : UL94-HB Inside Diameter (In.) : 0.08 Outer Diameter (In.) : 0.16 Sub Brand : Reel Smart™ Product Type : Locking Fork Terminal Overall Width (mm) : 6.4 Tongue Width (mm) : 6.4 Stud Hole Size (In.) : #6 Insulation Material : Nylon For Use With : Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator Maximum Wire Insulation Diameter (In.) : 0.162 Overall Length (In.) : 0.85 Maximum Operating Temperature (°C) : 105 Maximum Voltage (kV) : 0.6 Tongue Length (In.) : 0.54 Finish/Coating : Tin-Plated Maximum Wire Insulation Diameter (mm) : 4.1 Outer Diameter (mm) : 4.1 Overall Length (mm) : 21.6 Color Code : Blue Packaging Type : Reel Maximum Operating Temperature (°F) : 221 Stud Hole Size (mm) : 3.5 Wire Strip Length (In.) : 1/4 Maximum Voltage (V) : 600 Insulation Type : Nylon Wire Strip Length (mm) : 6.4 Barrel Type : Funnel Entry Tongue Thickness (In.) : 0.03 Tongue Thickness (mm) : 0.8 Tongue Width (In.) : 0.25 Stud Size : #6 Copper Conductor Size : 16-14 AWG Wire Size : 16-14 AWG - Selection Guides
Selection Guides 1
Part DrawingsPart Drawings 1
