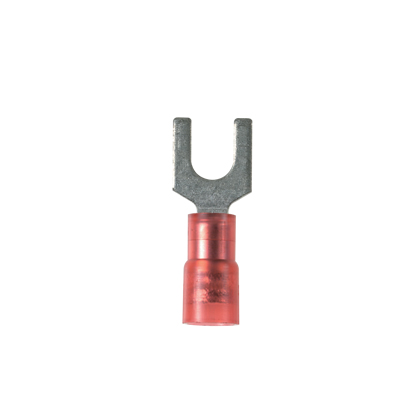

Pan-Term® PNF18-6F-C Loose Piece Terminal
MFG #PNF18-6F-C
$1.42 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
Fork Terminal, nylon insulated, funnel entry, 22- 18 AWG, #6 stud size, standard package.
HESCO Part Number
PANPNF186FC
UPC
074983513468
Manufacturer Part Number
PNF18-6F-C
Manufacturer
Panduit
Panduit
Pan-Term® PNF18-6F-C Loose Piece Terminal
MFG #PNF18-6F-C
Product Description:
Fork Terminal, nylon insulated, funnel entry, 22- 18 AWG, #6 stud size, standard package.
HESCO Part Number
PANPNF186FC
UPC
074983513468
Manufacturer Part Number
PNF18-6F-C
Manufacturer
Panduit
$1.42 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
- No
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Tongue Thickness (mm) | : | 0.8 |
| Barrel Length (mm) | : | 8.4 |
| Overall Width (In.) | : | 0.3 |
| Insulation Type | : | Nylon |
| Barrel Length (In.) | : | 0.33 |
| Stud Size | : | #6 |
| Stud Hole Size (In.) | : | #6 |
| Finish/Coating | : | Tin-Plated |
| Outer Diameter (mm) | : | 5.8 |
| Sub Brand | : | Pan-Term® |
| Barrel Type | : | Funnel Entry |
| Flammability Rating | : | UL94-HB |
| Base Material | : | Copper |
| Maximum Wire Insulation Diameter (mm) | : | 5.8 |
| Maximum Operating Temperature (°C) | : | 105 |
| Overall Length (In.) | : | 0.8 |
| Fork Type | : | Standard |
| Overall Length (mm) | : | 20.3 |
| Maximum Wire Insulation Diameter (In.) | : | 0.23 |
| Insulation Material | : | Nylon |
| Minimum Metric Conductor Size (mm²) | : | 0.5 |
| Stud Hole Size (mm) | : | 3.5 |
| Seam Type | : | Butted |
| Packaging Type | : | Bottle |
| Tongue Length (mm) | : | 11.9 |
| Maximum Voltage (V) | : | 600 |
| Tongue Width (In.) | : | 0.3 |
| Maximum Voltage (kV) | : | 0.6 |
| Maximum Metric Conductor Size (mm²) | : | 1 |
| Overall Width (mm) | : | 7.6 |
| Maximum Operating Temperature (°F) | : | 221 |
| Wire Strip Length (In.) | : | 7/32 |
| For Use With | : | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Color Code | : | Red |
| Product Type | : | Ring Terminal |
| Tongue Length (In.) | : | 0.47 |
| Tongue Thickness (In.) | : | 0.03 |
| Tongue Width (mm) | : | 7.6 |
| Wire Strip Length (mm) | : | 5.6 |
| Outer Diameter (In.) | : | 0.23 |
| Wire Size | : | 22-18 AWG |
| Copper Conductor Size | : | 22-18 AWG |
Packaging Details | ||
| UPC | : | 07498351346 |
| GTIN Package | : | 00074983513468 |
| Standard Package Volume Ft3 | : | 0.0074 |
| Standard Package Weight Pounds | : | 0.4700 |
| Std Package Height In | : | 1.8 |
| Std Package Height MM | : | 45.72 |
| Std Package Length In | : | 3.6 |
| Std Package Length MM | : | 91.44 |
| Std Package Width In | : | 1.8 |
| Std Package Width MM | : | 45.72 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983513463 |
| Standard Carton Volume Ft3 | : | 0.0368 |
| Standard Carton Weight Pounds | : | 2.3500 |
| Std Carton Height In | : | 3.65 |
| Std Carton Height MM | : | 92.71 |
| Std Carton Length In | : | 9.3 |
| Std Carton Length MM | : | 236.22 |
| Std Carton Width In | : | 2.05 |
| Std Carton Width MM | : | 52.07 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983513468 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
- No
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Tongue Thickness (mm) : 0.8 Barrel Length (mm) : 8.4 Overall Width (In.) : 0.3 Insulation Type : Nylon Barrel Length (In.) : 0.33 Stud Size : #6 Stud Hole Size (In.) : #6 Finish/Coating : Tin-Plated Outer Diameter (mm) : 5.8 Sub Brand : Pan-Term® Barrel Type : Funnel Entry Flammability Rating : UL94-HB Base Material : Copper Maximum Wire Insulation Diameter (mm) : 5.8 Maximum Operating Temperature (°C) : 105 Overall Length (In.) : 0.8 Fork Type : Standard Overall Length (mm) : 20.3 Maximum Wire Insulation Diameter (In.) : 0.23 Insulation Material : Nylon Minimum Metric Conductor Size (mm²) : 0.5 Stud Hole Size (mm) : 3.5 Seam Type : Butted Packaging Type : Bottle Tongue Length (mm) : 11.9 Maximum Voltage (V) : 600 Tongue Width (In.) : 0.3 Maximum Voltage (kV) : 0.6 Maximum Metric Conductor Size (mm²) : 1 Overall Width (mm) : 7.6 Maximum Operating Temperature (°F) : 221 Wire Strip Length (In.) : 7/32 For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) Color Code : Red Product Type : Ring Terminal Tongue Length (In.) : 0.47 Tongue Thickness (In.) : 0.03 Tongue Width (mm) : 7.6 Wire Strip Length (mm) : 5.6 Outer Diameter (In.) : 0.23 Wire Size : 22-18 AWG Copper Conductor Size : 22-18 AWG Packaging Details
