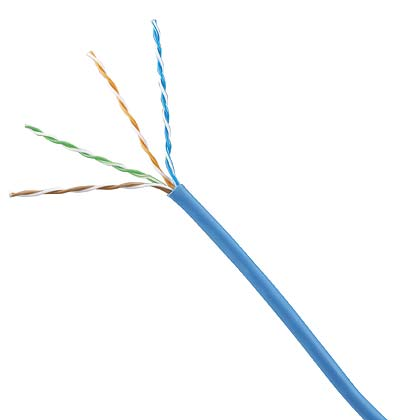

Copper Cable, Cat 6, 23 AWG, U/UTP, CMR, Blue
MFG #PUR6C04BU-U
$0.66 / FT
(Must order in increments of 1000/FT)
(Must order in increments of 1000/FT)
Product Description:
The TX6™ Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs . All four pairs are surrounded by a PVC flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.
HESCO Part Number
PANPUR6C04BUU
UPC
074983220946
Manufacturer Part Number
PUR6C04BU-U
Manufacturer
Panduit
Copper Cable, Cat 6, 23 AWG, U/UTP, CMR, Blue
MFG #PUR6C04BU-U
Product Description:
The TX6™ Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs . All four pairs are surrounded by a PVC flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.
HESCO Part Number
PANPUR6C04BUU
UPC
074983220946
Manufacturer Part Number
PUR6C04BU-U
Manufacturer
Panduit
$0.66 / FT
(Must order in increments of 1000/FT)
(Must order in increments of 1000/FT)
- Features
- Specifications
- Resources
- Standards Met: Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E with Channel Headroom Guarantee, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications, UL 1666 and CSA FT-4, RoHS Compliant.
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | DEFAULT |
| Packaging Type | : | Carton |
| Cable Construction | : | U/UTP |
| Minimum Operating Temperature (°C) | : | -20 |
| Overall Length (ft.) | : | 1000 |
| Maximum Installation Tension (lb) | : | 25 |
| Bend Radius (mm) | : | 21 |
| Insulation Diameter (In.) | : | 0.039 |
| Bend Radius (In.) | : | 0.83 |
| Maximum Installation Temperature (°C) | : | 50 |
| Sub Brand | : | Pan-Net® |
| Jacket Material | : | PVC |
| Minimum Installation Temperature (°F) | : | 32 |
| Nominal Cable Outside Diameter (mm) | : | 5.3 |
| Insulation Material | : | Polyolefin |
| Environment | : | Indoor |
| Minimum Installation Temperature (°C) | : | 0 |
| Product Type | : | Copper Cable |
| Maximum Voltage (V) | : | 80 |
| Conductor Type | : | Solid |
| Number of Pairs | : | 4 |
| Resistance Properties | : | Flame-Retardant |
| Nominal Cable Outside Diameter (In.) | : | 0.21 |
| Maximum Installation Temperature (°F) | : | 122 |
| Performance Level | : | Category 6 |
| Insulation Diameter (mm) | : | 1 |
| Overall Length (m) | : | 305 |
| Conductor Material | : | Copper |
| Maximum Installation Tension (N) | : | 110 |
| Maximum Operating Temperature (°C) | : | 75 |
| Minimum Operating Temperature (°F) | : | -4 |
| Maximum Operating Temperature (°F) | : | 167 |
| Color | : | Blue |
| Flammability Rating | : | Riser (CMR) |
| Region | : | North America |
| Conductor Gauge | : | 23 AWG |
Packaging Details | ||
| UPC | : | 07498322094 |
| GTIN Package | : | 00074983220946 |
| Standard Package Volume Ft3 | : | 1.6806 |
| Standard Package Weight Pounds | : | 29.0800 |
| Std Package Height In | : | 15 |
| Std Package Height MM | : | 381 |
| Std Package Length In | : | 10 |
| Std Package Length MM | : | 254 |
| Std Package Width In | : | 15.5 |
| Std Package Width MM | : | 393.7 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983220941 |
| Standard Carton Volume Ft3 | : | 60.5000 |
| Standard Carton Weight Pounds | : | 1,046.8800 |
| Std Carton Height In | : | 51 |
| Std Carton Height MM | : | 1295.4 |
| Std Carton Length In | : | 44 |
| Std Carton Length MM | : | 1117.6 |
| Std Carton Width In | : | 48 |
| Std Carton Width MM | : | 1219.2 |
| Std Ctn Qty | : | 36000 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983220946 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 12,000.0000 |
| Pallet Quantity | : | 36,000 |
| Pallet Volume | : | 60.500000 |
| Pallet Weight | : | 1,046.8800 |
| RoHS Compliant | : | Compliant |
