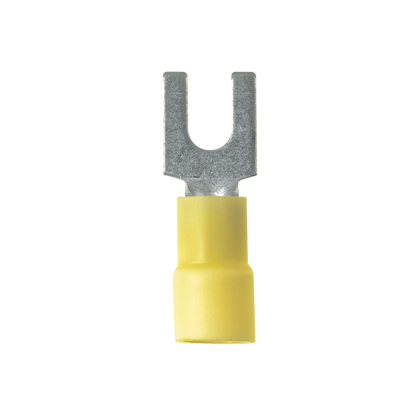

Pan-Term® PV10-14FX-L Loose Piece Terminal
MFG #PV10-14FX-L
$1.45 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
Fork Terminal, vinyl insulated, 12- 10 AWG, 1/4 stud size, expanded insulation for large wire O.D.
HESCO Part Number
PANPV1014FXL
UPC
074983804344
Manufacturer Part Number
PV10-14FX-L
Manufacturer
Panduit
Pan-Term® PV10-14FX-L Loose Piece Terminal
MFG #PV10-14FX-L
Product Description:
Fork Terminal, vinyl insulated, 12- 10 AWG, 1/4 stud size, expanded insulation for large wire O.D.
HESCO Part Number
PANPV1014FXL
UPC
074983804344
Manufacturer Part Number
PV10-14FX-L
Manufacturer
Panduit
$1.45 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Packaging Details
| UPC | : | 07498380434 |
| GTIN Package | : | 00074983804344 |
| Standard Package Volume Ft3 | : | 0.0103 |
| Standard Package Weight Pounds | : | 0.3100 |
| Std Package Height In | : | 1.9 |
| Std Package Height MM | : | 48.26 |
| Std Package Length In | : | 4.35 |
| Std Package Length MM | : | 110.49 |
| Std Package Width In | : | 1.95 |
| Std Package Width MM | : | 49.53 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983804349 |
| Standard Carton Volume Ft3 | : | 0.1034 |
| Standard Carton Weight Pounds | : | 3.1000 |
| Std Carton Height In | : | 4.35 |
| Std Carton Height MM | : | 110.49 |
| Std Carton Length In | : | 10.1 |
| Std Carton Length MM | : | 256.54 |
| Std Carton Width In | : | 4.6 |
| Std Carton Width MM | : | 116.84 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983804344 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Tongue Length (mm) | : | 18.7 |
| Overall Length (In.) | : | 1.22 |
| Outer Diameter (mm) | : | 6.4 |
| Tongue Thickness (mm) | : | 1 |
| For Use With | : | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Stud Size | : | 1/4" |
| Sub Brand | : | Pan-Term® |
| Wire Strip Length (mm) | : | 7.9 |
| Tongue Length (In.) | : | 0.74 |
| Maximum Voltage (kV) | : | 0.6 |
| Overall Width (mm) | : | 12.7 |
| Maximum Operating Temperature (°C) | : | 105 |
| Wire Strip Length (In.) | : | 5/16 |
| Overall Width (In.) | : | 0.5 |
| Base Material | : | Copper |
| Barrel Type | : | Expanded Entry |
| Barrel Length (mm) | : | 12.3 |
| Color Code | : | Yellow |
| Flammability Rating | : | UL94V-0 |
| Packaging Type | : | Bottle |
| Insulation Material | : | Vinyl |
| Overall Length (mm) | : | 31 |
| Seam Type | : | Brazed |
| Stud Hole Size (mm) | : | 6 |
| Maximum Wire Insulation Diameter (mm) | : | 6.4 |
| Maximum Metric Conductor Size (mm²) | : | 6 |
| Outer Diameter (In.) | : | 0.25 |
| Tongue Width (In.) | : | 0.5 |
| Product Type | : | Ring Terminal |
| Maximum Voltage (V) | : | 600 |
| Maximum Wire Insulation Diameter (In.) | : | 0.25 |
| Finish/Coating | : | Tin-Plated |
| Tongue Width (mm) | : | 12.7 |
| Barrel Length (In.) | : | 0.49 |
| Minimum Metric Conductor Size (mm²) | : | 4 |
| Fork Type | : | Standard |
| Insulation Type | : | Vinyl |
| Tongue Thickness (In.) | : | 0.04 |
| Stud Hole Size (In.) | : | 1/4 |
| Maximum Operating Temperature (°F) | : | 221 |
| Copper Conductor Size | : | 12-10 AWG |
| Wire Size | : | 12-10 AWG |
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Packaging Details
UPC : 07498380434 GTIN Package : 00074983804344 Standard Package Volume Ft3 : 0.0103 Standard Package Weight Pounds : 0.3100 Std Package Height In : 1.9 Std Package Height MM : 48.26 Std Package Length In : 4.35 Std Package Length MM : 110.49 Std Package Width In : 1.95 Std Package Width MM : 49.53 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 50 GTIN Carton : 50074983804349 Standard Carton Volume Ft3 : 0.1034 Standard Carton Weight Pounds : 3.1000 Std Carton Height In : 4.35 Std Carton Height MM : 110.49 Std Carton Length In : 10.1 Std Carton Length MM : 256.54 Std Carton Width In : 4.6 Std Carton Width MM : 116.84 Std Ctn Qty : 500 Min. Order UOM : Piece EAN : 00074983804344 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 50.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Tongue Length (mm) : 18.7 Overall Length (In.) : 1.22 Outer Diameter (mm) : 6.4 Tongue Thickness (mm) : 1 For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) Stud Size : 1/4" Sub Brand : Pan-Term® Wire Strip Length (mm) : 7.9 Tongue Length (In.) : 0.74 Maximum Voltage (kV) : 0.6 Overall Width (mm) : 12.7 Maximum Operating Temperature (°C) : 105 Wire Strip Length (In.) : 5/16 Overall Width (In.) : 0.5 Base Material : Copper Barrel Type : Expanded Entry Barrel Length (mm) : 12.3 Color Code : Yellow Flammability Rating : UL94V-0 Packaging Type : Bottle Insulation Material : Vinyl Overall Length (mm) : 31 Seam Type : Brazed Stud Hole Size (mm) : 6 Maximum Wire Insulation Diameter (mm) : 6.4 Maximum Metric Conductor Size (mm²) : 6 Outer Diameter (In.) : 0.25 Tongue Width (In.) : 0.5 Product Type : Ring Terminal Maximum Voltage (V) : 600 Maximum Wire Insulation Diameter (In.) : 0.25 Finish/Coating : Tin-Plated Tongue Width (mm) : 12.7 Barrel Length (In.) : 0.49 Minimum Metric Conductor Size (mm²) : 4 Fork Type : Standard Insulation Type : Vinyl Tongue Thickness (In.) : 0.04 Stud Hole Size (In.) : 1/4 Maximum Operating Temperature (°F) : 221 Copper Conductor Size : 12-10 AWG Wire Size : 12-10 AWG - Part Drawings
