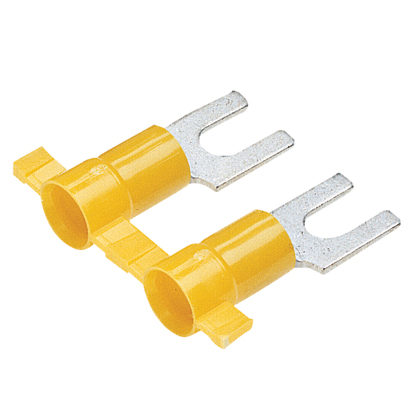

Reel Smart™ PV10-8FB-2K Terminals on a Reel
MFG #PV10-8FB-2K
$0.48 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
Product Description:
Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 12 - 10 AWG wire range, #8 stud size.
HESCO Part Number
PANPV108FB2K
UPC
074983804498
Manufacturer Part Number
PV10-8FB-2K
Manufacturer
Panduit
Reel Smart™ PV10-8FB-2K Terminals on a Reel
MFG #PV10-8FB-2K
Product Description:
Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 12 - 10 AWG wire range, #8 stud size.
HESCO Part Number
PANPV108FB2K
UPC
074983804498
Manufacturer Part Number
PV10-8FB-2K
Manufacturer
Panduit
$0.48 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Packaging Details
| UPC | : | 07498380449 |
| GTIN Package | : | 00074983804498 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 11.4000 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 2000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983804498 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 2,000.0000 |
| Pallet Quantity | : | 32,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 182.4000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Insulation Type | : | Vinyl |
| Barrel Type | : | Funnel Entry |
| Tongue Width (mm) | : | 7.6 |
| Insulation Material | : | Vinyl |
| Product Type | : | Fork Terminal |
| Color Code | : | Yellow |
| Seam Type | : | Butted |
| Tongue Thickness (mm) | : | 1 |
| Finish/Coating | : | Tin-Plated |
| Overall Width (mm) | : | 7.6 |
| Overall Length (In.) | : | 1 |
| Wire Strip Length (mm) | : | 8.7 |
| Overall Width (In.) | : | 0.3 |
| Sub Brand | : | Reel Smart™ |
| Stud Hole Size (In.) | : | #8 |
| Packaging Type | : | Reel |
| Stud Hole Size (mm) | : | 4 |
| Wire Strip Length (In.) | : | 11/32 |
| Base Material | : | Copper |
| Maximum Voltage (kV) | : | 0.6 |
| Flammability Rating | : | UL94V-0 |
| Fork Type | : | Standard |
| Stud Size | : | #8 |
| Overall Length (mm) | : | 25.4 |
| Tongue Length (mm) | : | 12.7 |
| Minimum Metric Conductor Size (mm²) | : | 4 |
| Maximum Voltage (V) | : | 600 |
| Tongue Width (In.) | : | 0.3 |
| Maximum Operating Temperature (°C) | : | 105 |
| Maximum Wire Insulation Diameter (In.) | : | 0.23 |
| Tongue Thickness (In.) | : | 0.04 |
| Tongue Length (In.) | : | 0.5 |
| Maximum Metric Conductor Size (mm²) | : | 6 |
| For Use With | : | Crimp press with CA9 (CD9-3B) or CA-800EZ (CD-800-3) applicator |
| Maximum Wire Insulation Diameter (mm) | : | 5.8 |
| Maximum Operating Temperature (°F) | : | 221 |
| Copper Conductor Size | : | 12-10 AWG |
| Wire Size | : | 12-10 AWG |
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Packaging Details
UPC : 07498380449 GTIN Package : 00074983804498 Standard Package Volume Ft3 : 0.9208 Standard Package Weight Pounds : 11.4000 Std Package Height In : 2.4 Std Package Height MM : 60.96 Std Package Length In : 26.1 Std Package Length MM : 662.94 Std Package Width In : 25.4 Std Package Width MM : 645.16 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 2000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983804498 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 2,000.0000 Pallet Quantity : 32,000 Pallet Volume : 0.000000 Pallet Weight : 182.4000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Insulation Type : Vinyl Barrel Type : Funnel Entry Tongue Width (mm) : 7.6 Insulation Material : Vinyl Product Type : Fork Terminal Color Code : Yellow Seam Type : Butted Tongue Thickness (mm) : 1 Finish/Coating : Tin-Plated Overall Width (mm) : 7.6 Overall Length (In.) : 1 Wire Strip Length (mm) : 8.7 Overall Width (In.) : 0.3 Sub Brand : Reel Smart™ Stud Hole Size (In.) : #8 Packaging Type : Reel Stud Hole Size (mm) : 4 Wire Strip Length (In.) : 11/32 Base Material : Copper Maximum Voltage (kV) : 0.6 Flammability Rating : UL94V-0 Fork Type : Standard Stud Size : #8 Overall Length (mm) : 25.4 Tongue Length (mm) : 12.7 Minimum Metric Conductor Size (mm²) : 4 Maximum Voltage (V) : 600 Tongue Width (In.) : 0.3 Maximum Operating Temperature (°C) : 105 Maximum Wire Insulation Diameter (In.) : 0.23 Tongue Thickness (In.) : 0.04 Tongue Length (In.) : 0.5 Maximum Metric Conductor Size (mm²) : 6 For Use With : Crimp press with CA9 (CD9-3B) or CA-800EZ (CD-800-3) applicator Maximum Wire Insulation Diameter (mm) : 5.8 Maximum Operating Temperature (°F) : 221 Copper Conductor Size : 12-10 AWG Wire Size : 12-10 AWG - Part Drawings
Part Drawings 1
Selection GuidesSelection Guides 1
