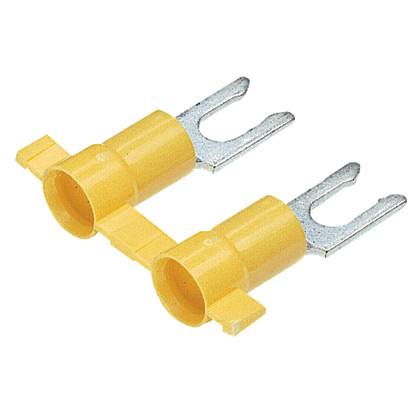

Reel Smart™ PV10-8LFB-2K Fork Terminal, Yellow, Vinyl, 10-12 AWG, #8 Stud
MFG #PV10-8LFB-2K
$0.45 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
Product Description:
The PV10-8LFB-2K Reel Smart™ Terminal is a continuously molded and vinyl fully insulated, locking fork terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
HESCO Part Number
PANPV108LFB2K
UPC
074983808502
Manufacturer Part Number
PV10-8LFB-2K
Manufacturer
Panduit
Reel Smart™ PV10-8LFB-2K Fork Terminal, Yellow, Vinyl, 10-12 AWG, #8 Stud
MFG #PV10-8LFB-2K
Product Description:
The PV10-8LFB-2K Reel Smart™ Terminal is a continuously molded and vinyl fully insulated, locking fork terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
HESCO Part Number
PANPV108LFB2K
UPC
074983808502
Manufacturer Part Number
PV10-8LFB-2K
Manufacturer
Panduit
$0.45 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Packaging Details
| UPC | : | 07498380850 |
| GTIN Package | : | 00074983808502 |
| Standard Package Volume Ft3 | : | 0.8344 |
| Standard Package Weight Pounds | : | 10.9500 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 2000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983808502 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 2,000.0000 |
| Pallet Quantity | : | 32,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 175.2000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Stud Size | : | #8 |
| Stud Hole Size (mm) | : | 4 |
| Overall Width (In.) | : | 0.3 |
| Tongue Width (mm) | : | 7.6 |
| Barrel Type | : | Funnel Entry |
| Minimum Metric Conductor Size (mm²) | : | 4 |
| Tongue Thickness (mm) | : | 1 |
| Finish/Coating | : | Tin-Plated |
| Wire Strip Length (In.) | : | 11/32 |
| Tongue Length (In.) | : | 0.52 |
| Tongue Thickness (In.) | : | 0.04 |
| Overall Length (In.) | : | 1.04 |
| Maximum Metric Conductor Size (mm²) | : | 6 |
| Overall Length (mm) | : | 26.4 |
| Seam Type | : | Butted |
| Maximum Operating Temperature (°C) | : | 105 |
| Insulation Type | : | Vinyl |
| Maximum Voltage (kV) | : | 0.6 |
| Tongue Width (In.) | : | 0.3 |
| Color Code | : | Yellow |
| Maximum Wire Insulation Diameter (In.) | : | 0.225 |
| Sub Brand | : | Reel Smart™ |
| Packaging Type | : | Reel |
| Tongue Length (mm) | : | 13.2 |
| Base Material | : | Copper |
| Maximum Voltage (V) | : | 600 |
| Flammability Rating | : | UL94V-0 |
| Overall Width (mm) | : | 7.6 |
| For Use With | : | Crimp press with CA9 (CD9-3B) or CA-800EZ (CD-800-3) applicator |
| Stud Hole Size (In.) | : | #8 |
| Fork Type | : | Locking Fork |
| Maximum Operating Temperature (°F) | : | 221 |
| Wire Strip Length (mm) | : | 8.7 |
| Insulation Material | : | Vinyl |
| Maximum Wire Insulation Diameter (mm) | : | 5.7 |
| Product Type | : | Locking Fork Terminal |
| Wire Size | : | 12-10 AWG |
| Copper Conductor Size | : | 12-10 AWG |
