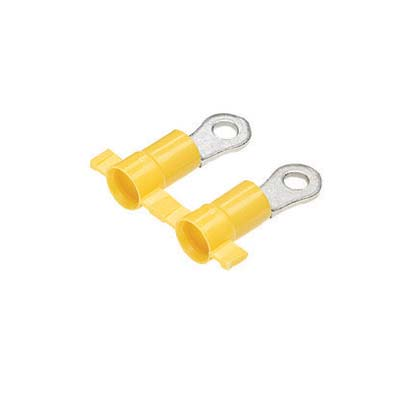

Reel Smart™ PV12-10HDRB-2K Ring Terminal on Reel
MFG #PV12-10HDRB-2K
$0.57 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
Product Description:
Heavy Duty Ring Terminal, vinyl insulated, plastic insulation crimp, 16 – 12 AWG, .05 stock and #10 stud size.
HESCO Part Number
PANPV1210HDRB2K
UPC
074983806881
Manufacturer Part Number
PV12-10HDRB-2K
Manufacturer
Panduit
Reel Smart™ PV12-10HDRB-2K Ring Terminal on Reel
MFG #PV12-10HDRB-2K
Product Description:
Heavy Duty Ring Terminal, vinyl insulated, plastic insulation crimp, 16 – 12 AWG, .05 stock and #10 stud size.
HESCO Part Number
PANPV1210HDRB2K
UPC
074983806881
Manufacturer Part Number
PV12-10HDRB-2K
Manufacturer
Panduit
$0.57 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164, CSA Certified LR31212
Packaging Details
| UPC | : | 07498380688 |
| GTIN Package | : | 00074983806881 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 12.6000 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 2000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983806881 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 2,000.0000 |
| Pallet Quantity | : | 32,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 201.6000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Wire Insulation Diameter (In.) | : | 0.23 |
| Stud Size | : | #10 |
| Barrel Length (mm) | : | 13.5 |
| Stud Hole Size (mm) | : | 5 |
| Stud Hole Size (In.) | : | #10 |
| Insulation Diameter (mm) | : | 5.7 |
| Overall Width (mm) | : | 9.4 |
| Tongue Length (mm) | : | 13.5 |
| Color Code | : | Yellow |
| Overall Width (In.) | : | 0.37 |
| Maximum Voltage (V) | : | 600 |
| Maximum Voltage (kV) | : | 0.6 |
| Barrel Length (In.) | : | 0.53 |
| Finish/Coating | : | Tin-Plated |
| Flammability Rating | : | UL94V-0 |
| Overall Length (In.) | : | 1.06 |
| Minimum Metric Conductor Size (mm²) | : | 2.5 |
| Base Material | : | Copper |
| Tongue Width (mm) | : | 9.4 |
| CSA Temperature Rating (°C) | : | 105 |
| Overall Length (mm) | : | 26.9 |
| Insulation Diameter (In.) | : | 0.23 |
| Product Type | : | Ring Terminal |
| Maximum Operating Temperature (°F) | : | 221 |
| Wire Strip Length (In.) | : | 9/32 |
| Wire Strip Length (mm) | : | 7.1 |
| Packaging Type | : | Reel |
| Insulation Material | : | Vinyl |
| Maximum Metric Conductor Size (mm²) | : | 4 |
| Tongue Width (In.) | : | 0.37 |
| Maximum Wire Insulation Diameter (mm) | : | 5.7 |
| Tongue Length (In.) | : | 0.53 |
| For Use With | : | Crimp press with CA9 (CD9-3B) or CA-800EZ (CD-800-3) applicator |
| Sub Brand | : | Reel Smart™ |
| Seam Type | : | Butted |
| Maximum Operating Temperature (°C) | : | 105 |
| Copper Conductor Size | : | 16-12 AWG |
| Wire Size | : | 16-12 AWG |
- Standards Met: UL Listed 587H E52164, CSA Certified LR31212
Packaging Details
UPC : 07498380688 GTIN Package : 00074983806881 Standard Package Volume Ft3 : 0.9208 Standard Package Weight Pounds : 12.6000 Std Package Height In : 2.4 Std Package Height MM : 60.96 Std Package Length In : 26.1 Std Package Length MM : 662.94 Std Package Width In : 25.4 Std Package Width MM : 645.16 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 2000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983806881 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 2,000.0000 Pallet Quantity : 32,000 Pallet Volume : 0.000000 Pallet Weight : 201.6000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Maximum Wire Insulation Diameter (In.) : 0.23 Stud Size : #10 Barrel Length (mm) : 13.5 Stud Hole Size (mm) : 5 Stud Hole Size (In.) : #10 Insulation Diameter (mm) : 5.7 Overall Width (mm) : 9.4 Tongue Length (mm) : 13.5 Color Code : Yellow Overall Width (In.) : 0.37 Maximum Voltage (V) : 600 Maximum Voltage (kV) : 0.6 Barrel Length (In.) : 0.53 Finish/Coating : Tin-Plated Flammability Rating : UL94V-0 Overall Length (In.) : 1.06 Minimum Metric Conductor Size (mm²) : 2.5 Base Material : Copper Tongue Width (mm) : 9.4 CSA Temperature Rating (°C) : 105 Overall Length (mm) : 26.9 Insulation Diameter (In.) : 0.23 Product Type : Ring Terminal Maximum Operating Temperature (°F) : 221 Wire Strip Length (In.) : 9/32 Wire Strip Length (mm) : 7.1 Packaging Type : Reel Insulation Material : Vinyl Maximum Metric Conductor Size (mm²) : 4 Tongue Width (In.) : 0.37 Maximum Wire Insulation Diameter (mm) : 5.7 Tongue Length (In.) : 0.53 For Use With : Crimp press with CA9 (CD9-3B) or CA-800EZ (CD-800-3) applicator Sub Brand : Reel Smart™ Seam Type : Butted Maximum Operating Temperature (°C) : 105 Copper Conductor Size : 16-12 AWG Wire Size : 16-12 AWG - Part Drawings
Part Drawings 1
Selection GuidesSelection Guides 1
