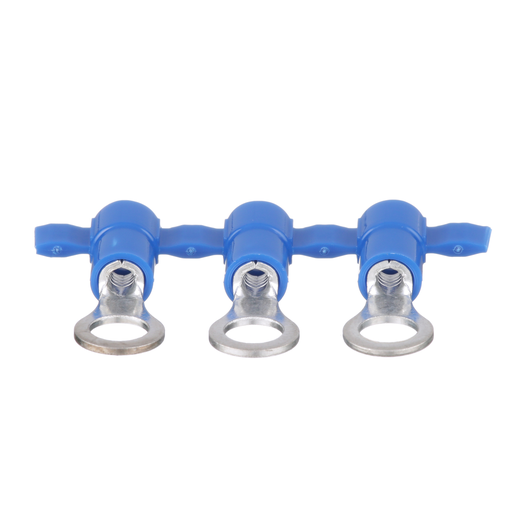

Reel Smart™ PV14-14RB-3K Ring Terminal, Blue, Vinyl, 14-16 AWG, 1/4" Stud
MFG #PV14-14RB-3K
$0.41 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
Product Description:
The PV14-14RB-3K Reel Smart™ Terminal is a continuously molded and vinyl fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
HESCO Part Number
PANPV1414RB3K
UPC
074983806935
Manufacturer Part Number
PV14-14RB-3K
Manufacturer
Panduit
Reel Smart™ PV14-14RB-3K Ring Terminal, Blue, Vinyl, 14-16 AWG, 1/4" Stud
MFG #PV14-14RB-3K
Product Description:
The PV14-14RB-3K Reel Smart™ Terminal is a continuously molded and vinyl fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
HESCO Part Number
PANPV1414RB3K
UPC
074983806935
Manufacturer Part Number
PV14-14RB-3K
Manufacturer
Panduit
$0.41 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
Packaging Details
| UPC | : | 07498380693 |
| GTIN Package | : | 00074983806935 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 10.8000 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 3000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983806935 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 3,000.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 172.8000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Insulation Material | : | Vinyl |
| Overall Length (mm) | : | 26.7 |
| Overall Width (mm) | : | 11.4 |
| Product Type | : | Ring Terminal |
| Overall Width (In.) | : | 0.45 |
| Barrel Type | : | Funnel Entry |
| Flammability Rating | : | UL94V-0 |
| Sub Brand | : | Reel Smart™ |
| Maximum Metric Conductor Size (mm²) | : | 2.5 |
| Tongue Thickness (mm) | : | 0.8 |
| Stud Size | : | 1/4" |
| For Use With | : | Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator |
| Maximum Voltage (kV) | : | 0.6 |
| Maximum Operating Temperature (°F) | : | 221 |
| Finish/Coating | : | Tin-Plated |
| Maximum Voltage (V) | : | 600 |
| Base Material | : | Copper |
| Tongue Thickness (In.) | : | 0.03 |
| Tongue Width (In.) | : | 0.45 |
| Wire Strip Length (In.) | : | 1/4 |
| Maximum Operating Temperature (°C) | : | 105 |
| Wire Strip Length (mm) | : | 6.4 |
| Tongue Width (mm) | : | 11.4 |
| Maximum Wire Insulation Diameter (In.) | : | 0.17 |
| Stud Hole Size (In.) | : | 1/4 |
| Minimum Metric Conductor Size (mm²) | : | 1.5 |
| Overall Length (In.) | : | 1.05 |
| Color Code | : | Blue |
| Maximum Wire Insulation Diameter (mm) | : | 4.3 |
| Stud Hole Size (mm) | : | 6 |
| Copper Conductor Size | : | 16-14 AWG |
| Wire Size | : | 16-14 AWG |
