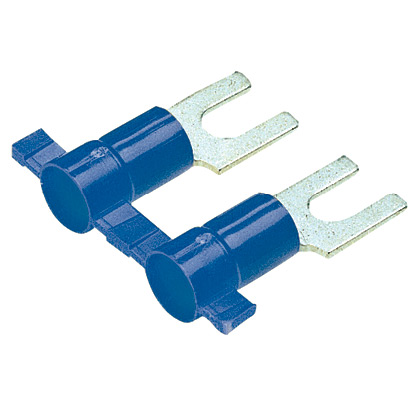

Reel Smart™ PV14-6FB-3K Terminals on a Reel
MFG #PV14-6FB-3K
$0.34 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
Product Description:
Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 16 - 14 AWG wire range, #6 stud size.
HESCO Part Number
PANPV146FB3K
UPC
074983804443
Manufacturer Part Number
PV14-6FB-3K
Manufacturer
Panduit
Reel Smart™ PV14-6FB-3K Terminals on a Reel
MFG #PV14-6FB-3K
Product Description:
Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 16 - 14 AWG wire range, #6 stud size.
HESCO Part Number
PANPV146FB3K
UPC
074983804443
Manufacturer Part Number
PV14-6FB-3K
Manufacturer
Panduit
$0.34 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Wire Insulation Diameter (In.) | : | 0.17 |
| Seam Type | : | Butted |
| Insulation Type | : | Vinyl |
| Fork Type | : | Standard |
| Sub Brand | : | Reel Smart™ |
| Tongue Length (mm) | : | 9.9 |
| Color Code | : | Blue |
| Insulation Material | : | Vinyl |
| Finish/Coating | : | Tin-Plated |
| Barrel Type | : | Funnel Entry |
| Stud Hole Size (mm) | : | 3.5 |
| Maximum Operating Temperature (°C) | : | 105 |
| Maximum Metric Conductor Size (mm²) | : | 2.5 |
| Product Type | : | Fork Terminal |
| Tongue Thickness (In.) | : | 0.03 |
| Overall Width (mm) | : | 7.1 |
| Flammability Rating | : | UL94V-0 |
| Tongue Width (mm) | : | 7.1 |
| Overall Length (mm) | : | 19.8 |
| Maximum Voltage (kV) | : | 0.6 |
| Tongue Thickness (mm) | : | 0.8 |
| Wire Strip Length (In.) | : | 11/32 |
| Tongue Length (In.) | : | 0.39 |
| Base Material | : | Copper |
| Tongue Width (In.) | : | 0.28 |
| For Use With | : | Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator |
| Minimum Metric Conductor Size (mm²) | : | 1.5 |
| Wire Strip Length (mm) | : | 8.7 |
| Overall Width (In.) | : | 0.28 |
| Packaging Type | : | Reel |
| Maximum Voltage (V) | : | 600 |
| Maximum Operating Temperature (°F) | : | 221 |
| Stud Size | : | #6 |
| Maximum Wire Insulation Diameter (mm) | : | 4.3 |
| Overall Length (In.) | : | 0.78 |
| Stud Hole Size (In.) | : | #6 |
| Wire Size | : | 16-14 AWG |
| Copper Conductor Size | : | 16-14 AWG |
Packaging Details | ||
| UPC | : | 07498380444 |
| GTIN Package | : | 00074983804443 |
| Standard Package Volume Ft3 | : | 1.0240 |
| Standard Package Weight Pounds | : | 8.1999 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 25.6 |
| Std Package Length MM | : | 650.24 |
| Std Package Width In | : | 25.6 |
| Std Package Width MM | : | 650.24 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 3000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983804443 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 3,000.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 131.1984 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Maximum Wire Insulation Diameter (In.) : 0.17 Seam Type : Butted Insulation Type : Vinyl Fork Type : Standard Sub Brand : Reel Smart™ Tongue Length (mm) : 9.9 Color Code : Blue Insulation Material : Vinyl Finish/Coating : Tin-Plated Barrel Type : Funnel Entry Stud Hole Size (mm) : 3.5 Maximum Operating Temperature (°C) : 105 Maximum Metric Conductor Size (mm²) : 2.5 Product Type : Fork Terminal Tongue Thickness (In.) : 0.03 Overall Width (mm) : 7.1 Flammability Rating : UL94V-0 Tongue Width (mm) : 7.1 Overall Length (mm) : 19.8 Maximum Voltage (kV) : 0.6 Tongue Thickness (mm) : 0.8 Wire Strip Length (In.) : 11/32 Tongue Length (In.) : 0.39 Base Material : Copper Tongue Width (In.) : 0.28 For Use With : Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator Minimum Metric Conductor Size (mm²) : 1.5 Wire Strip Length (mm) : 8.7 Overall Width (In.) : 0.28 Packaging Type : Reel Maximum Voltage (V) : 600 Maximum Operating Temperature (°F) : 221 Stud Size : #6 Maximum Wire Insulation Diameter (mm) : 4.3 Overall Length (In.) : 0.78 Stud Hole Size (In.) : #6 Wire Size : 16-14 AWG Copper Conductor Size : 16-14 AWG Packaging Details
UPC : 07498380444 GTIN Package : 00074983804443 Standard Package Volume Ft3 : 1.0240 Standard Package Weight Pounds : 8.1999 Std Package Height In : 2.4 Std Package Height MM : 60.96 Std Package Length In : 25.6 Std Package Length MM : 650.24 Std Package Width In : 25.6 Std Package Width MM : 650.24 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 3000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983804443 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 3,000.0000 Pallet Quantity : 48,000 Pallet Volume : 0.000000 Pallet Weight : 131.1984 RoHS Compliant : Compliant - Selection Guides
