Reel Smart™ PV18-6RNB-3K Ring Terminal-Funnel Entry
MFG #PV18-6RNB-3K
$0.34 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
Product Description:

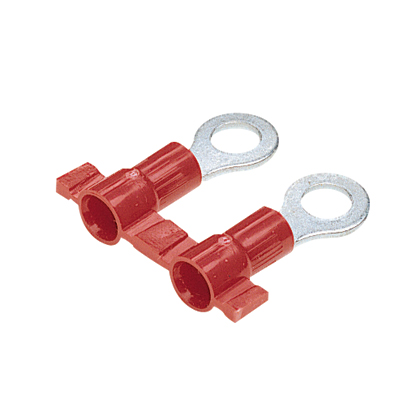

Ring Terminal, narrow tongue, vinyl insulated, funnel entry, plastic insulation crimp, 22 – 18 AWG wire range, #6 stud size.
HESCO Part Number
PANPV186RNB3K
UPC
074983803491
Manufacturer Part Number
PV18-6RNB-3K
Manufacturer
Panduit
Reel Smart™ PV18-6RNB-3K Ring Terminal-Funnel Entry
MFG #PV18-6RNB-3K
Product Description:
Ring Terminal, narrow tongue, vinyl insulated, funnel entry, plastic insulation crimp, 22 – 18 AWG wire range, #6 stud size.
HESCO Part Number
PANPV186RNB3K
UPC
074983803491
Manufacturer Part Number
PV18-6RNB-3K
Manufacturer
Panduit
$0.34 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
- Features
- Specifications
- Resources
- Standards Met: UL Listed 587H E52164, CSA Certified LR31212
Packaging Details
| UPC | : | 07498380349 |
| GTIN Package | : | 00074983803491 |
| Standard Package Volume Ft3 | : | 0.8654 |
| Standard Package Weight Pounds | : | 6.9999 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 3000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983803491 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 3,000.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 111.9984 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Outer Diameter (mm) | : | 3.8 |
| Insulation Material | : | Vinyl |
| Minimum Metric Conductor Size (mm²) | : | 0.5 |
| Maximum Operating Temperature (°F) | : | 221 |
| Tongue Length (In.) | : | 0.44 |
| Overall Width (In.) | : | 0.23 |
| Finish/Coating | : | Tin-Plated |
| Color Code | : | Red |
| Maximum Voltage (V) | : | 600 |
| Overall Width (mm) | : | 5.8 |
| For Use With | : | Crimp press with CA9 (CD9-1A) or CA-800EZ (CD-800-1) applicator |
| Barrel Length (In.) | : | 0.31 |
| Maximum Metric Conductor Size (mm²) | : | 1 |
| Stud Size | : | #6 |
| Maximum Operating Temperature (°C) | : | 105 |
| Product Type | : | Ring Terminal |
| Sub Brand | : | Reel Smart™ |
| Wire Strip Length (In.) | : | 1/4 |
| Packaging Type | : | Reel |
| Stud Hole Size (mm) | : | 3.5 |
| Base Material | : | Copper |
| Wire Strip Length (mm) | : | 6.4 |
| Tongue Thickness (mm) | : | 0.8 |
| Tongue Length (mm) | : | 11.1 |
| Tongue Width (In.) | : | 0.23 |
| Flammability Rating | : | UL94V-0 |
| Stud Hole Size (In.) | : | #6 |
| Barrel Type | : | Funnel Entry |
| Maximum Voltage (kV) | : | 0.6 |
| Barrel Length (mm) | : | 7.9 |
| Maximum Wire Insulation Diameter (mm) | : | 3.8 |
| Tongue Thickness (In.) | : | 0.03 |
| Tongue Width (mm) | : | 5.8 |
| Outer Diameter (In.) | : | 0.15 |
| Overall Length (In.) | : | 0.75 |
| Maximum Wire Insulation Diameter (In.) | : | 0.15 |
| Insulation Diameter (mm) | : | 3.7 |
| Overall Length (mm) | : | 19.1 |
| Insulation Diameter (In.) | : | 0.15 |
| Copper Conductor Size | : | 22-18 AWG |
| Wire Size | : | 22-18 AWG |
