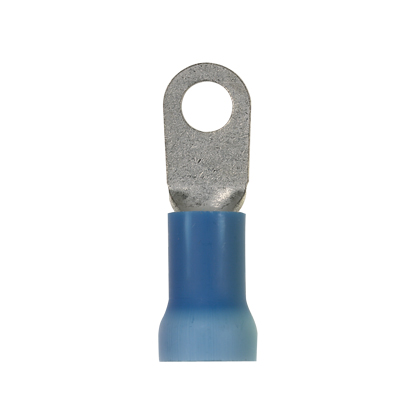

Pan-Term® PV6-14RX-X Ring Terminal, Blue, Vinyl, 6 AWG, 1/4" Stud, PK10
MFG #PV6-14RX-X
$3.98 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
The PV6-14RX-X Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
HESCO Part Number
PANPV614RXX
UPC
074983124459
Manufacturer Part Number
PV6-14RX-X
Manufacturer
Panduit
Pan-Term® PV6-14RX-X Ring Terminal, Blue, Vinyl, 6 AWG, 1/4" Stud, PK10
MFG #PV6-14RX-X
Product Description:
The PV6-14RX-X Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
HESCO Part Number
PANPV614RXX
UPC
074983124459
Manufacturer Part Number
PV6-14RX-X
Manufacturer
Panduit
$3.98 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
Packaging Details
| UPC | : | 07498312445 |
| GTIN Package | : | 00074983124459 |
| Standard Package Volume Ft3 | : | 0.0080 |
| Standard Package Weight Pounds | : | 0.1650 |
| Std Package Height In | : | 1.75 |
| Std Package Height MM | : | 44.45 |
| Std Package Length In | : | 3.6 |
| Std Package Length MM | : | 91.44 |
| Std Package Width In | : | 1.8 |
| Std Package Width MM | : | 45.72 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| GTIN Carton | : | 50074983124454 |
| Standard Carton Volume Ft3 | : | 0.0802 |
| Standard Carton Weight Pounds | : | 1.6500 |
| Std Carton Height In | : | 3.7 |
| Std Carton Height MM | : | 93.98 |
| Std Carton Length In | : | 9.8 |
| Std Carton Length MM | : | 248.92 |
| Std Carton Width In | : | 3.9 |
| Std Carton Width MM | : | 99.06 |
| Std Ctn Qty | : | 100 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983124459 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 2,400 |
| Pallet Volume | : | 1.924000 |
| Pallet Weight | : | 39.6000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Insulation Material | : | Vinyl |
| Finish/Coating | : | Tin-Plated |
| For Use With | : | CT-720 (CD-720PV8-2); CT-2600/L (CD-2600-PV6) |
| Tongue Width (In.) | : | 0.47 |
| Seam Type | : | Brazed |
| Maximum Operating Temperature (°F) | : | 221 |
| Overall Length (In.) | : | 1.61 |
| Packaging Type | : | Bottle |
| Flammability Rating | : | UL94V-0 |
| Sub Brand | : | Pan-Term® |
| Tongue Width (mm) | : | 11.9 |
| Overall Width (In.) | : | 0.47 |
| Wire Strip Length (mm) | : | 11.1 |
| Color Code | : | Blue |
| Stud Hole Size (In.) | : | 1/4 |
| Overall Width (mm) | : | 11.9 |
| Base Material | : | Copper |
| Maximum Operating Temperature (°C) | : | 105 |
| Maximum Wire Insulation Diameter (mm) | : | 11.1 |
| Stud Size | : | 1/4" |
| Wire Strip Length (In.) | : | 7/16 |
| Barrel Type | : | Funnel Entry |
| Maximum Voltage (kV) | : | 0.6 |
| Tongue Thickness (mm) | : | 1.1 |
| Tongue Thickness (In.) | : | 0.05 |
| Product Type | : | Ring Terminal |
| Maximum Voltage (V) | : | 600 |
| Stud Hole Size (mm) | : | 6 |
| Overall Length (mm) | : | 40.9 |
| Maximum Wire Insulation Diameter (In.) | : | 0.44 |
| Copper Conductor Size | : | 6 AWG |
| Wire Size | : | 6 AWG |
