P1™ R100X150V1C Turn-Tell, Vinyl, White, 100 Lbls, 1", 0.5" PO H, PK1
MFG #R100X150V1C
$91.63 / E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
Product Description:

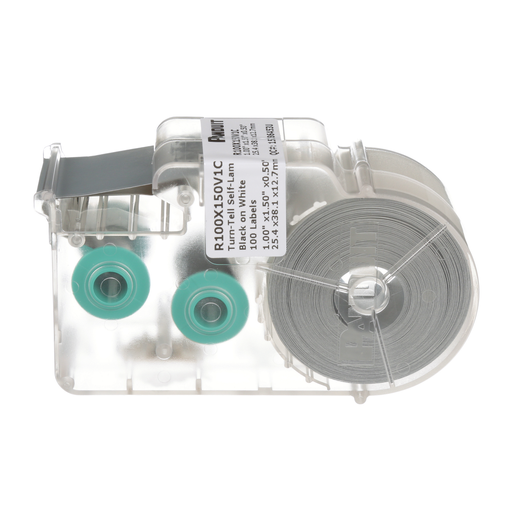

The R100X150V1C Turn-Tell Label Cassette includes both label material and ribbon for easy changeover. The label design allows rotation for visibility from any angle - reposition on the wire/cable to align legends and improve aesthetics. Can be easily installed on existing terminated wires and assemblies without disconnecting the wires/cables. For use with LS8E and LS8EQ printers. Vinyl. 1" x 1.50" (25.4 mm x 38.1 mm). Color White. 100 labels per cassette. 1 cassette per package.
HESCO Part Number
PANR100X150V1C
UPC
074983219445
Manufacturer Part Number
R100X150V1C
Manufacturer
Panduit
P1™ R100X150V1C Turn-Tell, Vinyl, White, 100 Lbls, 1", 0.5" PO H, PK1
MFG #R100X150V1C
Product Description:
The R100X150V1C Turn-Tell Label Cassette includes both label material and ribbon for easy changeover. The label design allows rotation for visibility from any angle - reposition on the wire/cable to align legends and improve aesthetics. Can be easily installed on existing terminated wires and assemblies without disconnecting the wires/cables. For use with LS8E and LS8EQ printers. Vinyl. 1" x 1.50" (25.4 mm x 38.1 mm). Color White. 100 labels per cassette. 1 cassette per package.
HESCO Part Number
PANR100X150V1C
UPC
074983219445
Manufacturer Part Number
R100X150V1C
Manufacturer
Panduit
$91.63 / E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant
Specifications
| Country of Origin | : | Costa Rica |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Cable Diameter (mm) | : | 7.1 |
| Note | : | For use with LS8E and LS8EQ printers |
| Cable Type | : | Category 5e/6/6e UTP and Category 5e FTP |
| Maximum Operating Temperature (°C) | : | 93 |
| Maximum Operating Temperature (°F) | : | 200 |
| Minimum Operating Temperature (°F) | : | -40 |
| Label Height (In.) | : | 1.5 |
| Label Height (mm) | : | 38.1 |
| Overall Width (In.) | : | 1 |
| Label Width (mm) | : | 25.4 |
| Print-On Area Height (In.) | : | 0.5 |
| Minimum Cable Diameter (In.) | : | 0.22 |
| Minimum Cable Diameter (mm) | : | 5.6 |
| Maximum Cable Diameter (In.) | : | 0.28 |
| Overall Width (mm) | : | 25.4 |
| Material | : | Vinyl |
| Print-On Area Height (mm) | : | 12.7 |
| Number of Labels per Cassette | : | 100 |
| Color | : | White |
| Label Width (In.) | : | 1 |
| Label Length (In.) | : | 1.5 |
| Label Application | : | Cable & Wire Marking |
| Label Length (mm) | : | 38.1 |
| Sub Brand | : | P1™ |
| Product Type | : | Turn-Tell Label |
| Minimum Operating Temperature (°C) | : | -40 |
| Compatible Wire Gauge | : | 10-6 AWG |
Packaging Details | ||
| UPC | : | 07498321944 |
| GTIN Package | : | 00074983219445 |
| Standard Package Volume Ft3 | : | 0.0873 |
| Standard Package Weight Pounds | : | 0.2950 |
| Std Package Height In | : | 1.95 |
| Std Package Height MM | : | 49.53 |
| Std Package Length In | : | 4.35 |
| Std Package Length MM | : | 110.49 |
| Std Package Width In | : | 2.85 |
| Std Package Width MM | : | 72.39 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| GTIN Carton | : | 50074983219440 |
| Standard Carton Volume Ft3 | : | 0.8725 |
| Standard Carton Weight Pounds | : | 2.9500 |
| Std Carton Height In | : | 5.65 |
| Std Carton Height MM | : | 143.51 |
| Std Carton Length In | : | 10.3 |
| Std Carton Length MM | : | 261.62 |
| Std Carton Width In | : | 6.05 |
| Std Carton Width MM | : | 153.67 |
| Std Ctn Qty | : | 10 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983219445 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 10.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
