S075X075YAJ Self-Laminating Label
MFG #S075X075YAJ
$0.08 / e
(Must order in increments of 5000/e)
(Must order in increments of 5000/e)
Product Description:

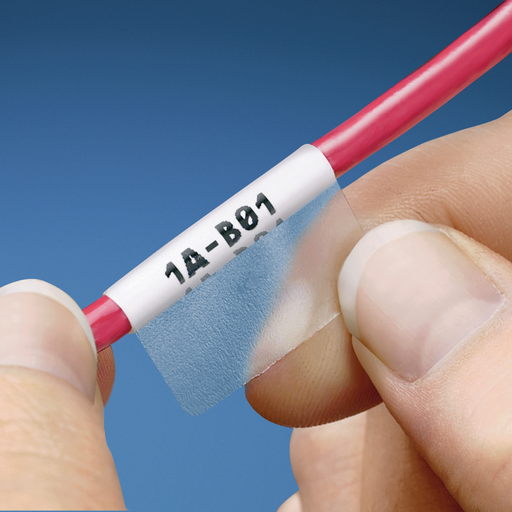

The laser/ink jet self-laminating adhesive label is made of polyester and is supplied on 8.5 x 11" (203.2 x 292.1 mm) sheets with 9 labels per row and 117 labels per sheet. The label has a white colored print-on area 0.25" (6.4 mm) high for 18 - 14 AWG wires and a clear overlaminate. It is 0.75" wide and 0.75" long (19.1 x 19.1 mm). It comes in packages of 2500.
HESCO Part Number
PANS075X075YAJ
UPC
074983683857
Manufacturer Part Number
S075X075YAJ
Manufacturer
Panduit
S075X075YAJ Self-Laminating Label
MFG #S075X075YAJ
Product Description:
The laser/ink jet self-laminating adhesive label is made of polyester and is supplied on 8.5 x 11" (203.2 x 292.1 mm) sheets with 9 labels per row and 117 labels per sheet. The label has a white colored print-on area 0.25" (6.4 mm) high for 18 - 14 AWG wires and a clear overlaminate. It is 0.75" wide and 0.75" long (19.1 x 19.1 mm). It comes in packages of 2500.
HESCO Part Number
PANS075X075YAJ
UPC
074983683857
Manufacturer Part Number
S075X075YAJ
Manufacturer
Panduit
$0.08 / e
(Must order in increments of 5000/e)
(Must order in increments of 5000/e)
- Features
- Specifications
- Resources
- Standards Met: RoHS Compliant, UL recognized, UL969, File # MH14979
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Length (mm) | : | 19 |
| Maximum Cable Diameter (In.) | : | 0.16 |
| Sheet Size | : | Letter |
| Print-On Area Height (In.) | : | 0.25 |
| Maximum Cable Diameter (mm) | : | 4.1 |
| Print-On Area Height (mm) | : | 6.4 |
| Minimum Cable Diameter (In.) | : | 0.08 |
| Printer Type | : | Laser/Inkjet |
| Product Type | : | Self-Laminating Label |
| Overall Width (In.) | : | 0.75 |
| Maximum Operating Temperature (°F) | : | 225 |
| Material | : | Polyester |
| Number of Labels | : | 2.5 |
| Label Property | : | Approved for Air Handling Spaces, Halogen Free |
| Maximum Operating Temperature (°C) | : | 107 |
| Minimum Cable Diameter (mm) | : | 2 |
| Overall Width (mm) | : | 19 |
| Label Application | : | Cable & Wire Marking |
| Minimum Operating Temperature (°C) | : | -54 |
| Minimum Operating Temperature (°F) | : | -65 |
| Color | : | White |
| Overall Length (In.) | : | 0.75 |
| Label Dimensions (In.) | : | 0.75L x 0.75W |
| Compatible Wire Gauge | : | 18-14 AWG |
Packaging Details | ||
| UPC | : | 07498368385 |
| GTIN Package | : | 00074983683857 |
| Standard Package Volume Ft3 | : | 0.1528 |
| Standard Package Weight Pounds | : | 2.0000 |
| Std Package Height In | : | 1.5 |
| Std Package Height MM | : | 38.1 |
| Std Package Length In | : | 12.2 |
| Std Package Length MM | : | 309.88 |
| Std Package Width In | : | 9 |
| Std Package Width MM | : | 228.6 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 2500 |
| GTIN Carton | : | 50074983683852 |
| Standard Carton Volume Ft3 | : | 0.6113 |
| Standard Carton Weight Pounds | : | 8.0000 |
| Std Carton Height In | : | 6.8 |
| Std Carton Height MM | : | 172.72 |
| Std Carton Length In | : | 12.85 |
| Std Carton Length MM | : | 326.39 |
| Std Carton Width In | : | 12.6 |
| Std Carton Width MM | : | 320.04 |
| Std Ctn Qty | : | 10000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983683857 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 5,000.0000 |
| Pallet Quantity | : | 630,000 |
| Pallet Volume | : | 38.509115 |
| Pallet Weight | : | 504.0000 |
| RoHS Compliant | : | Compliant |
