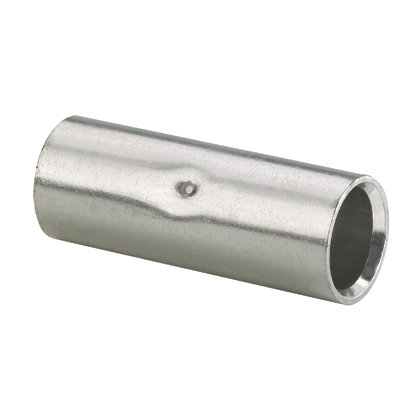

Pan-Lug™ SCMS70-L Compression Connectors - Splices
MFG #SCMS70-L
$8.80 / E
EACH
EACH
Product Description:
Copper metric butt splice, standard barrel, 70mm² wire.
HESCO Part Number
PANSCMS70L
UPC
074983769896
Manufacturer Part Number
SCMS70-L
Manufacturer
Panduit
Pan-Lug™ SCMS70-L Compression Connectors - Splices
MFG #SCMS70-L
Product Description:
Copper metric butt splice, standard barrel, 70mm² wire.
HESCO Part Number
PANSCMS70L
UPC
074983769896
Manufacturer Part Number
SCMS70-L
Manufacturer
Panduit
$8.80 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: UL Listed, CSA Certified, tested per EN 61238-1:2003/IEC 61238-1:2003 Class B, with Class 2r wire 10mm² - 630mm², UKCA compliant
Packaging Details
| UPC | : | 07498376989 |
| GTIN Package | : | 00074983769896 |
| Standard Package Volume Ft3 | : | 0.0530 |
| Standard Package Weight Pounds | : | 2.8000 |
| Std Package Height In | : | 3.5 |
| Std Package Height MM | : | 88.9 |
| Std Package Length In | : | 7.7 |
| Std Package Length MM | : | 195.58 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983769896 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Argentina |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Metric Class 5f-6f Copper Conductor Size (mm²) | : | 50 |
| Base Material | : | Copper |
| Maximum Voltage (kV) | : | 35 |
| Insulation Material | : | Non-Insulated |
| Wire Strip Length (mm) | : | 27.5 |
| Color Code | : | Black |
| Finish/Coating | : | Tin-Plated |
| Sub Brand | : | Pan-Lug™ |
| Overall Length (mm) | : | 52 |
| UL Temperature Rating (°C) | : | 90 |
| Metric Class 2r Copper Conductor Size (mm²) | : | 70 |
| Panduit Die Index Number | : | P45 |
| CSA Temperature Rating (°C) | : | 90 |
| Product Type | : | Metric Compression Splice |
| Barrel Type | : | Standard |
