Pan-Lug™ SCSF350-6 Compression Connectors - Splices
MFG #SCSF350-6
$58.95 / E
EACH
EACH
Product Description:

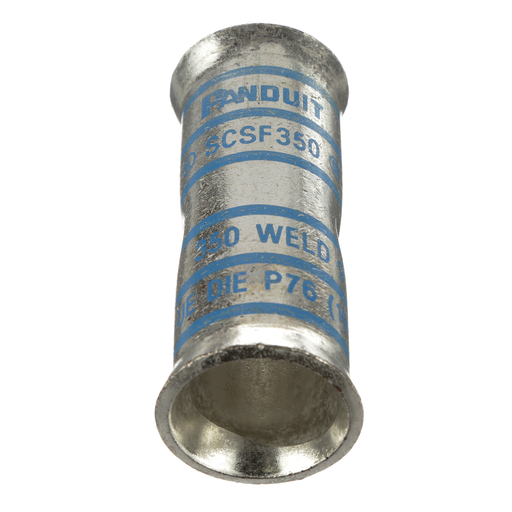

Copper butt splice, flared barrel, 350 kcmil flex and 373.7 kcmil locomotive cable.
HESCO Part Number
PANSCSF3506
UPC
074983557073
Manufacturer Part Number
SCSF350-6
Manufacturer
Panduit
Pan-Lug™ SCSF350-6 Compression Connectors - Splices
MFG #SCSF350-6
Product Description:
Copper butt splice, flared barrel, 350 kcmil flex and 373.7 kcmil locomotive cable.
HESCO Part Number
PANSCSF3506
UPC
074983557073
Manufacturer Part Number
SCSF350-6
Manufacturer
Panduit
$58.95 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: UL Listed and CSA Certified to 35 kV and temperature rated to 90°C
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Sub Brand | : | Pan-Lug™ |
| UL Temperature Rating (°C) | : | 90 |
| Overall Length (In.) | : | 2.94 |
| Overall Length (mm) | : | 74.7 |
| Insulation Material | : | Non-Insulated |
| Barrel Type | : | Flared |
| Maximum Voltage (kV) | : | 35 |
| Panduit Die Index Number | : | P76 |
| Finish/Coating | : | Tin-Plated |
| Wire Strip Length (mm) | : | 38.1 |
| Color Code | : | Blue |
| Base Material | : | Copper |
| CSA Temperature Rating (°C) | : | 90 |
| Product Type | : | Compression Splice |
| Wire Strip Length (In.) | : | 1-1/2 |
| Class K Copper Flex Conductor Size | : | 350 kcmil |
| DLO Copper Flex Conductor Size | : | 373.7 kcmil |
| Class M Copper Flex Conductor Size | : | 350 kcmil |
Packaging Details | ||
| UPC | : | 07498355707 |
| GTIN Package | : | 00074983557073 |
| Standard Package Volume Ft3 | : | 0.0328 |
| Standard Package Weight Pounds | : | 2.0100 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 4.9 |
| Std Package Length MM | : | 124.46 |
| Std Package Width In | : | 3.4 |
| Std Package Width MM | : | 86.36 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983557073 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
