Panduct® SD4EMI Noise Shield, Black, 3.86"x0.96", 4" Duct H, PK1
MFG #SD4EMI
$147.98 / E
(Must order in increments of 5/E)
(Must order in increments of 5/E)
Product Description:

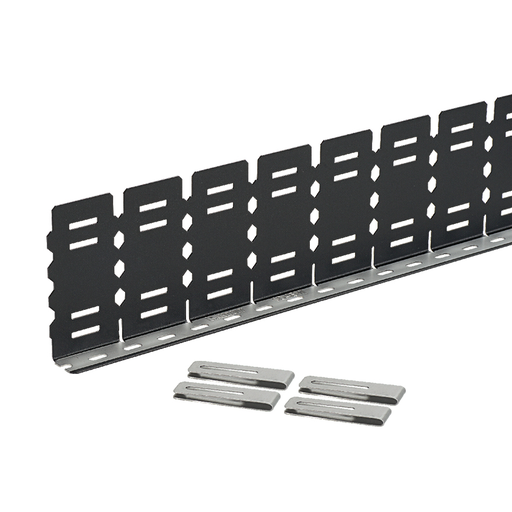

The SD4EMI Panduct PanelMax Noise Shield Kit reduces EMI/RFI noise between wiring for up to 20dB reduction in noise, or 90% NVR (equivalent to 6" of air spacing). Installs easily within Panduit wiring duct or when mounted separately. Segmented design for cutting into shorter sections. Designed for 4" high wiring duct. Zinc-Plated Steel. Kit includes two 3-foot sections, bonding clips, and anti-oxidizing paste. Color Black. 1 per package.
HESCO Part Number
PANSD4EMI
UPC
074983291199
Manufacturer Part Number
SD4EMI
Manufacturer
Panduit
Panduct® SD4EMI Noise Shield, Black, 3.86"x0.96", 4" Duct H, PK1
MFG #SD4EMI
Product Description:
The SD4EMI Panduct PanelMax Noise Shield Kit reduces EMI/RFI noise between wiring for up to 20dB reduction in noise, or 90% NVR (equivalent to 6" of air spacing). Installs easily within Panduit wiring duct or when mounted separately. Segmented design for cutting into shorter sections. Designed for 4" high wiring duct. Zinc-Plated Steel. Kit includes two 3-foot sections, bonding clips, and anti-oxidizing paste. Color Black. 1 per package.
HESCO Part Number
PANSD4EMI
UPC
074983291199
Manufacturer Part Number
SD4EMI
Manufacturer
Panduit
$147.98 / E
(Must order in increments of 5/E)
(Must order in increments of 5/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: CE Compliant, RoHS Compliant; UL Recognized; CSA Approved
- No
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Color | : | Black |
| Overall Width (mm) | : | 24.4 |
| Overall Length (ft.) | : | 3 |
| Application | : | Wiring Duct Accessory - Slotted Divider Wall |
| Sub Brand | : | Panduct® |
| Compatible Duct Height (In.) | : | 4 |
| Overall Width (In.) | : | 0.96 |
| Compatible Duct Height (mm) | : | 101.6 |
| Product Type | : | Noise Shield |
| Overall Height (mm) | : | 98.2 |
| For Use With | : | Panduit Wiring Duct 4" in height |
| Note | : | Reduces EMI/RFI noise between sensitive and noisy wiring fo rup to 20 dB reduction in noise. |
| Overall Height (In.) | : | 3.86 |
| Overall Length (m) | : | 0.91 |
Packaging Details | ||
| UPC | : | 07498329119 |
| GTIN Package | : | 00074983291199 |
| Standard Package Volume Ft3 | : | 0.3333 |
| Standard Package Weight Pounds | : | 3.9600 |
| Std Package Height In | : | 4.25 |
| Std Package Height MM | : | 107.95 |
| Std Package Length In | : | 36.375 |
| Std Package Length MM | : | 923.925 |
| Std Package Width In | : | 4.25 |
| Std Package Width MM | : | 107.95 |
| Std. Pkg. UOM | : | Kit |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Kit |
| EAN | : | 00074983291199 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 5.0000 |
| Pallet Quantity | : | 396 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 1,568.1600 |
| RoHS Compliant | : | Compliant |
