SE75PFR-CR8 Braided Expandable Sleeving
MFG #SE75PFR-CR8
$364.26 / E
EACH
EACH
Product Description:

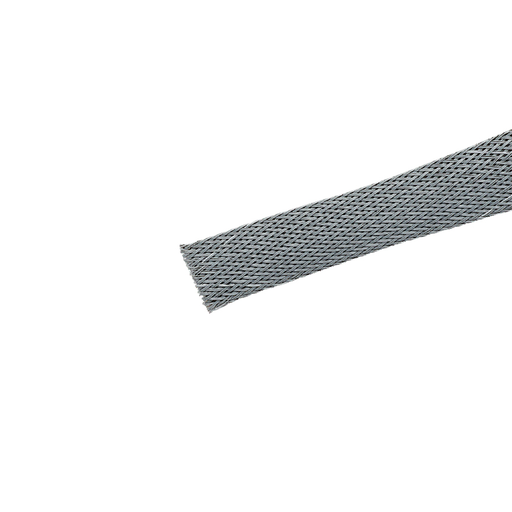

Braided Expandable Sleeving, .75" (19.1 mm) diameter, provides continuous abrasion resistance for wires, cables and tubing. The highly flexible open weave will not trap heat or humidity, Flame Retardant, Polyethylene Terephthalate, 100 ft (30.5 m) reel. Color Gray with White Tracer.
HESCO Part Number
PANSE75PFRCR8
UPC
074983370207
Manufacturer Part Number
SE75PFR-CR8
Manufacturer
Panduit
SE75PFR-CR8 Braided Expandable Sleeving
MFG #SE75PFR-CR8
Product Description:
Braided Expandable Sleeving, .75" (19.1 mm) diameter, provides continuous abrasion resistance for wires, cables and tubing. The highly flexible open weave will not trap heat or humidity, Flame Retardant, Polyethylene Terephthalate, 100 ft (30.5 m) reel. Color Gray with White Tracer.
HESCO Part Number
PANSE75PFRCR8
UPC
074983370207
Manufacturer Part Number
SE75PFR-CR8
Manufacturer
Panduit
$364.26 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA Certified, UL 1441 VW-1 Flammability, E45545-2 Rated, UL Recognized E116868; RoHS Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Flammability Rating | : | UL 1441 VW-1 |
| Maximum Diameter (In.) | : | 1.25 |
| Product Type | : | Braided Expandable Sleeving |
| Maximum Operating Temperature (°C) | : | 125 |
| Material | : | PET |
| Nominal Diameter (In.) | : | 0.75 |
| Overall Length (ft.) | : | 100 |
| Application | : | (1) Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; (2) Highly Flexible Open Weave will not Trap Heat or Humidity; (3) Allows for Use with Irregular Shapes |
| Maximum Bundle Diameter (In.) | : | 1.25 |
| Color | : | Gray |
| Minimum Operating Temperature (°C) | : | -70 |
| Maximum Operating Temperature (°F) | : | 257 |
| Resistance Properties | : | Flame-Retardant |
| Maximum Diameter (mm) | : | 31.8 |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Maximum Bundle Diameter (mm) | : | 31.8 |
| Overall Length (m) | : | 30.48 |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Minimum Operating Temperature (°F) | : | -94 |
| Nominal Diameter (mm) | : | 19.1 |
Packaging Details | ||
| UPC | : | 07498337020 |
| GTIN Package | : | 00074983370207 |
| Standard Package Volume Ft3 | : | 0.0866 |
| Standard Package Weight Pounds | : | 1.5250 |
| Std Package Height In | : | 3.25 |
| Std Package Height MM | : | 82.55 |
| Std Package Length In | : | 5.95 |
| Std Package Length MM | : | 151.13 |
| Std Package Width In | : | 5.95 |
| Std Package Width MM | : | 151.13 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| GTIN Carton | : | 50074983370202 |
| Standard Carton Volume Ft3 | : | 0.3465 |
| Standard Carton Weight Pounds | : | 6.1000 |
| Std Carton Height In | : | 7.3 |
| Std Carton Height MM | : | 185.42 |
| Std Carton Length In | : | 13.65 |
| Std Carton Length MM | : | 346.71 |
| Std Carton Width In | : | 6.85 |
| Std Carton Width MM | : | 173.99 |
| Std Ctn Qty | : | 4 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983370207 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 560 |
| Pallet Volume | : | 48.510000 |
| Pallet Weight | : | 854.0000 |
| RoHS Compliant | : | Compliant |
