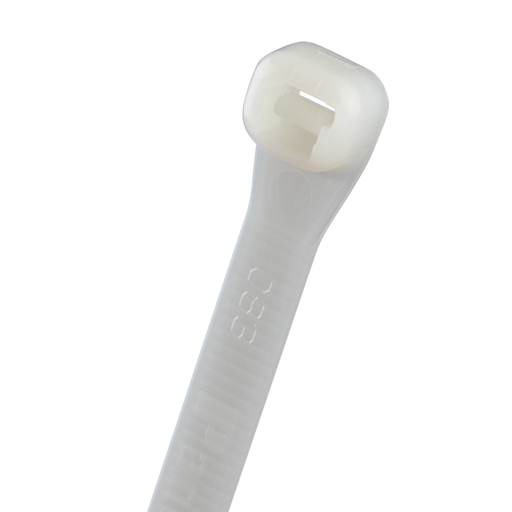

Super-Grip® SG300S-C Super-Grip Cable Tie, PA6.6, 12.4"L, 75lb, PK100
MFG #SG300S-C
$0.54 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:
Super-Grip® Cable Ties are designed with high strength and flexibility to tightly grip bundles and resist lateral movement despite the rough conditions of MRO and construction environments. Plus, with Nylon 6.6 material, it's ideal for general indoor environments. Standard cross section, 12.4in, Tensile Strength: 334, natural, 100pc.
HESCO Part Number
PANSG300SC
UPC
074983379125
Manufacturer Part Number
SG300S-C
Manufacturer
Panduit
Super-Grip® SG300S-C Super-Grip Cable Tie, PA6.6, 12.4"L, 75lb, PK100
MFG #SG300S-C
Product Description:
Super-Grip® Cable Ties are designed with high strength and flexibility to tightly grip bundles and resist lateral movement despite the rough conditions of MRO and construction environments. Plus, with Nylon 6.6 material, it's ideal for general indoor environments. Standard cross section, 12.4in, Tensile Strength: 334, natural, 100pc.
HESCO Part Number
PANSG300SC
UPC
074983379125
Manufacturer Part Number
SG300S-C
Manufacturer
Panduit
$0.54 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: CSA Certified, UL Listed (File #E56854), RoHS Compliant
- No
Specifications
| Country of Origin | : | Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Body Thickness (mm) | : | 1.3 |
| Minimum Bundle Diameter (In.) | : | 0.16 |
| Minimum Loop Tensile Strength (lb) | : | 75 |
| Minimum Loop Tensile Strength (N) | : | 334 |
| Application | : | General |
| Minimum Bundle Diameter (mm) | : | 4.1 |
| Body Width (mm) | : | 5.7 |
| Body Thickness (In.) | : | 0.05 |
| Maximum Bundle Diameter (In.) | : | 3.2 |
| Material | : | Nylon 6.6 |
| Color | : | Natural |
| Environment | : | Indoor |
| Minimum Operating Temperature (°F) | : | -76 |
| Maximum Bundle Diameter (mm) | : | 81.3 |
| Minimum Installation Temperature (°C) | : | 70 |
| Body Width (In.) | : | 0.225 |
| Sub Brand | : | Super-Grip® |
| For Use With | : | GTS, GTSL, GS2B, GTH, GS4H, PTS, PTH, PPTS, STS2, STH2 |
| Product Type | : | Cable Tie |
| Maximum Operating Temperature (°C) | : | 85 |
| Minimum Operating Temperature (°C) | : | -60 |
| Overall Length (mm) | : | 315 |
| Overall Length (In.) | : | 12.4 |
| Minimum Installation Temperature (°F) | : | -40 |
| Maximum Operating Temperature (°F) | : | 185 |
| Material Description | : | Nylon 6.6 |
Packaging Details | ||
| UPC | : | 07498337912 |
| GTIN Package | : | 00074983379125 |
| Standard Package Volume Ft3 | : | 0.0556 |
| Standard Package Weight Pounds | : | 0.5000 |
| Std Package Height In | : | 1.65 |
| Std Package Height MM | : | 41.91 |
| Std Package Length In | : | 13.6 |
| Std Package Length MM | : | 345.44 |
| Std Package Width In | : | 5.65 |
| Std Package Width MM | : | 143.51 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983379120 |
| Standard Carton Volume Ft3 | : | 0.5563 |
| Standard Carton Weight Pounds | : | 5.0000 |
| Std Carton Height In | : | 6.05 |
| Std Carton Height MM | : | 153.67 |
| Std Carton Length In | : | 16.65 |
| Std Carton Length MM | : | 422.91 |
| Std Carton Width In | : | 8.8 |
| Std Carton Width MM | : | 223.52 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983379125 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 96,000 |
| Pallet Volume | : | 53.400842 |
| Pallet Weight | : | 480.0000 |
| RoHS Compliant | : | Compliant |
