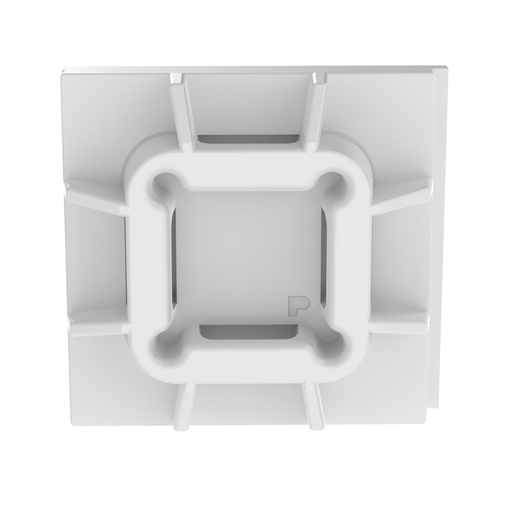

Super-Grip® SGABM30-A-C Super-Grip™ Mount, White, PA 6.6, Rubber Adh, 1.12x1.12"
MFG #SGABM30-A-C
$1.31 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:
The Panduit SGABM30-A-C super grip rubber adhesive backed cable tie mounts are made of Nylon 6.6 and are for use with miniature and intermediate Super-Grip cross-section cable ties. Designed for indoor use, especially in areas where space is limited. They measure 1.12" x 1.12" (28.5mm x 28.5mm), supplied in strips of 2, are white in color and come in packages of 100.
HESCO Part Number
PANSGABM30AC
UPC
074983713875
Manufacturer Part Number
SGABM30-A-C
Manufacturer
Panduit
Super-Grip® SGABM30-A-C Super-Grip™ Mount, White, PA 6.6, Rubber Adh, 1.12x1.12"
MFG #SGABM30-A-C
Product Description:
The Panduit SGABM30-A-C super grip rubber adhesive backed cable tie mounts are made of Nylon 6.6 and are for use with miniature and intermediate Super-Grip cross-section cable ties. Designed for indoor use, especially in areas where space is limited. They measure 1.12" x 1.12" (28.5mm x 28.5mm), supplied in strips of 2, are white in color and come in packages of 100.
HESCO Part Number
PANSGABM30AC
UPC
074983713875
Manufacturer Part Number
SGABM30-A-C
Manufacturer
Panduit
$1.31 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CE Compliant,RoHS Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Environment | : | Indoor |
| Maximum Operating Temperature (°C) | : | 49 |
| Sub Brand | : | Super-Grip® |
| For Use With | : | Super-Grip Miniature, Intermediate, Standard Cross-Section Ties |
| Application | : | Low Profile Super-Grip ™ Adhesive Backed Cable Tie Mounts, Used Where Space is Limited, to Keep Bundle Close to Mounting Surface and with Super-Grip ™ Cable Ties |
| Static Load Capacity (kg) | : | 0.287 |
| Overall Height (In.) | : | 0.3 |
| Color | : | White |
| Material | : | Nylon 6.6 |
| Minimum Operating Temperature (°F) | : | -20 |
| Overall Width (In.) | : | 1.12 |
| Static Load Capacity (lb) | : | 0.63 |
| Product Type | : | Cable Tie Mount |
| Mounting Hole Thread Size | : | #6 |
| Minimum Operating Temperature (°C) | : | -29 |
| Mount Method | : | Adhesive Tape |
| Overall Width (mm) | : | 28.5 |
| Overall Length (mm) | : | 28.5 |
| Overall Length (In.) | : | 1.13 |
| Overall Height (mm) | : | 7.6 |
| Maximum Operating Temperature (°F) | : | 120 |
| Material Description | : | Nylon 6.6 |
Packaging Details | ||
| UPC | : | 07498371387 |
| GTIN Package | : | 00074983713875 |
| Standard Package Volume Ft3 | : | 0.0568 |
| Standard Package Weight Pounds | : | 0.4700 |
| Std Package Height In | : | 2.3 |
| Std Package Height MM | : | 58.42 |
| Std Package Length In | : | 8.8 |
| Std Package Length MM | : | 223.52 |
| Std Package Width In | : | 5.85 |
| Std Package Width MM | : | 148.59 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983713870 |
| Standard Carton Volume Ft3 | : | 0.2839 |
| Standard Carton Weight Pounds | : | 2.3500 |
| Std Carton Height In | : | 4.7 |
| Std Carton Height MM | : | 119.38 |
| Std Carton Length In | : | 10.55 |
| Std Carton Length MM | : | 267.97 |
| Std Carton Width In | : | 10.3 |
| Std Carton Width MM | : | 261.62 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983713875 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 80,000 |
| Pallet Volume | : | 45.421775 |
| Pallet Weight | : | 376.0000 |
| RoHS Compliant | : | Compliant |
