SMS-A-C14 Cable Tie Mount
MFG #SMS-A-C14
$2.78 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:

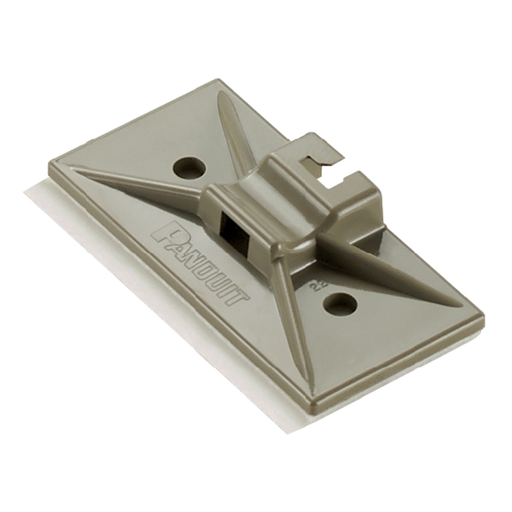

The snap-in cable tie mount in gray is applied with rubber adhesive tape. It is made of ABS for indoor environments. It comes in packages of 100.
HESCO Part Number
PANSMSAC14
UPC
074983580088
Manufacturer Part Number
SMS-A-C14
Manufacturer
Panduit
SMS-A-C14 Cable Tie Mount
MFG #SMS-A-C14
Product Description:
The snap-in cable tie mount in gray is applied with rubber adhesive tape. It is made of ABS for indoor environments. It comes in packages of 100.
HESCO Part Number
PANSMSAC14
UPC
074983580088
Manufacturer Part Number
SMS-A-C14
Manufacturer
Panduit
$2.78 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: cULus 62275 Type 1,11 (E136577), CE Compliant, RoHS Compliant
- No
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Color | : | Gray |
| Overall Height (mm) | : | 8.9 |
| Overall Length (mm) | : | 50.8 |
| Overall Height (In.) | : | 0.35 |
| Flammability Rating | : | UL94-HB |
| Minimum Operating Temperature (°F) | : | 32 |
| Mount Method | : | Adhesive Tape |
| Overall Length (In.) | : | 2 |
| Overall Width (In.) | : | 1 |
| Minimum Operating Temperature (°C) | : | 0 |
| Material | : | ABS |
| Product Type | : | Cable Tie Mount |
| Maximum Operating Temperature (°C) | : | 70 |
| Maximum Operating Temperature (°F) | : | 158 |
| Static Load Capacity (kg) | : | 0.454 |
| Static Load Capacity (lb) | : | 1 |
| Application | : | Snap-In Cable Tie Mounts – Mechanically Applied, Used with Panduit Standard Cross Section Cable Ties Including Plt1S, Plt1.5S, Plt2S, Prt1.5S And Prt2S. Used to Quickly Route Wire and Cable Where Mounting Holes Cannot be Drilled |
| Environment | : | Indoor |
| Minimum Loop Tensile Strength (N) | : | 222 |
| Overall Width (mm) | : | 25.4 |
| For Use With | : | Standard Cross-Section Ties |
| Minimum Loop Tensile Strength (lb) | : | 50 |
Packaging Details | ||
| UPC | : | 07498358008 |
| GTIN Package | : | 00074983580088 |
| Standard Package Volume Ft3 | : | 0.0839 |
| Standard Package Weight Pounds | : | 0.9400 |
| Std Package Height In | : | 2.5 |
| Std Package Height MM | : | 63.5 |
| Std Package Length In | : | 9 |
| Std Package Length MM | : | 228.6 |
| Std Package Width In | : | 7.95 |
| Std Package Width MM | : | 201.93 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983580083 |
| Standard Carton Volume Ft3 | : | 0.4196 |
| Standard Carton Weight Pounds | : | 4.7000 |
| Std Carton Height In | : | 7.15 |
| Std Carton Height MM | : | 181.61 |
| Std Carton Length In | : | 11.15 |
| Std Carton Length MM | : | 283.21 |
| Std Carton Width In | : | 9.1 |
| Std Carton Width MM | : | 231.14 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983580088 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 40.283433 |
| Pallet Weight | : | 451.2000 |
| RoHS Compliant | : | Compliant |
