Sta-Strap® SSC4H-S25-D0 Cable Tie
MFG #SSC4H-S25-D0
$1.63 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:

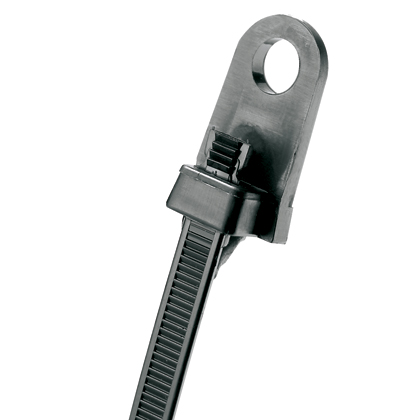

Sta-Strap® clamp tie, light-heavy cross section, 1/4 (M6) screw, 15.6 (395mm) length, weather resistant nylon 6.6, black.
HESCO Part Number
PANSSC4HS25D0
UPC
074983571475
Manufacturer Part Number
SSC4H-S25-D0
Manufacturer
Panduit
Sta-Strap® SSC4H-S25-D0 Cable Tie
MFG #SSC4H-S25-D0
Product Description:
Sta-Strap® clamp tie, light-heavy cross section, 1/4 (M6) screw, 15.6 (395mm) length, weather resistant nylon 6.6, black.
HESCO Part Number
PANSSC4HS25D0
UPC
074983571475
Manufacturer Part Number
SSC4H-S25-D0
Manufacturer
Panduit
$1.63 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CE, RoHS Compliant, UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854)
Specifications
| Country of Origin | : | Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Body Width (In.) | : | 0.3 |
| Color | : | Black |
| Minimum Operating Temperature (°C) | : | -60 |
| Resistance Properties | : | UV-Resistant, Weather-Resistant |
| Maximum Bundle Diameter (In.) | : | 4 |
| Minimum Installation Temperature (°C) | : | -20 |
| Minimum Bundle Diameter (mm) | : | 1.5 |
| Minimum Operating Temperature (°F) | : | -76 |
| Application | : | General |
| Sub Brand | : | Sta-Strap® |
| Environment | : | Outdoor |
| Screw Size | : | 1/4" |
| For Use With | : | Cables |
| Overall Length (mm) | : | 395 |
| Material | : | Nylon 6.6 |
| Overall Length (In.) | : | 15.55 |
| Minimum Loop Tensile Strength (N) | : | 534 |
| Minimum Loop Tensile Strength (lb) | : | 120 |
| Maximum Bundle Diameter (mm) | : | 102 |
| Maximum Operating Temperature (°C) | : | 85 |
| Body Width (mm) | : | 7.6 |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| Minimum Installation Temperature (°F) | : | -4 |
| Product Type | : | Cable Tie |
| Maximum Operating Temperature (°F) | : | 185 |
Packaging Details | ||
| UPC | : | 07498357147 |
| GTIN Package | : | 00074983571475 |
| Standard Package Volume Ft3 | : | 0.5143 |
| Standard Package Weight Pounds | : | 7.2000 |
| Std Package Height In | : | 4.6 |
| Std Package Height MM | : | 116.84 |
| Std Package Length In | : | 19.75 |
| Std Package Length MM | : | 501.65 |
| Std Package Width In | : | 13.85 |
| Std Package Width MM | : | 351.79 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 500 |
| GTIN Carton | : | 50074983571470 |
| Standard Carton Volume Ft3 | : | 2.5715 |
| Standard Carton Weight Pounds | : | 36.0000 |
| Std Carton Height In | : | 18.05 |
| Std Carton Height MM | : | 458.47 |
| Std Carton Length In | : | 23.15 |
| Std Carton Length MM | : | 588.01 |
| Std Carton Width In | : | 11.25 |
| Std Carton Width MM | : | 285.75 |
| Std Ctn Qty | : | 2500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983571475 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 40,000 |
| Pallet Volume | : | 41.144444 |
| Pallet Weight | : | 576.0000 |
| RoHS Compliant | : | Compliant |
