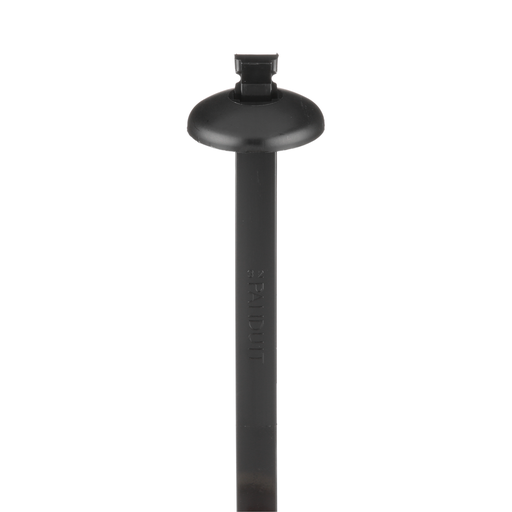

Sta-Strap® SSPM4H-TL300 Cable Tie
MFG #SSPM4H-TL300
$1.33 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:
Sta-Strap® Cable Ties have a unique design that ties directly to a chassis or panel without separate fasteners or mounting devises. Plus, with heat stabilized weather-resistant Nylon material, it's ideal for high-vibration, high-UV environments up to 239 degrees. No center pilot, Heavy cross section, 14.8, Tensile Strength: 534, black, 250pc.
HESCO Part Number
PANSSPM4HTL300
UPC
074983202287
Manufacturer Part Number
SSPM4H-TL300
Manufacturer
Panduit
Sta-Strap® SSPM4H-TL300 Cable Tie
MFG #SSPM4H-TL300
Product Description:
Sta-Strap® Cable Ties have a unique design that ties directly to a chassis or panel without separate fasteners or mounting devises. Plus, with heat stabilized weather-resistant Nylon material, it's ideal for high-vibration, high-UV environments up to 239 degrees. No center pilot, Heavy cross section, 14.8, Tensile Strength: 534, black, 250pc.
HESCO Part Number
PANSSPM4HTL300
UPC
074983202287
Manufacturer Part Number
SSPM4H-TL300
Manufacturer
Panduit
$1.33 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CSA Certified, UL Compliant 62275 Type 1, UL Recognized (File #E56854), RoHS Compliant
Specifications
| Country of Origin | : | Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Sub Brand | : | Sta-Strap® |
| Overall Length (mm) | : | 376 |
| Resistance Properties | : | Heat-Resistant, UV-Resistant, Weather-Resistant |
| For Use With | : | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Body Width (mm) | : | 7.6 |
| Minimum Installation Temperature (°F) | : | -40 |
| Minimum Loop Tensile Strength (lb) | : | 120 |
| Minimum Operating Temperature (°F) | : | -76 |
| Minimum Bundle Diameter (mm) | : | 1.5 |
| Minimum Loop Tensile Strength (N) | : | 534 |
| Environment | : | Outdoor |
| Color | : | Black |
| Product Type | : | Cable Tie |
| Minimum Operating Temperature (°C) | : | -60 |
| Maximum Operating Temperature (°C) | : | 115 |
| Maximum Bundle Diameter (mm) | : | 101.6 |
| Maximum Operating Temperature (°F) | : | 239 |
| Application | : | High Temperature |
| Body Width (In.) | : | 0.3 |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| Maximum Bundle Diameter (In.) | : | 4 |
| Material | : | Nylon 6.6 |
| Minimum Installation Temperature (°C) | : | 70 |
| Overall Length (In.) | : | 14.8 |
Packaging Details | ||
| UPC | : | 07498320228 |
| GTIN Package | : | 00074983202287 |
| Standard Package Volume Ft3 | : | 0.3411 |
| Standard Package Weight Pounds | : | 3.4500 |
| Std Package Height In | : | 2.7 |
| Std Package Height MM | : | 68.58 |
| Std Package Length In | : | 16.7 |
| Std Package Length MM | : | 424.18 |
| Std Package Width In | : | 11.9 |
| Std Package Width MM | : | 302.26 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 250 |
| GTIN Carton | : | 50074983202282 |
| Standard Carton Volume Ft3 | : | 3.4111 |
| Standard Carton Weight Pounds | : | 34.5000 |
| Std Carton Height In | : | 18.41 |
| Std Carton Height MM | : | 467.614 |
| Std Carton Length In | : | 21.96 |
| Std Carton Length MM | : | 557.784 |
| Std Carton Width In | : | 14.58 |
| Std Carton Width MM | : | 370.332 |
| Std Ctn Qty | : | 2500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983202287 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 30,000 |
| Pallet Volume | : | 40.933715 |
| Pallet Weight | : | 414.0000 |
| RoHS Compliant | : | Compliant |
