CU Patch Crd,Cat 6A,S/FTP,5ft,IG
MFG #STP6X5IG
$34.34 / E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
Product Description:

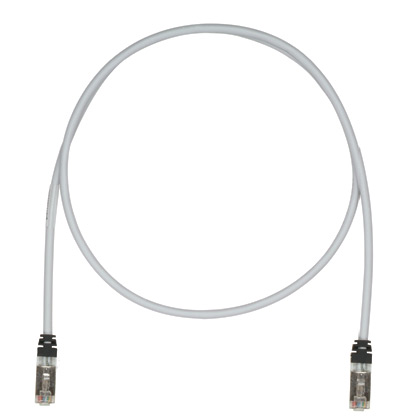

This TX6A™ 10Gig Cat 6A STP Patch Cord is a 5-Foot, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
HESCO Part Number
PANSTP6X5IG
UPC
074983011285
Manufacturer Part Number
STP6X5IG
Manufacturer
Panduit
CU Patch Crd,Cat 6A,S/FTP,5ft,IG
MFG #STP6X5IG
Product Description:
This TX6A™ 10Gig Cat 6A STP Patch Cord is a 5-Foot, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
HESCO Part Number
PANSTP6X5IG
UPC
074983011285
Manufacturer Part Number
STP6X5IG
Manufacturer
Panduit
$34.34 / E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
- Features
- Specifications
- Resources
- Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards ; Meets ANSI/TIA-1096-A requirements (formerly FCC Part 68); Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863 approved; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; CE Compliant; RoHS compliant
Specifications
| Country of Origin | : | Costa Rica, Mexico, China, Romania |
| Any Reason Not to Sell | : | N |
| Product Segment | : | EDI-ENT |
| IEC Variant | : | 60603-7 |
| Minimum Operating Temperature (°F) | : | 14 |
| Patch Cord Type | : | Shielded |
| Application | : | (1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging |
| Boot Color | : | Black |
| Flammability Rating | : | CM/LSZH |
| Product Type | : | Patch Cord |
| Connector 1 Type | : | Modular Plug |
| Nominal Cable Outside Diameter (mm) | : | 6.1 |
| Maximum Storage Temperature (°C) | : | 70 |
| Cable Construction | : | S/FTP |
| Plug Type | : | 8 Position |
| Minimum Storage Temperature (°F) | : | -40 |
| Minimum Operating Temperature (°C) | : | -10 |
| Overall Length (ft.) | : | 5 |
| Color | : | International Gray |
| Performance Level | : | Category 6A |
| Jacket Material | : | LSZH Material |
| RapidID™ Enabled | : | Yes |
| PoE Compatibility | : | PoE/PoE+/PoE++ |
| Sub Brand | : | Pan-Net® |
| Conductor Type | : | Stranded |
| Connector 2 Type | : | Modular Plug |
| Nominal Cable Outside Diameter (In.) | : | 0.24 |
| Maximum Operating Temperature (°F) | : | 140 |
| Plug Housing Material | : | Polycarbonate |
| Maximum Storage Temperature (°F) | : | 158 |
| Minimum Storage Temperature (°C) | : | -40 |
| Wiring Scheme | : | T568A/T568B |
| Maximum Operating Temperature (°C) | : | 60 |
| Overall Length (m) | : | 1.52 |
| Conductor Gauge | : | 26 AWG |
Packaging Details | ||
| UPC | : | 07498301128 |
| GTIN Package | : | 00074983011285 |
| Standard Package Volume Ft3 | : | 0.0240 |
| Standard Package Weight Pounds | : | 0.2188 |
| Std Package Height In | : | .9 |
| Std Package Height MM | : | 22.86 |
| Std Package Length In | : | 9.25 |
| Std Package Length MM | : | 234.95 |
| Std Package Width In | : | 8.95 |
| Std Package Width MM | : | 227.33 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| GTIN Carton | : | 50074983011280 |
| Standard Carton Volume Ft3 | : | 0.2403 |
| Standard Carton Weight Pounds | : | 2.1880 |
| Std Carton Height In | : | 3.8 |
| Std Carton Height MM | : | 96.52 |
| Std Carton Length In | : | 10.9 |
| Std Carton Length MM | : | 276.86 |
| Std Carton Width In | : | 9.2 |
| Std Carton Width MM | : | 233.68 |
| Std Ctn Qty | : | 10 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983011285 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 10.0000 |
| Pallet Quantity | : | 2,240 |
| Pallet Volume | : | 53.823767 |
| Pallet Weight | : | 490.1120 |
| RoHS Compliant | : | Compliant |
