T12F-C0 Spiral Wrap
MFG #T12F-C0
$83.23 / E
EACH
EACH
Product Description:

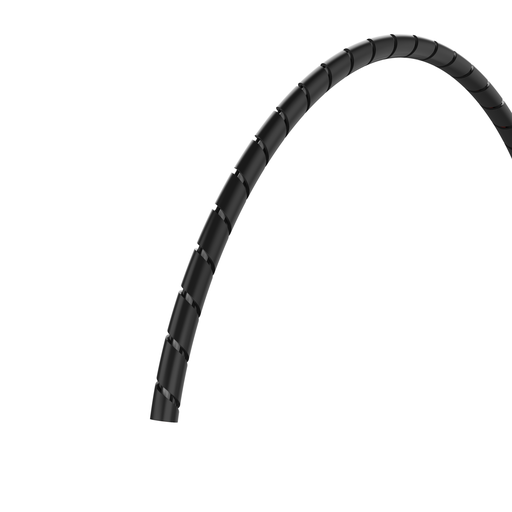

The T12F-C0 Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 0.12" (3.2 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.0625" to 0.5" (1.6 mm to 12.7 mm). Color Black.
HESCO Part Number
PANT12FC0
UPC
074983706013
Manufacturer Part Number
T12F-C0
Manufacturer
Panduit
T12F-C0 Spiral Wrap
MFG #T12F-C0
Product Description:
The T12F-C0 Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 0.12" (3.2 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.0625" to 0.5" (1.6 mm to 12.7 mm). Color Black.
HESCO Part Number
PANT12FC0
UPC
074983706013
Manufacturer Part Number
T12F-C0
Manufacturer
Panduit
$83.23 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: UL Recognized E141152
Packaging Details
| UPC | : | 07498370601 |
| GTIN Package | : | 00074983706013 |
| Standard Package Volume Ft3 | : | 0.0753 |
| Standard Package Weight Pounds | : | 0.6500 |
| Std Package Height In | : | 1.75 |
| Std Package Height MM | : | 44.45 |
| Std Package Length In | : | 8.8 |
| Std Package Length MM | : | 223.52 |
| Std Package Width In | : | 8.45 |
| Std Package Width MM | : | 214.63 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983706013 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Material | : | Polyethylene |
| Wall Thickness (mm) | : | 0.8 |
| Maximum Operating Temperature (°C) | : | 50 |
| Wall Thickness (In.) | : | 0.03 |
| Outer Diameter (In.) | : | 0.12 |
| Minimum Operating Temperature (°C) | : | -40 |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| Flammability Rating | : | UL94-HB |
| Maximum Operating Temperature (°F) | : | 122 |
| Maximum Bundle Diameter (mm) | : | 12.7 |
| Color | : | Black |
| Minimum Operating Temperature (°F) | : | -40 |
| Environment | : | Weather Resistant |
| Maximum Bundle Diameter (In.) | : | 0.5 |
| Overall Length (ft.) | : | 100 |
| Resistance Properties | : | Abrasion-Resistant |
| Application | : | (1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Minimum Bundle Diameter (mm) | : | 1.6 |
| Product Type | : | Spiral Wrap |
| Overall Length (m) | : | 30.48 |
| Outer Diameter (mm) | : | 3.2 |
Videos 1
- Standards Met: UL Recognized E141152
Packaging Details
UPC : 07498370601 GTIN Package : 00074983706013 Standard Package Volume Ft3 : 0.0753 Standard Package Weight Pounds : 0.6500 Std Package Height In : 1.75 Std Package Height MM : 44.45 Std Package Length In : 8.8 Std Package Length MM : 223.52 Std Package Width In : 8.45 Std Package Width MM : 214.63 Std. Pkg. UOM : Roll UOM EA PK : EA Std. Pkg. Qty. : 1 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Roll EAN : 00074983706013 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Material : Polyethylene Wall Thickness (mm) : 0.8 Maximum Operating Temperature (°C) : 50 Wall Thickness (In.) : 0.03 Outer Diameter (In.) : 0.12 Minimum Operating Temperature (°C) : -40 Minimum Bundle Diameter (In.) : 0.06 Flammability Rating : UL94-HB Maximum Operating Temperature (°F) : 122 Maximum Bundle Diameter (mm) : 12.7 Color : Black Minimum Operating Temperature (°F) : -40 Environment : Weather Resistant Maximum Bundle Diameter (In.) : 0.5 Overall Length (ft.) : 100 Resistance Properties : Abrasion-Resistant Application : (1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing Minimum Bundle Diameter (mm) : 1.6 Product Type : Spiral Wrap Overall Length (m) : 30.48 Outer Diameter (mm) : 3.2 - Part Drawings
Part Drawings 1
Selection GuidesSelection Guides 1
Videos - Videos 1
