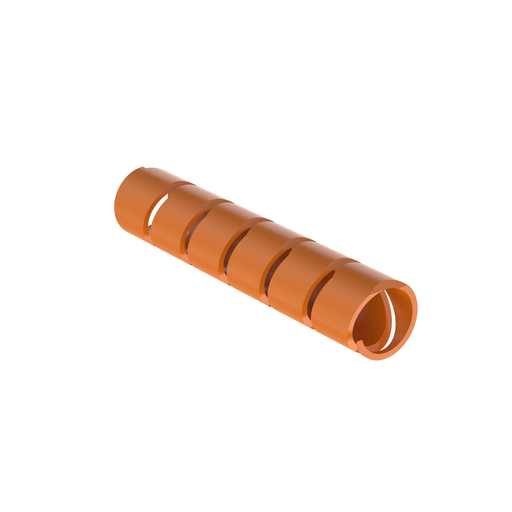

T25F-C3Y Spiral Wrap, Orange, PE, 0.1875" Min Dia., PK1
MFG #T25F-C3Y
$96.59 / e
EACH
EACH
Product Description:
The T25F-C3Y Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 0.25" (6.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.1875" to 2" (4.8 mm to 50.8 mm). Color Orange.
HESCO Part Number
PANT25FC3Y
UPC
074983422357
Manufacturer Part Number
T25F-C3Y
Manufacturer
Panduit
T25F-C3Y Spiral Wrap, Orange, PE, 0.1875" Min Dia., PK1
MFG #T25F-C3Y
Product Description:
The T25F-C3Y Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 0.25" (6.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.1875" to 2" (4.8 mm to 50.8 mm). Color Orange.
HESCO Part Number
PANT25FC3Y
UPC
074983422357
Manufacturer Part Number
T25F-C3Y
Manufacturer
Panduit
$96.59 / e
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: UL Recognized - E141152; UL94HB
Packaging Details
| UPC | : | 07498342235 |
| GTIN Package | : | 00074983422357 |
| Standard Package Volume Ft3 | : | 0.2649 |
| Standard Package Weight Pounds | : | 2.0000 |
| Std Package Height In | : | 4.4 |
| Std Package Height MM | : | 111.76 |
| Std Package Length In | : | 10.4 |
| Std Package Length MM | : | 264.16 |
| Std Package Width In | : | 10.35 |
| Std Package Width MM | : | 262.89 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983422357 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 160 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 320.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Wall Thickness (mm) | : | 1 |
| Application | : | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Minimum Bundle Diameter (mm) | : | 4.8 |
| Flammability Rating | : | UL94-HB |
| Overall Length (ft.) | : | 100 |
| Minimum Bundle Diameter (In.) | : | 0.1875 |
| Resistance Properties | : | Abrasion-Resistant |
| Outer Diameter (mm) | : | 6.4 |
| Maximum Operating Temperature (°F) | : | 122 |
| Minimum Operating Temperature (°C) | : | -40 |
| Maximum Bundle Diameter (In.) | : | 2 |
| Maximum Operating Temperature (°C) | : | 50 |
| Product Type | : | Spiral Wrap |
| Overall Length (m) | : | 30.48 |
| Outer Diameter (In.) | : | 0.25 |
| Maximum Bundle Diameter (mm) | : | 50.8 |
| Environment | : | Indoor |
| Minimum Operating Temperature (°F) | : | -40 |
| Wall Thickness (In.) | : | 0.045 |
| Color | : | Orange |
| Material | : | Polyethylene |
Videos 1
- Standards Met: UL Recognized - E141152; UL94HB
Packaging Details
UPC : 07498342235 GTIN Package : 00074983422357 Standard Package Volume Ft3 : 0.2649 Standard Package Weight Pounds : 2.0000 Std Package Height In : 4.4 Std Package Height MM : 111.76 Std Package Length In : 10.4 Std Package Length MM : 264.16 Std Package Width In : 10.35 Std Package Width MM : 262.89 Std. Pkg. UOM : Roll UOM EA PK : EA Std. Pkg. Qty. : 1 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Roll EAN : 00074983422357 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 160 Pallet Volume : 0.000000 Pallet Weight : 320.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Wall Thickness (mm) : 1 Application : Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing Minimum Bundle Diameter (mm) : 4.8 Flammability Rating : UL94-HB Overall Length (ft.) : 100 Minimum Bundle Diameter (In.) : 0.1875 Resistance Properties : Abrasion-Resistant Outer Diameter (mm) : 6.4 Maximum Operating Temperature (°F) : 122 Minimum Operating Temperature (°C) : -40 Maximum Bundle Diameter (In.) : 2 Maximum Operating Temperature (°C) : 50 Product Type : Spiral Wrap Overall Length (m) : 30.48 Outer Diameter (In.) : 0.25 Maximum Bundle Diameter (mm) : 50.8 Environment : Indoor Minimum Operating Temperature (°F) : -40 Wall Thickness (In.) : 0.045 Color : Orange Material : Polyethylene - Part Drawings
