T38FR-C20Y Spiral Wrap, Black, FR PE, 0.3125" Min Dia., PK1
MFG #T38FR-C20Y
$263.64 / E
EACH
EACH
Product Description:

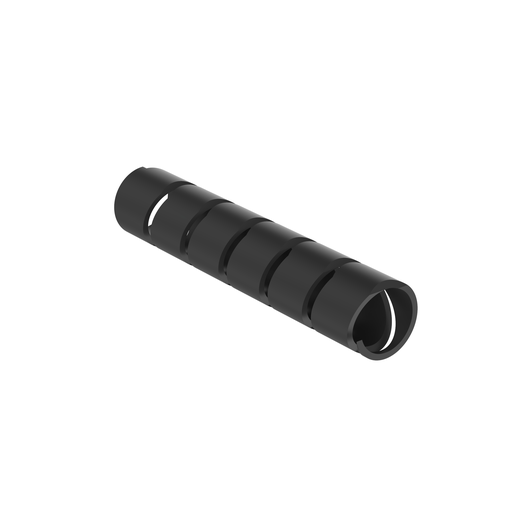

The T38FR-C20Y Flame Retardant Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection for use with irregular shapes. Rated for use up to 122°F (50°C). 0.38" (9.5 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.3125" to 3" (7.9 mm to 76.2 mm). Color Black.
HESCO Part Number
PANT38FRC20Y
UPC
074983107858
Manufacturer Part Number
T38FR-C20Y
Manufacturer
Panduit
T38FR-C20Y Spiral Wrap, Black, FR PE, 0.3125" Min Dia., PK1
MFG #T38FR-C20Y
Product Description:
The T38FR-C20Y Flame Retardant Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection for use with irregular shapes. Rated for use up to 122°F (50°C). 0.38" (9.5 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.3125" to 3" (7.9 mm to 76.2 mm). Color Black.
HESCO Part Number
PANT38FRC20Y
UPC
074983107858
Manufacturer Part Number
T38FR-C20Y
Manufacturer
Panduit
$263.64 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL Recognized - E141152
Packaging Details
| UPC | : | 07498310785 |
| GTIN Package | : | 00074983107858 |
| Standard Package Volume Ft3 | : | 0.8359 |
| Standard Package Weight Pounds | : | 5.3000 |
| Std Package Height In | : | 6.8 |
| Std Package Height MM | : | 172.72 |
| Std Package Length In | : | 14.5 |
| Std Package Length MM | : | 368.3 |
| Std Package Width In | : | 14.45 |
| Std Package Width MM | : | 367.03 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983107858 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 63 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 333.9000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States, Denmark |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Product Type | : | Spiral Wrap |
| Overall Length (ft.) | : | 100 |
| Minimum Bundle Diameter (mm) | : | 7.9 |
| Maximum Operating Temperature (°F) | : | 122 |
| Minimum Operating Temperature (°F) | : | -4 |
| Wall Thickness (In.) | : | 0.055 |
| Outer Diameter (mm) | : | 9.5 |
| Color | : | Black |
| Material | : | Polyethylene |
| Environment | : | Indoor |
| Application | : | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Maximum Operating Temperature (°C) | : | 50 |
| Overall Length (m) | : | 30.48 |
| Outer Diameter (In.) | : | 0.38 |
| Resistance Properties | : | Abrasion-Resistant, Flame-Retardant |
| Wall Thickness (mm) | : | 1.4 |
| Maximum Bundle Diameter (mm) | : | 76.2 |
| Minimum Bundle Diameter (In.) | : | 0.3125 |
| Maximum Bundle Diameter (In.) | : | 3 |
| Minimum Operating Temperature (°C) | : | -20 |
Videos 1
- No
- Standards Met: UL Recognized - E141152
Packaging Details
UPC : 07498310785 GTIN Package : 00074983107858 Standard Package Volume Ft3 : 0.8359 Standard Package Weight Pounds : 5.3000 Std Package Height In : 6.8 Std Package Height MM : 172.72 Std Package Length In : 14.5 Std Package Length MM : 368.3 Std Package Width In : 14.45 Std Package Width MM : 367.03 Std. Pkg. UOM : Roll UOM EA PK : EA Std. Pkg. Qty. : 1 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Roll EAN : 00074983107858 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 63 Pallet Volume : 0.000000 Pallet Weight : 333.9000 RoHS Compliant : Compliant Specifications
Country of Origin : United States, Denmark Any Reason Not to Sell : N Product Segment : IEI Product Type : Spiral Wrap Overall Length (ft.) : 100 Minimum Bundle Diameter (mm) : 7.9 Maximum Operating Temperature (°F) : 122 Minimum Operating Temperature (°F) : -4 Wall Thickness (In.) : 0.055 Outer Diameter (mm) : 9.5 Color : Black Material : Polyethylene Environment : Indoor Application : Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing Maximum Operating Temperature (°C) : 50 Overall Length (m) : 30.48 Outer Diameter (In.) : 0.38 Resistance Properties : Abrasion-Resistant, Flame-Retardant Wall Thickness (mm) : 1.4 Maximum Bundle Diameter (mm) : 76.2 Minimum Bundle Diameter (In.) : 0.3125 Maximum Bundle Diameter (In.) : 3 Minimum Operating Temperature (°C) : -20 - Selection Guides
