T38R-CY Spiral Wrap
MFG #T38R-CY
$215.05 / E
EACH
EACH
Product Description:

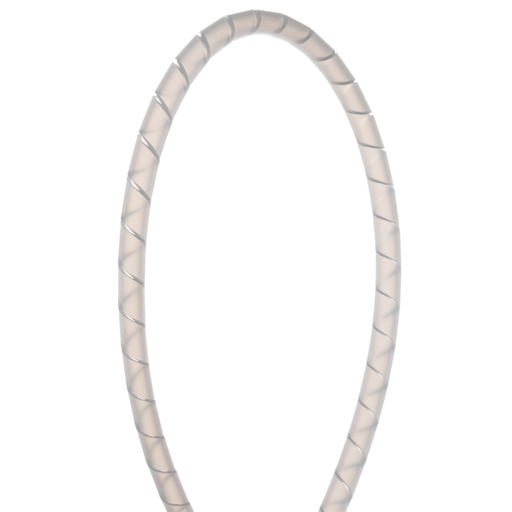

The T38R-CY Fire Resistant Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection for use with irregular shapes. Rated for use up to 122°F (50°C). 0.38" (9.5 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.3125" to 3" (7.9 mm to 76.2 mm). Color Natural.
HESCO Part Number
PANT38RCY
UPC
074983397426
Manufacturer Part Number
T38R-CY
Manufacturer
Panduit
T38R-CY Spiral Wrap
MFG #T38R-CY
Product Description:
The T38R-CY Fire Resistant Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection for use with irregular shapes. Rated for use up to 122°F (50°C). 0.38" (9.5 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.3125" to 3" (7.9 mm to 76.2 mm). Color Natural.
HESCO Part Number
PANT38RCY
UPC
074983397426
Manufacturer Part Number
T38R-CY
Manufacturer
Panduit
$215.05 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: UL Recognized E141152
- No
Packaging Details
| UPC | : | 07498339742 |
| GTIN Package | : | 00074983397426 |
| Standard Package Volume Ft3 | : | 0.8047 |
| Standard Package Weight Pounds | : | 4.3000 |
| Std Package Height In | : | 6.85 |
| Std Package Height MM | : | 173.99 |
| Std Package Length In | : | 14.6 |
| Std Package Length MM | : | 370.84 |
| Std Package Width In | : | 14.15 |
| Std Package Width MM | : | 359.41 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983397426 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 63 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 270.9000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Material | : | Polyethylene |
| Overall Length (m) | : | 30.48 |
| Minimum Bundle Diameter (mm) | : | 7.9 |
| Flammability Rating | : | UL94V-2 |
| Minimum Operating Temperature (°F) | : | -40 |
| Wall Thickness (mm) | : | 1.3 |
| Minimum Operating Temperature (°C) | : | -40 |
| Resistance Properties | : | Abrasion-Resistant, Flame-Resistant |
| Outer Diameter (mm) | : | 9.6 |
| Maximum Bundle Diameter (In.) | : | 3 |
| Application | : | (1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Minimum Bundle Diameter (In.) | : | 0.31 |
| Color | : | Natural |
| Overall Length (ft.) | : | 100 |
| Maximum Bundle Diameter (mm) | : | 76.2 |
| Product Type | : | Spiral Wrap |
| Outer Diameter (In.) | : | 0.38 |
| Maximum Operating Temperature (°F) | : | 122 |
| Wall Thickness (In.) | : | 0.05 |
| Maximum Operating Temperature (°C) | : | 50 |
Videos 1
- Standards Met: UL Recognized E141152
- No
Packaging Details
UPC : 07498339742 GTIN Package : 00074983397426 Standard Package Volume Ft3 : 0.8047 Standard Package Weight Pounds : 4.3000 Std Package Height In : 6.85 Std Package Height MM : 173.99 Std Package Length In : 14.6 Std Package Length MM : 370.84 Std Package Width In : 14.15 Std Package Width MM : 359.41 Std. Pkg. UOM : Roll UOM EA PK : EA Std. Pkg. Qty. : 1 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Roll EAN : 00074983397426 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 63 Pallet Volume : 0.000000 Pallet Weight : 270.9000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Material : Polyethylene Overall Length (m) : 30.48 Minimum Bundle Diameter (mm) : 7.9 Flammability Rating : UL94V-2 Minimum Operating Temperature (°F) : -40 Wall Thickness (mm) : 1.3 Minimum Operating Temperature (°C) : -40 Resistance Properties : Abrasion-Resistant, Flame-Resistant Outer Diameter (mm) : 9.6 Maximum Bundle Diameter (In.) : 3 Application : (1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing Minimum Bundle Diameter (In.) : 0.31 Color : Natural Overall Length (ft.) : 100 Maximum Bundle Diameter (mm) : 76.2 Product Type : Spiral Wrap Outer Diameter (In.) : 0.38 Maximum Operating Temperature (°F) : 122 Wall Thickness (In.) : 0.05 Maximum Operating Temperature (°C) : 50 - Selection Guides
