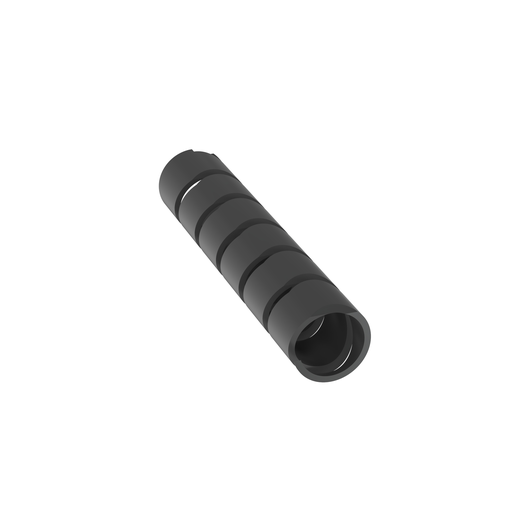

T50P-C0 Spiral Wrap, Black, UV PP, 0.375" Min Dia., PK1
MFG #T50P-C0
$372.54 / E
EACH
EACH
Product Description:
The T50P-C0 Weather Resistant Polypropylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 239°F (115°C). 0.50" (12.7 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.375" to 4" (9.5 mm to 101.6 mm). Color Black.
HESCO Part Number
PANT50PC0
UPC
074983320257
Manufacturer Part Number
T50P-C0
Manufacturer
Panduit
T50P-C0 Spiral Wrap, Black, UV PP, 0.375" Min Dia., PK1
MFG #T50P-C0
Product Description:
The T50P-C0 Weather Resistant Polypropylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 239°F (115°C). 0.50" (12.7 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.375" to 4" (9.5 mm to 101.6 mm). Color Black.
HESCO Part Number
PANT50PC0
UPC
074983320257
Manufacturer Part Number
T50P-C0
Manufacturer
Panduit
$372.54 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL Recognized - E141152; UL94HB
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Wall Thickness (In.) | : | 0.03 |
| Product Type | : | Spiral Wrap |
| Outer Diameter (In.) | : | 0.5 |
| Minimum Operating Temperature (°F) | : | -40 |
| Maximum Bundle Diameter (In.) | : | 4 |
| Overall Length (ft.) | : | 100 |
| Minimum Bundle Diameter (mm) | : | 9.5 |
| Minimum Operating Temperature (°C) | : | -40 |
| Wall Thickness (mm) | : | 0.8 |
| Resistance Properties | : | Abrasion-Resistant, Weather-Resistant |
| Material | : | Polypropylene |
| Application | : | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Overall Length (m) | : | 30.48 |
| Flammability Rating | : | UL94-HB |
| Maximum Operating Temperature (°C) | : | 115 |
| Color | : | Black |
| Environment | : | Indoor and Outdoor |
| Maximum Operating Temperature (°F) | : | 239 |
| Outer Diameter (mm) | : | 12.7 |
| Minimum Bundle Diameter (In.) | : | 0.375 |
| Maximum Bundle Diameter (mm) | : | 101.6 |
Packaging Details | ||
| UPC | : | 07498332025 |
| GTIN Package | : | 00074983320257 |
| Standard Package Volume Ft3 | : | 0.7680 |
| Standard Package Weight Pounds | : | 3.2500 |
| Std Package Height In | : | 6.95 |
| Std Package Height MM | : | 176.53 |
| Std Package Length In | : | 14.55 |
| Std Package Length MM | : | 369.57 |
| Std Package Width In | : | 14.4 |
| Std Package Width MM | : | 365.76 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983320257 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 63 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 204.7500 |
| RoHS Compliant | : | Compliant |
