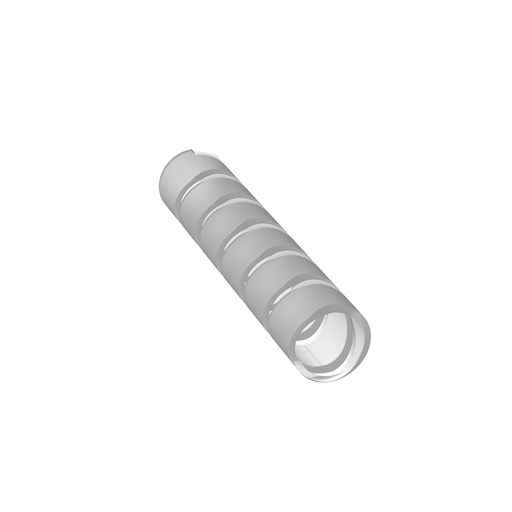

T50T-Q Spiral Wrap, Natural, UV TFE, 0.375" Min Dia., PK1
MFG #T50T-Q
$684.00 / e
EACH
EACH
Product Description:
The T50T-Q TFE Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts of single or multiple cables. Lightweight, flexible, durable protection allows for use with irregular shapes. Temperature range -454°F (-270°C) to 500°F (260°C). 0.50" (12.7 mm) diameter x 25' (7.6 m) long. Bundle Diameter Range 0.375" to 4" (9.5 mm to 101.6 mm). Color Natural.
HESCO Part Number
PANT50TQ
UPC
074983705801
Manufacturer Part Number
T50T-Q
Manufacturer
Panduit
T50T-Q Spiral Wrap, Natural, UV TFE, 0.375" Min Dia., PK1
MFG #T50T-Q
Product Description:
The T50T-Q TFE Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts of single or multiple cables. Lightweight, flexible, durable protection allows for use with irregular shapes. Temperature range -454°F (-270°C) to 500°F (260°C). 0.50" (12.7 mm) diameter x 25' (7.6 m) long. Bundle Diameter Range 0.375" to 4" (9.5 mm to 101.6 mm). Color Natural.
HESCO Part Number
PANT50TQ
UPC
074983705801
Manufacturer Part Number
T50T-Q
Manufacturer
Panduit
$684.00 / e
EACH
EACH
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL Recognized - E141152; UL94V-0
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Environment | : | Indoor and Outdoor |
| Maximum Operating Temperature (°C) | : | 260 |
| Application | : | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Color | : | Natural |
| Minimum Operating Temperature (°F) | : | -454 |
| Wall Thickness (In.) | : | 0.03 |
| Product Type | : | Spiral Wrap |
| Maximum Bundle Diameter (In.) | : | 4 |
| Flammability Rating | : | UL94V-0 |
| Material | : | TFE |
| Outer Diameter (In.) | : | 0.5 |
| Overall Length (ft.) | : | 25 |
| Minimum Bundle Diameter (In.) | : | 0.375 |
| Wall Thickness (mm) | : | 0.8 |
| Maximum Bundle Diameter (mm) | : | 101.6 |
| Minimum Operating Temperature (°C) | : | -270 |
| Resistance Properties | : | Abrasion-Resistant |
| Overall Length (m) | : | 7.62 |
| Minimum Bundle Diameter (mm) | : | 9.5 |
| Outer Diameter (mm) | : | 12.7 |
| Maximum Operating Temperature (°F) | : | 500 |
Packaging Details | ||
| UPC | : | 07498370580 |
| GTIN Package | : | 00074983705801 |
| Standard Package Volume Ft3 | : | 0.3970 |
| Standard Package Weight Pounds | : | 2.1500 |
| Std Package Height In | : | 4.35 |
| Std Package Height MM | : | 110.49 |
| Std Package Length In | : | 14.6 |
| Std Package Length MM | : | 370.84 |
| Std Package Width In | : | 14.45 |
| Std Package Width MM | : | 367.03 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983705801 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 99 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 212.8500 |
| RoHS Compliant | : | Compliant |
