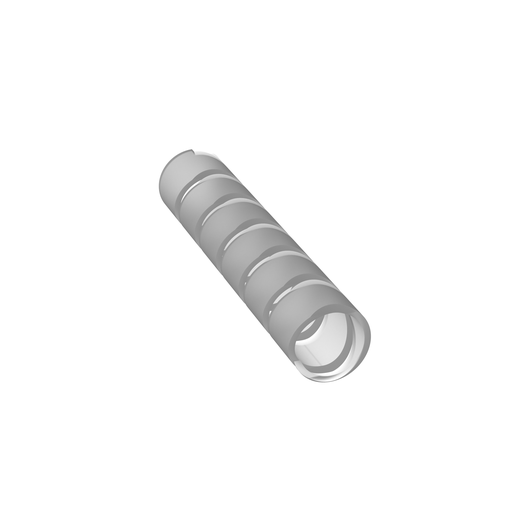

T62F-C Spiral Wrap, Natural, PE, 0.5" Min Dia., PK1
MFG #T62F-C
$250.33 / E
EACH
EACH
Product Description:
The T62F-C Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 0.62" (15.9 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.5" to 4.5" (12.7 mm to 114.3 mm). Color Natural.
HESCO Part Number
PANT62FC
UPC
074983706150
Manufacturer Part Number
T62F-C
Manufacturer
Panduit
T62F-C Spiral Wrap, Natural, PE, 0.5" Min Dia., PK1
MFG #T62F-C
Product Description:
The T62F-C Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 0.62" (15.9 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.5" to 4.5" (12.7 mm to 114.3 mm). Color Natural.
HESCO Part Number
PANT62FC
UPC
074983706150
Manufacturer Part Number
T62F-C
Manufacturer
Panduit
$250.33 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: UL Recognized - E141152; UL94HB
- No
Packaging Details
| UPC | : | 07498370615 |
| GTIN Package | : | 00074983706150 |
| Standard Package Volume Ft3 | : | 0.8359 |
| Standard Package Weight Pounds | : | 6.1500 |
| Std Package Height In | : | 6.8 |
| Std Package Height MM | : | 172.72 |
| Std Package Length In | : | 14.5 |
| Std Package Length MM | : | 368.3 |
| Std Package Width In | : | 14.45 |
| Std Package Width MM | : | 367.03 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983706150 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 63 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 387.4500 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Outer Diameter (mm) | : | 15.9 |
| Overall Length (ft.) | : | 100 |
| Maximum Operating Temperature (°F) | : | 122 |
| Wall Thickness (mm) | : | 1.6 |
| Environment | : | Indoor |
| Overall Length (m) | : | 30.48 |
| Material | : | Polyethylene |
| Wall Thickness (In.) | : | 0.062 |
| Minimum Operating Temperature (°F) | : | -40 |
| Maximum Bundle Diameter (In.) | : | 4.5 |
| Application | : | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Outer Diameter (In.) | : | 0.62 |
| Minimum Operating Temperature (°C) | : | -40 |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Color | : | Natural |
| Resistance Properties | : | Abrasion-Resistant |
| Flammability Rating | : | UL94-HB |
| Maximum Operating Temperature (°C) | : | 50 |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Product Type | : | Spiral Wrap |
| Maximum Bundle Diameter (mm) | : | 114.3 |
Videos 1
- Standards Met: UL Recognized - E141152; UL94HB
- No
Packaging Details
UPC : 07498370615 GTIN Package : 00074983706150 Standard Package Volume Ft3 : 0.8359 Standard Package Weight Pounds : 6.1500 Std Package Height In : 6.8 Std Package Height MM : 172.72 Std Package Length In : 14.5 Std Package Length MM : 368.3 Std Package Width In : 14.45 Std Package Width MM : 367.03 Std. Pkg. UOM : Roll UOM EA PK : EA Std. Pkg. Qty. : 1 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Roll EAN : 00074983706150 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 63 Pallet Volume : 0.000000 Pallet Weight : 387.4500 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Outer Diameter (mm) : 15.9 Overall Length (ft.) : 100 Maximum Operating Temperature (°F) : 122 Wall Thickness (mm) : 1.6 Environment : Indoor Overall Length (m) : 30.48 Material : Polyethylene Wall Thickness (In.) : 0.062 Minimum Operating Temperature (°F) : -40 Maximum Bundle Diameter (In.) : 4.5 Application : Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing Outer Diameter (In.) : 0.62 Minimum Operating Temperature (°C) : -40 Minimum Bundle Diameter (mm) : 12.7 Color : Natural Resistance Properties : Abrasion-Resistant Flammability Rating : UL94-HB Maximum Operating Temperature (°C) : 50 Minimum Bundle Diameter (In.) : 0.5 Product Type : Spiral Wrap Maximum Bundle Diameter (mm) : 114.3 - Selection Guides
