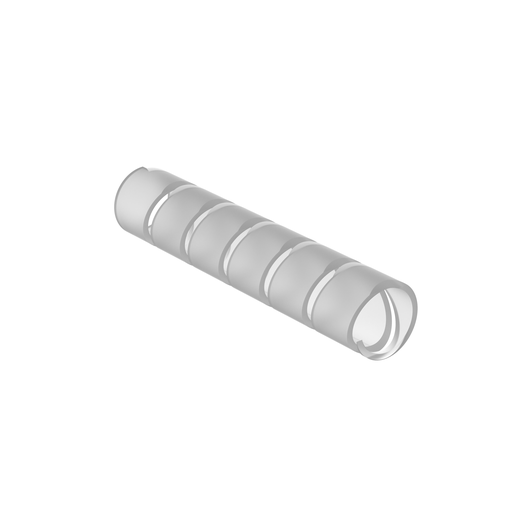

T62T-Q Spiral Wrap, Natural, UV TFE, 0.5" Min Dia., PK1
MFG #T62T-Q
$805.84 / E
EACH
EACH
Product Description:
The T62T-Q TFE Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts of single or multiple cables. Lightweight, flexible, durable protection allows for use with irregular shapes. Temperature range -454°F (-270°C) to 500°F (260°C). 0.62" (15.9 mm) diameter x 25' (7.6 m) long. Bundle Diameter Range 0.5" to 4.5" (12.7 mm to 114.3 mm). Color Natural.
HESCO Part Number
PANT62TQ
UPC
074983627851
Manufacturer Part Number
T62T-Q
Manufacturer
Panduit
T62T-Q Spiral Wrap, Natural, UV TFE, 0.5" Min Dia., PK1
MFG #T62T-Q
Product Description:
The T62T-Q TFE Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts of single or multiple cables. Lightweight, flexible, durable protection allows for use with irregular shapes. Temperature range -454°F (-270°C) to 500°F (260°C). 0.62" (15.9 mm) diameter x 25' (7.6 m) long. Bundle Diameter Range 0.5" to 4.5" (12.7 mm to 114.3 mm). Color Natural.
HESCO Part Number
PANT62TQ
UPC
074983627851
Manufacturer Part Number
T62T-Q
Manufacturer
Panduit
$805.84 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL Recognized - E141152; UL94V-0
Packaging Details
| UPC | : | 07498362785 |
| GTIN Package | : | 00074983627851 |
| Standard Package Volume Ft3 | : | 0.3970 |
| Standard Package Weight Pounds | : | 2.2000 |
| Std Package Height In | : | 4.2 |
| Std Package Height MM | : | 106.68 |
| Std Package Length In | : | 14.6 |
| Std Package Length MM | : | 370.84 |
| Std Package Width In | : | 14.3 |
| Std Package Width MM | : | 363.22 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983627851 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 99 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 217.8000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Application | : | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Minimum Bundle Diameter (mm) | : | 12.7 |
| Overall Length (ft.) | : | 25 |
| Color | : | Natural |
| Minimum Operating Temperature (°C) | : | -270 |
| Maximum Operating Temperature (°F) | : | 500 |
| Resistance Properties | : | Abrasion-Resistant |
| Material | : | TFE |
| Minimum Bundle Diameter (In.) | : | 0.5 |
| Wall Thickness (In.) | : | 0.03 |
| Environment | : | Indoor and Outdoor |
| Minimum Operating Temperature (°F) | : | -454 |
| Maximum Operating Temperature (°C) | : | 260 |
| Overall Length (m) | : | 7.62 |
| Wall Thickness (mm) | : | 0.8 |
| Maximum Bundle Diameter (mm) | : | 114.3 |
| Outer Diameter (In.) | : | 0.62 |
| Flammability Rating | : | UL94V-0 |
| Maximum Bundle Diameter (In.) | : | 4.5 |
| Outer Diameter (mm) | : | 15.9 |
| Product Type | : | Spiral Wrap |
Videos 1
- No
- Standards Met: UL Recognized - E141152; UL94V-0
Packaging Details
UPC : 07498362785 GTIN Package : 00074983627851 Standard Package Volume Ft3 : 0.3970 Standard Package Weight Pounds : 2.2000 Std Package Height In : 4.2 Std Package Height MM : 106.68 Std Package Length In : 14.6 Std Package Length MM : 370.84 Std Package Width In : 14.3 Std Package Width MM : 363.22 Std. Pkg. UOM : Roll UOM EA PK : EA Std. Pkg. Qty. : 1 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Roll EAN : 00074983627851 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 99 Pallet Volume : 0.000000 Pallet Weight : 217.8000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Application : Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing Minimum Bundle Diameter (mm) : 12.7 Overall Length (ft.) : 25 Color : Natural Minimum Operating Temperature (°C) : -270 Maximum Operating Temperature (°F) : 500 Resistance Properties : Abrasion-Resistant Material : TFE Minimum Bundle Diameter (In.) : 0.5 Wall Thickness (In.) : 0.03 Environment : Indoor and Outdoor Minimum Operating Temperature (°F) : -454 Maximum Operating Temperature (°C) : 260 Overall Length (m) : 7.62 Wall Thickness (mm) : 0.8 Maximum Bundle Diameter (mm) : 114.3 Outer Diameter (In.) : 0.62 Flammability Rating : UL94V-0 Maximum Bundle Diameter (In.) : 4.5 Outer Diameter (mm) : 15.9 Product Type : Spiral Wrap - Selection Guides
