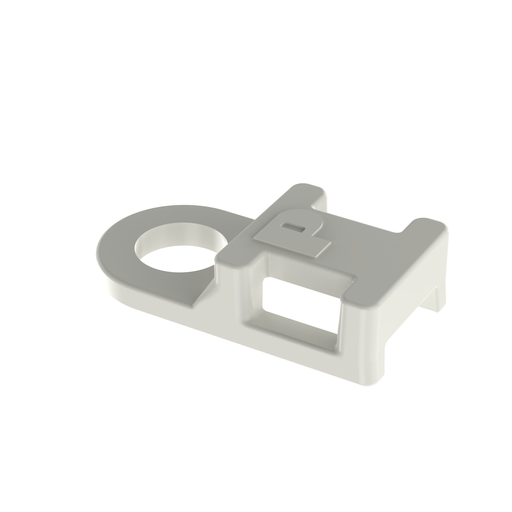

TA1S10-M Tie Anchor Mount, Natural, PA 6.6, 0.75x0.38", #10 Screw, PK1000
MFG #TA1S10-M
$0.22 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:
Panduit TA1S10-M cable tie anchor mount is a low profile and versatile screw-installed mount that is ideal for applications where space is limited. This mount has four-way cable tie entry for easy orientation of wires and cables with the option to mount in-line or perpendicular to the wire bundle. Install with a #10 (M5) screw. Use with miniature, intermediate and standard Cable Ties. For indoor use, are made of Nylon 6.6, are natural in color, and comes in packages of 1000.
HESCO Part Number
PANTA1S10M
UPC
074983580415
Manufacturer Part Number
TA1S10-M
Manufacturer
Panduit
TA1S10-M Tie Anchor Mount, Natural, PA 6.6, 0.75x0.38", #10 Screw, PK1000
MFG #TA1S10-M
Product Description:
Panduit TA1S10-M cable tie anchor mount is a low profile and versatile screw-installed mount that is ideal for applications where space is limited. This mount has four-way cable tie entry for easy orientation of wires and cables with the option to mount in-line or perpendicular to the wire bundle. Install with a #10 (M5) screw. Use with miniature, intermediate and standard Cable Ties. For indoor use, are made of Nylon 6.6, are natural in color, and comes in packages of 1000.
HESCO Part Number
PANTA1S10M
UPC
074983580415
Manufacturer Part Number
TA1S10-M
Manufacturer
Panduit
$0.22 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CE Compliant, UL Recognized E136577, RoHS Compliant
Packaging Details
| UPC | : | 07498358041 |
| GTIN Package | : | 00074983580415 |
| Standard Package Volume Ft3 | : | 0.0668 |
| Standard Package Weight Pounds | : | 0.8000 |
| Std Package Height In | : | 1.95 |
| Std Package Height MM | : | 49.53 |
| Std Package Length In | : | 9.1 |
| Std Package Length MM | : | 231.14 |
| Std Package Width In | : | 7.35 |
| Std Package Width MM | : | 186.69 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983580410 |
| Standard Carton Volume Ft3 | : | 0.3338 |
| Standard Carton Weight Pounds | : | 4.0000 |
| Std Carton Height In | : | 7.15 |
| Std Carton Height MM | : | 181.61 |
| Std Carton Length In | : | 10.85 |
| Std Carton Length MM | : | 275.59 |
| Std Carton Width In | : | 9.1 |
| Std Carton Width MM | : | 231.14 |
| Std Ctn Qty | : | 5000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983580415 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 480,000 |
| Pallet Volume | : | 32.048394 |
| Pallet Weight | : | 384.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Operating Temperature (°F) | : | -76 |
| Overall Length (In.) | : | 0.74 |
| Color | : | Natural |
| Mount Method | : | Screw-On |
| Mounting Hole Thread Size | : | #10 |
| Overall Width (mm) | : | 50.3 |
| Material | : | Nylon 6.6 |
| Environment | : | Indoor |
| Maximum Operating Temperature (°C) | : | 85 |
| Overall Height (mm) | : | 4.8 |
| Application | : | Low Profile Tie Anchor Mounts, Versatile Mount for Applications where Space is Limited |
| Overall Width (In.) | : | 0.37 |
| For Use With | : | Miniature, Intermediate, Standard Cross-Section Ties |
| Minimum Operating Temperature (°C) | : | -60 |
| Product Type | : | Cable Tie Mount |
| Overall Length (mm) | : | 18.7 |
| Overall Height (In.) | : | 0.19 |
| Maximum Operating Temperature (°F) | : | 185 |
| Material Description | : | Nylon 6.6 |
Videos 1
- No
- Standards Met: CE Compliant, UL Recognized E136577, RoHS Compliant
Packaging Details
UPC : 07498358041 GTIN Package : 00074983580415 Standard Package Volume Ft3 : 0.0668 Standard Package Weight Pounds : 0.8000 Std Package Height In : 1.95 Std Package Height MM : 49.53 Std Package Length In : 9.1 Std Package Length MM : 231.14 Std Package Width In : 7.35 Std Package Width MM : 186.69 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 1000 GTIN Carton : 50074983580410 Standard Carton Volume Ft3 : 0.3338 Standard Carton Weight Pounds : 4.0000 Std Carton Height In : 7.15 Std Carton Height MM : 181.61 Std Carton Length In : 10.85 Std Carton Length MM : 275.59 Std Carton Width In : 9.1 Std Carton Width MM : 231.14 Std Ctn Qty : 5000 Min. Order UOM : Piece EAN : 00074983580415 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1,000.0000 Pallet Quantity : 480,000 Pallet Volume : 32.048394 Pallet Weight : 384.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Minimum Operating Temperature (°F) : -76 Overall Length (In.) : 0.74 Color : Natural Mount Method : Screw-On Mounting Hole Thread Size : #10 Overall Width (mm) : 50.3 Material : Nylon 6.6 Environment : Indoor Maximum Operating Temperature (°C) : 85 Overall Height (mm) : 4.8 Application : Low Profile Tie Anchor Mounts, Versatile Mount for Applications where Space is Limited Overall Width (In.) : 0.37 For Use With : Miniature, Intermediate, Standard Cross-Section Ties Minimum Operating Temperature (°C) : -60 Product Type : Cable Tie Mount Overall Length (mm) : 18.7 Overall Height (In.) : 0.19 Maximum Operating Temperature (°F) : 185 Material Description : Nylon 6.6 - Selection Guides
Selection Guides 1
Part Drawings
Part Drawings 1Part Drawings 2 - Videos 1
