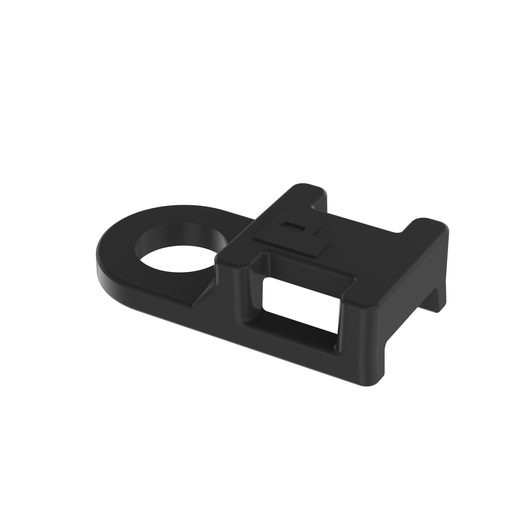

TA1S8-M30 Tie Anchor Mount, Black, High Heat PA6.6, 0.75x0.38", #8 Screw, PK1000
MFG #TA1S8-M30
$0.30 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:
Panduit TA1S8-M30 cable tie anchor mount is a low profile and versatile screw-installed mount that is ideal for applications where space is limited. This mount has four-way cable tie entry for easy orientation of wire and cables with the option to mount in-line or perpendicular to the wire bundle. Install with a #8 (M4) screw. Use with miniature, intermediate and standard Cable Ties. For indoor use, are made of Heat Stabilized Nylon 6.6, are black in color, and comes in packages of 1000.
HESCO Part Number
PANTA1S8M30
UPC
074983589999
Manufacturer Part Number
TA1S8-M30
Manufacturer
Panduit
TA1S8-M30 Tie Anchor Mount, Black, High Heat PA6.6, 0.75x0.38", #8 Screw, PK1000
MFG #TA1S8-M30
Product Description:
Panduit TA1S8-M30 cable tie anchor mount is a low profile and versatile screw-installed mount that is ideal for applications where space is limited. This mount has four-way cable tie entry for easy orientation of wire and cables with the option to mount in-line or perpendicular to the wire bundle. Install with a #8 (M4) screw. Use with miniature, intermediate and standard Cable Ties. For indoor use, are made of Heat Stabilized Nylon 6.6, are black in color, and comes in packages of 1000.
HESCO Part Number
PANTA1S8M30
UPC
074983589999
Manufacturer Part Number
TA1S8-M30
Manufacturer
Panduit
$0.30 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CE Compliant, UL Recognized E136577, RoHS Compliant
Packaging Details
| UPC | : | 07498358999 |
| GTIN Package | : | 00074983589999 |
| Standard Package Volume Ft3 | : | 0.0839 |
| Standard Package Weight Pounds | : | 0.8000 |
| Std Package Height In | : | 2.5 |
| Std Package Height MM | : | 63.5 |
| Std Package Length In | : | 8.9 |
| Std Package Length MM | : | 226.06 |
| Std Package Width In | : | 6.1 |
| Std Package Width MM | : | 154.94 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983589994 |
| Standard Carton Volume Ft3 | : | 0.4196 |
| Standard Carton Weight Pounds | : | 4.0000 |
| Std Carton Height In | : | 7.2 |
| Std Carton Height MM | : | 182.88 |
| Std Carton Length In | : | 11 |
| Std Carton Length MM | : | 279.4 |
| Std Carton Width In | : | 9.25 |
| Std Carton Width MM | : | 234.95 |
| Std Ctn Qty | : | 5000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983589999 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 480,000 |
| Pallet Volume | : | 40.283433 |
| Pallet Weight | : | 384.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Operating Temperature (°C) | : | 115 |
| Mount Method | : | Screw-On |
| Resistance Properties | : | Heat-Resistant |
| For Use With | : | Miniature, Intermediate, Standard Cross-Section Ties |
| Environment | : | Indoor |
| Overall Height (mm) | : | 4.8 |
| Product Type | : | Cable Tie Mount |
| Maximum Operating Temperature (°F) | : | 239 |
| Minimum Operating Temperature (°C) | : | -60 |
| Overall Width (In.) | : | 0.37 |
| Color | : | Black |
| Mounting Hole Thread Size | : | #8 |
| Overall Height (In.) | : | 0.19 |
| Material | : | Nylon 6.6 |
| Overall Length (mm) | : | 18.7 |
| Overall Length (In.) | : | 0.74 |
| Overall Width (mm) | : | 50.3 |
| Minimum Operating Temperature (°F) | : | -76 |
| Application | : | Low Profile Tie Anchor Mounts, Versatile Mount for Applications where Space is Limited |
| Material Properties | : | Heat-Stabilized |
| Material Description | : | Nylon 6.6 (Heat-Resistant) |
Videos 1
- No
- Standards Met: CE Compliant, UL Recognized E136577, RoHS Compliant
Packaging Details
UPC : 07498358999 GTIN Package : 00074983589999 Standard Package Volume Ft3 : 0.0839 Standard Package Weight Pounds : 0.8000 Std Package Height In : 2.5 Std Package Height MM : 63.5 Std Package Length In : 8.9 Std Package Length MM : 226.06 Std Package Width In : 6.1 Std Package Width MM : 154.94 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 1000 GTIN Carton : 50074983589994 Standard Carton Volume Ft3 : 0.4196 Standard Carton Weight Pounds : 4.0000 Std Carton Height In : 7.2 Std Carton Height MM : 182.88 Std Carton Length In : 11 Std Carton Length MM : 279.4 Std Carton Width In : 9.25 Std Carton Width MM : 234.95 Std Ctn Qty : 5000 Min. Order UOM : Piece EAN : 00074983589999 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1,000.0000 Pallet Quantity : 480,000 Pallet Volume : 40.283433 Pallet Weight : 384.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Maximum Operating Temperature (°C) : 115 Mount Method : Screw-On Resistance Properties : Heat-Resistant For Use With : Miniature, Intermediate, Standard Cross-Section Ties Environment : Indoor Overall Height (mm) : 4.8 Product Type : Cable Tie Mount Maximum Operating Temperature (°F) : 239 Minimum Operating Temperature (°C) : -60 Overall Width (In.) : 0.37 Color : Black Mounting Hole Thread Size : #8 Overall Height (In.) : 0.19 Material : Nylon 6.6 Overall Length (mm) : 18.7 Overall Length (In.) : 0.74 Overall Width (mm) : 50.3 Minimum Operating Temperature (°F) : -76 Application : Low Profile Tie Anchor Mounts, Versatile Mount for Applications where Space is Limited Material Properties : Heat-Stabilized Material Description : Nylon 6.6 (Heat-Resistant) - Selection Guides
Selection Guides 1
Part Drawings
Part Drawings 1Part Drawings 2 - Videos 1
