Panduit

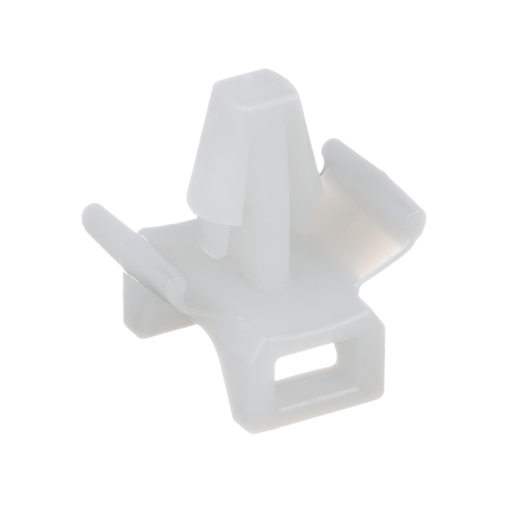

TM2PWH25-C Cable Tie Mount, Natural, PA 6.6, Push Barb, 0.71x0.61", 100PK
MFG #TM2PWH25-C
$1.00 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:
The winged push barb cable tie mount in natural color requires a 0.25" (6.5 mm) panel hole diameter. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 100.
HESCO Part Number
PANTM2PWH25C
UPC
074983222353
Manufacturer Part Number
TM2PWH25-C
Manufacturer
Panduit
Panduit
TM2PWH25-C Cable Tie Mount, Natural, PA 6.6, Push Barb, 0.71x0.61", 100PK
MFG #TM2PWH25-C
Product Description:
The winged push barb cable tie mount in natural color requires a 0.25" (6.5 mm) panel hole diameter. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 100.
HESCO Part Number
PANTM2PWH25C
UPC
074983222353
Manufacturer Part Number
TM2PWH25-C
Manufacturer
Panduit
$1.00 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: cULus 62275 Type 1, 11 (E136577), CE Compliant, RoHS Compliant
Packaging Details
| UPC | : | 07498322235 |
| GTIN Package | : | 00074983222353 |
| Standard Package Volume Ft3 | : | 0.0370 |
| Standard Package Weight Pounds | : | 0.3200 |
| Std Package Height In | : | 1.5 |
| Std Package Height MM | : | 38.1 |
| Std Package Length In | : | 5.75 |
| Std Package Length MM | : | 146.05 |
| Std Package Width In | : | 5.5 |
| Std Package Width MM | : | 139.7 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983222358 |
| Standard Carton Volume Ft3 | : | 0.1850 |
| Standard Carton Weight Pounds | : | 1.6000 |
| Std Carton Height In | : | 4.55 |
| Std Carton Height MM | : | 115.57 |
| Std Carton Length In | : | 10.25 |
| Std Carton Length MM | : | 260.35 |
| Std Carton Width In | : | 6.25 |
| Std Carton Width MM | : | 158.75 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983222353 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 159,500 |
| Pallet Volume | : | 59.008598 |
| Pallet Weight | : | 510.4000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Mount Method | : | Push Barb |
| Application | : | Push Barb Cable Tie Mounts Wing Provides Added Stability. Can Be Used Where Only One Side of the Panel is Accessible. |
| Overall Width (mm) | : | 15.5 |
| Overall Height (In.) | : | 0.72 |
| Maximum Operating Temperature (°C) | : | 85 |
| Environment | : | Indoor |
| Flammability Rating | : | UL94V-2 |
| Maximum Operating Temperature (°F) | : | 185 |
| Overall Height (mm) | : | 18.3 |
| Minimum Operating Temperature (°F) | : | -76 |
| Maximum Compatible Panel Thickness (mm) | : | 2.3 |
| Color | : | Natural |
| Minimum Loop Tensile Strength (lb) | : | 50 |
| Overall Length (In.) | : | 0.71 |
| Minimum Loop Tensile Strength (N) | : | 222 |
| Minimum Operating Temperature (°C) | : | -60 |
| Overall Length (mm) | : | 18 |
| Material | : | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | : | 0.09 |
| Overall Width (In.) | : | 0.61 |
| For Use With | : | Miniature, Intermediate, Standard Cross-Section Ties |
| Product Type | : | Cable Tie Mount |
Videos 1
- No
- Standards Met: cULus 62275 Type 1, 11 (E136577), CE Compliant, RoHS Compliant
Packaging Details
UPC : 07498322235 GTIN Package : 00074983222353 Standard Package Volume Ft3 : 0.0370 Standard Package Weight Pounds : 0.3200 Std Package Height In : 1.5 Std Package Height MM : 38.1 Std Package Length In : 5.75 Std Package Length MM : 146.05 Std Package Width In : 5.5 Std Package Width MM : 139.7 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983222358 Standard Carton Volume Ft3 : 0.1850 Standard Carton Weight Pounds : 1.6000 Std Carton Height In : 4.55 Std Carton Height MM : 115.57 Std Carton Length In : 10.25 Std Carton Length MM : 260.35 Std Carton Width In : 6.25 Std Carton Width MM : 158.75 Std Ctn Qty : 500 Min. Order UOM : Piece EAN : 00074983222353 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 500.0000 Pallet Quantity : 159,500 Pallet Volume : 59.008598 Pallet Weight : 510.4000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Mount Method : Push Barb Application : Push Barb Cable Tie Mounts Wing Provides Added Stability. Can Be Used Where Only One Side of the Panel is Accessible. Overall Width (mm) : 15.5 Overall Height (In.) : 0.72 Maximum Operating Temperature (°C) : 85 Environment : Indoor Flammability Rating : UL94V-2 Maximum Operating Temperature (°F) : 185 Overall Height (mm) : 18.3 Minimum Operating Temperature (°F) : -76 Maximum Compatible Panel Thickness (mm) : 2.3 Color : Natural Minimum Loop Tensile Strength (lb) : 50 Overall Length (In.) : 0.71 Minimum Loop Tensile Strength (N) : 222 Minimum Operating Temperature (°C) : -60 Overall Length (mm) : 18 Material : Nylon 6.6 Maximum Compatible Panel Thickness (In.) : 0.09 Overall Width (In.) : 0.61 For Use With : Miniature, Intermediate, Standard Cross-Section Ties Product Type : Cable Tie Mount - Part Drawings
Part Drawings 1
Selection GuidesSelection Guides 1 - Videos 1
