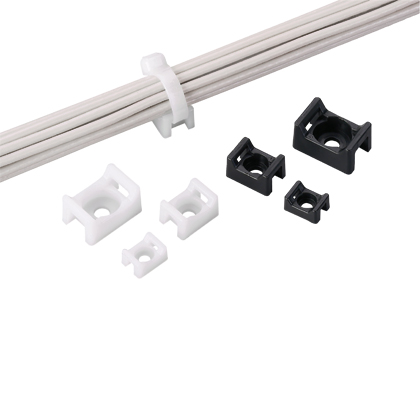

TM2S6-M69 Cable Tie Mount, Ivory, V-0 PA 6.6, 0.63x0.425", #6 Screw
MFG #TM2S6-M69
$0.55 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:
Panduit's TM2S6-M69 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, offering maximum stability for cable bundles. The mounts are made of Flame Retardant Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They can easiliy be installed with a #6 (M3) screw. These mounts are for indoor use and can be used with miniature, intermediate and standard cable ties. They are .63" long x .425" wide (16mm x 10.7mm), ivory in color, and come in packages of 1000.
HESCO Part Number
PANTM2S6M69
UPC
074983248032
Manufacturer Part Number
TM2S6-M69
Manufacturer
Panduit
TM2S6-M69 Cable Tie Mount, Ivory, V-0 PA 6.6, 0.63x0.425", #6 Screw
MFG #TM2S6-M69
Product Description:
Panduit's TM2S6-M69 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, offering maximum stability for cable bundles. The mounts are made of Flame Retardant Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They can easiliy be installed with a #6 (M3) screw. These mounts are for indoor use and can be used with miniature, intermediate and standard cable ties. They are .63" long x .425" wide (16mm x 10.7mm), ivory in color, and come in packages of 1000.
HESCO Part Number
PANTM2S6M69
UPC
074983248032
Manufacturer Part Number
TM2S6-M69
Manufacturer
Panduit
$0.55 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant
- No
Packaging Details
| UPC | : | 07498324803 |
| GTIN Package | : | 00074983248032 |
| Standard Package Volume Ft3 | : | 0.1274 |
| Standard Package Weight Pounds | : | 1.5000 |
| Std Package Height In | : | 2.75 |
| Std Package Height MM | : | 69.85 |
| Std Package Length In | : | 9.65 |
| Std Package Length MM | : | 245.11 |
| Std Package Width In | : | 6.85 |
| Std Package Width MM | : | 173.99 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983248037 |
| Standard Carton Volume Ft3 | : | 0.6370 |
| Standard Carton Weight Pounds | : | 7.5000 |
| Std Carton Height In | : | 8.85 |
| Std Carton Height MM | : | 224.79 |
| Std Carton Length In | : | 11 |
| Std Carton Length MM | : | 279.4 |
| Std Carton Width In | : | 9.1 |
| Std Carton Width MM | : | 231.14 |
| Std Ctn Qty | : | 5000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983248032 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 360,000 |
| Pallet Volume | : | 45.861222 |
| Pallet Weight | : | 540.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Length (In.) | : | 0.63 |
| Color | : | Ivory |
| Overall Height (mm) | : | 7 |
| Environment | : | Indoor |
| Overall Width (mm) | : | 10.7 |
| Mount Method | : | Screw-On |
| Minimum Operating Temperature (°C) | : | -60 |
| Minimum Loop Tensile Strength (lb) | : | 50 |
| Product Type | : | Cable Tie Mount |
| For Use With | : | Miniature, Intermediate, Standard Cross-Section Ties |
| Overall Length (mm) | : | 16 |
| Minimum Operating Temperature (°F) | : | -76 |
| Minimum Loop Tensile Strength (N) | : | 222 |
| Flammability Rating | : | UL94V-0 |
| Overall Height (In.) | : | 0.27 |
| Overall Width (In.) | : | 0.42 |
| Material | : | Nylon 6.6 |
| Resistance Properties | : | Flame-Retardant |
| Maximum Operating Temperature (°F) | : | 212 |
| Mounting Hole Thread Size | : | #6 |
| Maximum Operating Temperature (°C) | : | 100 |
| Application | : | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Material Description | : | Nylon 6.6 (Flame-Retardant) |
