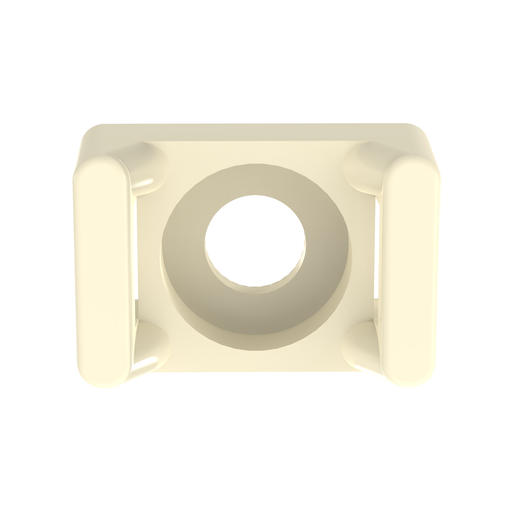

TM2S8-M69 Cable Tie Mount, Ivory, V-0 PA 6.6, 0.63x0.425", #8 Screw
MFG #TM2S8-M69
$0.48 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:
Panduit's TM2S8-M69 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, offering maximum stability for cable bundles. The mounts are made of Flame Retardant Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They can easiliy be installed with a #8 (M4) screw. These mounts are for indoor use and can be used with miniature, intermediate and standard cable ties. They are .63" long x .425" wide (16mm x 10.7mm), ivory in color, and come in packages of 1000.
HESCO Part Number
PANTM2S8M69
UPC
074983248049
Manufacturer Part Number
TM2S8-M69
Manufacturer
Panduit
TM2S8-M69 Cable Tie Mount, Ivory, V-0 PA 6.6, 0.63x0.425", #8 Screw
MFG #TM2S8-M69
Product Description:
Panduit's TM2S8-M69 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, offering maximum stability for cable bundles. The mounts are made of Flame Retardant Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They can easiliy be installed with a #8 (M4) screw. These mounts are for indoor use and can be used with miniature, intermediate and standard cable ties. They are .63" long x .425" wide (16mm x 10.7mm), ivory in color, and come in packages of 1000.
HESCO Part Number
PANTM2S8M69
UPC
074983248049
Manufacturer Part Number
TM2S8-M69
Manufacturer
Panduit
$0.48 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CE Compliant, UL Recognized:E136577, RoHS Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Environment | : | Indoor |
| Maximum Operating Temperature (°C) | : | 100 |
| Application | : | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Overall Width (In.) | : | 0.43 |
| Minimum Operating Temperature (°C) | : | -60 |
| Overall Height (In.) | : | 0.27 |
| Overall Length (mm) | : | 16 |
| Overall Length (In.) | : | 0.63 |
| Overall Height (mm) | : | 7 |
| Product Type | : | Cable Tie Mount |
| Minimum Operating Temperature (°F) | : | -76 |
| For Use With | : | Miniature, Intermediate, Standard Cross-Section Ties |
| Overall Width (mm) | : | 10.8 |
| Maximum Operating Temperature (°F) | : | 212 |
| Mount Method | : | Screw-On |
| Color | : | Ivory |
| Material | : | Nylon 6.6 |
| Mounting Hole Thread Size | : | #8 |
| Resistance Properties | : | Flame-Retardant |
| Material Description | : | Nylon 6.6 (Flame-Retardant) |
Packaging Details | ||
| UPC | : | 07498324804 |
| GTIN Package | : | 00074983248049 |
| Standard Package Volume Ft3 | : | 0.1334 |
| Standard Package Weight Pounds | : | 1.4000 |
| Std Package Height In | : | 2.85 |
| Std Package Height MM | : | 72.39 |
| Std Package Length In | : | 9.85 |
| Std Package Length MM | : | 250.19 |
| Std Package Width In | : | 7.6 |
| Std Package Width MM | : | 193.04 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983248044 |
| Standard Carton Volume Ft3 | : | 0.6669 |
| Standard Carton Weight Pounds | : | 7.0000 |
| Std Carton Height In | : | 8.85 |
| Std Carton Height MM | : | 224.79 |
| Std Carton Length In | : | 11.1 |
| Std Carton Length MM | : | 281.94 |
| Std Carton Width In | : | 9.1 |
| Std Carton Width MM | : | 231.14 |
| Std Ctn Qty | : | 5000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983248049 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 360,000 |
| Pallet Volume | : | 48.018880 |
| Pallet Weight | : | 504.0000 |
| RoHS Compliant | : | Compliant |
