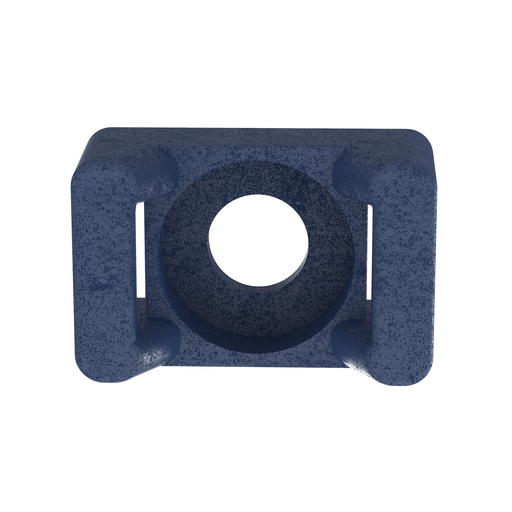

TM3S10-C186 Cable Tie Mount, DkBlue, Met Det PP, 0.87x0.62", #10 Screw, PK100
MFG #TM3S10-C186
$1.17 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:
Panduit TM3S10-C186 Metal Detectable screw applied cable mounts allow identification by metal detection equipment to help meet food, beverage, and pharmaceutical safety standards. The mounts provide maximum stability and keep cables bundle close to mounting surface. For use with #10 (M5) screw and Standard or Light-Heavy standard cross section cable ties. They are 0.614" (15.6mm) wide and designed for indoor use. Made of Metal Detectable Polypropylene, are dark blue in color, and come in packages of 100.
HESCO Part Number
PANTM3S10C186
UPC
074983115112
Manufacturer Part Number
TM3S10-C186
Manufacturer
Panduit
TM3S10-C186 Cable Tie Mount, DkBlue, Met Det PP, 0.87x0.62", #10 Screw, PK100
MFG #TM3S10-C186
Product Description:
Panduit TM3S10-C186 Metal Detectable screw applied cable mounts allow identification by metal detection equipment to help meet food, beverage, and pharmaceutical safety standards. The mounts provide maximum stability and keep cables bundle close to mounting surface. For use with #10 (M5) screw and Standard or Light-Heavy standard cross section cable ties. They are 0.614" (15.6mm) wide and designed for indoor use. Made of Metal Detectable Polypropylene, are dark blue in color, and come in packages of 100.
HESCO Part Number
PANTM3S10C186
UPC
074983115112
Manufacturer Part Number
TM3S10-C186
Manufacturer
Panduit
$1.17 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant
- No
Specifications
| Country of Origin | : | Costa Rica |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Flammability Rating | : | UL94-HB |
| Overall Height (mm) | : | 9.5 |
| Mounting Hole Thread Size | : | #10 |
| For Use With | : | Standard, Light Heavy Cross-Section Ties |
| Minimum Operating Temperature (°F) | : | -40 |
| Color | : | Dark Blue |
| Mount Method | : | Screw-On |
| Overall Length (In.) | : | 0.87 |
| Maximum Operating Temperature (°F) | : | 239 |
| Overall Width (In.) | : | 0.61 |
| Material | : | Polypropylene |
| Product Type | : | Cable Tie Mount |
| Overall Width (mm) | : | 50.3 |
| Overall Length (mm) | : | 22 |
| Resistance Properties | : | Chemical-Resistant |
| Maximum Operating Temperature (°C) | : | 115 |
| Overall Height (In.) | : | 0.37 |
| Environment | : | Indoor |
| Application | : | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Minimum Operating Temperature (°C) | : | -40 |
| Material Properties | : | Metal-Impregnated |
| Material Description | : | Polypropylene (Chemical-Resistant) |
Packaging Details | ||
| UPC | : | 07498311511 |
| GTIN Package | : | 00074983115112 |
| Standard Package Volume Ft3 | : | 0.0568 |
| Standard Package Weight Pounds | : | 0.4100 |
| Std Package Height In | : | 1.4 |
| Std Package Height MM | : | 35.56 |
| Std Package Length In | : | 7.9 |
| Std Package Length MM | : | 200.66 |
| Std Package Width In | : | 5.8 |
| Std Package Width MM | : | 147.32 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983115117 |
| Standard Carton Volume Ft3 | : | 0.2839 |
| Standard Carton Weight Pounds | : | 2.0500 |
| Std Carton Height In | : | 4.4 |
| Std Carton Height MM | : | 111.76 |
| Std Carton Length In | : | 10.35 |
| Std Carton Length MM | : | 262.89 |
| Std Carton Width In | : | 10.2 |
| Std Carton Width MM | : | 259.08 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983115112 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 88,000 |
| Pallet Volume | : | 49.963953 |
| Pallet Weight | : | 360.8000 |
| RoHS Compliant | : | Compliant |
