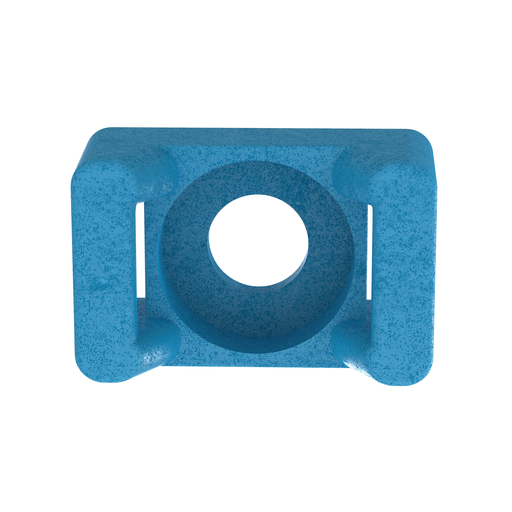

TM3S10-C76 Cable Tie Mount, Aqua, ETFE, 0.86x0.61", #10 Screw, PK100
MFG #TM3S10-C76
$2.03 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
Panduit TM3S10-C76 Cable Tie Mounts are designed for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme temperatures. Ideal for use in nuclear power facilities and chemical processing plants. These mounts can be used with Standard and Llight-Heavy cross section cable ties. Use with #10 (M5) screws. For indoor or outdoor use, made of Tefzel, are aqua in color, and come in packages of 100.
HESCO Part Number
PANTM3S10C76
UPC
074983582754
Manufacturer Part Number
TM3S10-C76
Manufacturer
Panduit
TM3S10-C76 Cable Tie Mount, Aqua, ETFE, 0.86x0.61", #10 Screw, PK100
MFG #TM3S10-C76
Product Description:
Panduit TM3S10-C76 Cable Tie Mounts are designed for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme temperatures. Ideal for use in nuclear power facilities and chemical processing plants. These mounts can be used with Standard and Llight-Heavy cross section cable ties. Use with #10 (M5) screws. For indoor or outdoor use, made of Tefzel, are aqua in color, and come in packages of 100.
HESCO Part Number
PANTM3S10C76
UPC
074983582754
Manufacturer Part Number
TM3S10-C76
Manufacturer
Panduit
$2.03 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CE Compliant, UL Recognized:E136577, RoHS Compliant
Packaging Details
| UPC | : | 07498358275 |
| GTIN Package | : | 00074983582754 |
| Standard Package Volume Ft3 | : | 0.0546 |
| Standard Package Weight Pounds | : | 0.8267 |
| Std Package Height In | : | 1.95 |
| Std Package Height MM | : | 49.53 |
| Std Package Length In | : | 5.7 |
| Std Package Length MM | : | 144.78 |
| Std Package Width In | : | 5.3 |
| Std Package Width MM | : | 134.62 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983582759 |
| Standard Carton Volume Ft3 | : | 0.2728 |
| Standard Carton Weight Pounds | : | 4.1337 |
| Std Carton Height In | : | 4.4 |
| Std Carton Height MM | : | 111.76 |
| Std Carton Length In | : | 10.35 |
| Std Carton Length MM | : | 262.89 |
| Std Carton Width In | : | 10.2 |
| Std Carton Width MM | : | 259.08 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983582754 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 88,000 |
| Pallet Volume | : | 48.005630 |
| Pallet Weight | : | 727.5224 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Costa Rica |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Width (mm) | : | 15.5 |
| Mounting Hole Thread Size | : | #10 |
| Overall Length (mm) | : | 21.7 |
| Overall Height (mm) | : | 9.5 |
| Mount Method | : | Screw-On |
| Flammability Rating | : | UL94V-0 |
| For Use With | : | Standard, Light Heavy Cross-Section Ties |
| Application | : | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Minimum Operating Temperature (°F) | : | -76 |
| Resistance Properties | : | Chemical-Resistant, UV-Resistant, Weather-Resistant |
| Environment | : | Indoor |
| Maximum Operating Temperature (°C) | : | 170 |
| Overall Width (In.) | : | 0.61 |
| Color | : | Aqua |
| Overall Length (In.) | : | 0.86 |
| Maximum Operating Temperature (°F) | : | 338 |
| Overall Height (In.) | : | 0.37 |
| Minimum Operating Temperature (°C) | : | -60 |
| Product Type | : | Cable Tie Mount |
| Material | : | ETFE |
| Material Description | : | ETFE (Chemical-Resistant, UV-Resistant, Weather-Resistant) |
